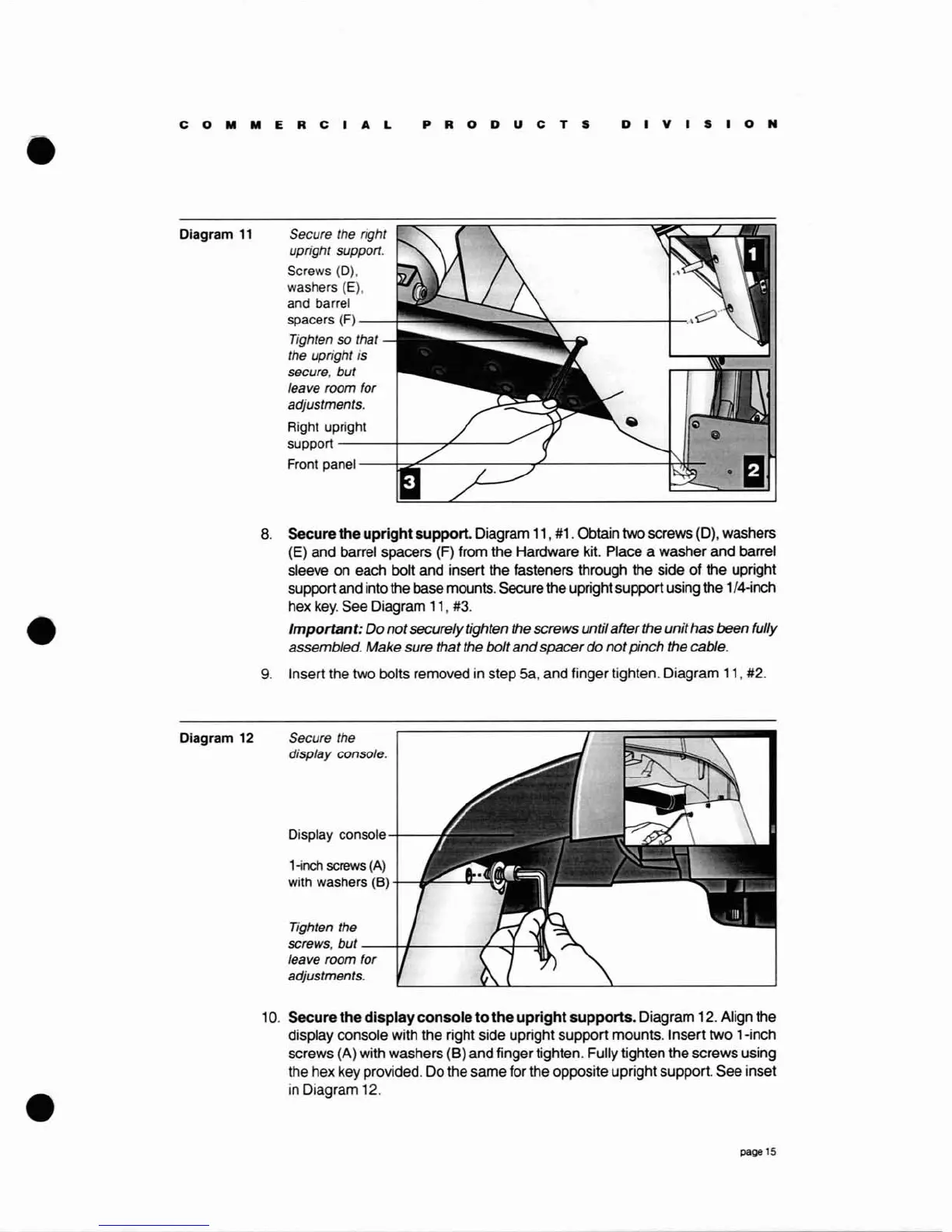

Diagram
11
Diagram 12
Secure the right
upright support.
Screws (D),
washers
(E),
and barrel
spacers (F)
--+=
~
.....
Tighten so that
the upright is
secure, but
leave room for
adjustments.
Right upright
support
---4-----,,,L----
Front
panel--+-::.,.L..---------.'L-------~~
8.
Secure the upright support. Diagram 11, #1. Obtain two screws (D), washers
(E) and barrel spacers (F) from the Hardware kit. Place a washer and barrel
sleeve on each bolt and insert the fasteners through the side of the upright
support and into the base mounts. Secure the upright support using the 1/4-inch
hex
key.
See Diagram
11
, #3.
Important:
Do
not
securely tighten the screws untilafterthe unithasbeen fully
assembled. Make sure thatthe bolt
and
spacerdo
not
pinch the cable.
9.
Insert the two bolts removed in step 5a, and finger tighten. Diagram 11, #2.
Secure the
display console.
Display
console4---
1-inch
screws
(A)
with washers (8)
Tighten the
screws, but
----1I-1----~
.........
f___:111\
leave room for
adjustments.
10. Secure the display console
to
the
upright
supports. Diagram 12. Align the
display console with the right side upright support mounts. Insert two 1-inch
screws (A) with washers
(8)
and finger tighten. Fully tighten the screws using
the hex key provided. Do the same for the opposite upright support. See inset
in Diagram 12.
page
15
