14. Connect the RJ45 cable into its black receptacle. Diagram 8, #1. Just like a
telephone connection, a definite “click” is heard when a good connection is
made. If you do not hear a “click,” try reinserting the cable connection again.
15. Connect the lift motor cable. Diagram 8, #2
16. Push excess cable inside base tube. Diagram 8, #3. Carefully, push any excess
cable behind the height adjuster threads that protrude from inside the base tube.

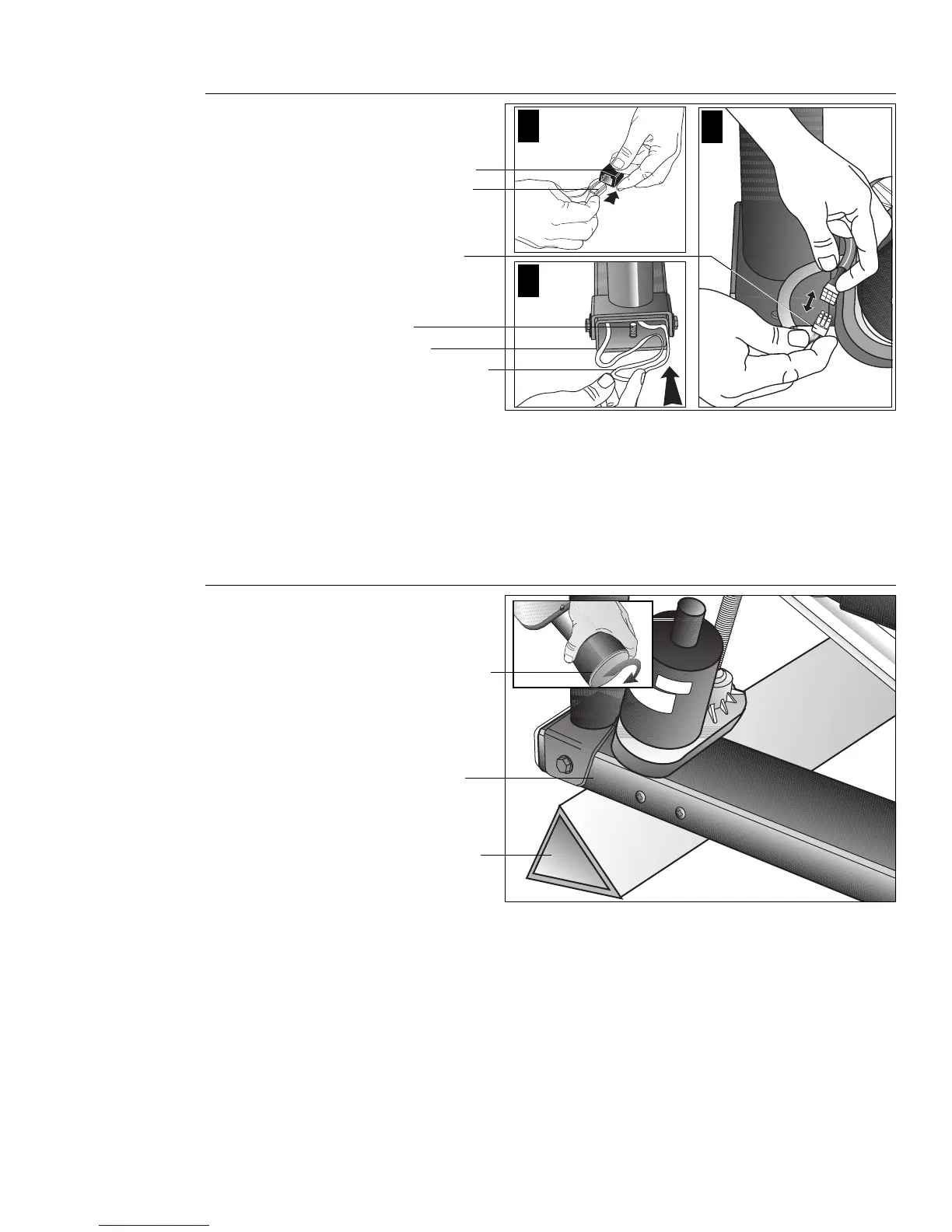

Diagram 8 Connect the
cables.
Cable connector
Cable receptacle
Place excess cable
into the base
assembly.
Height adjuster
threads
Base tube
Lift motor cable
2
1
3
Diagram 9 Place the base
on supportive
blocks.
Adjustable rear pad
Supportive wedge
Base assembly
17. Rotate the rear pads. Diagram 9, inset. Ask your assistant to stabilize the unit
while you rotate the rear adjustable feet to the highest position. This procedure
lifts the base assembly off the floor which provides better access to the fasteners.
18. Support the front of the unit with packing material. Diagram 9. Have an
assistant lift the upright support so that you can slide a wedge of packing
material under the front of the unit.

Precor EFX5.21i Specifications

Power

power	120 VAC (50/60 Hz)

Performance

cross ramp	13 to 30 degrees (adjustable)
stride length	18 inches (46 cm)
resistance levels	1 through 20

Weight and Dimensions

length	80 inches (203 cm)
width	32 inches (81 cm); 18 inches (45 cm) with siderails
height	61 inches (155 cm)
weight	197 lbs (89 kg)
shipping weight	245 lbs (111 kg)
