page 16

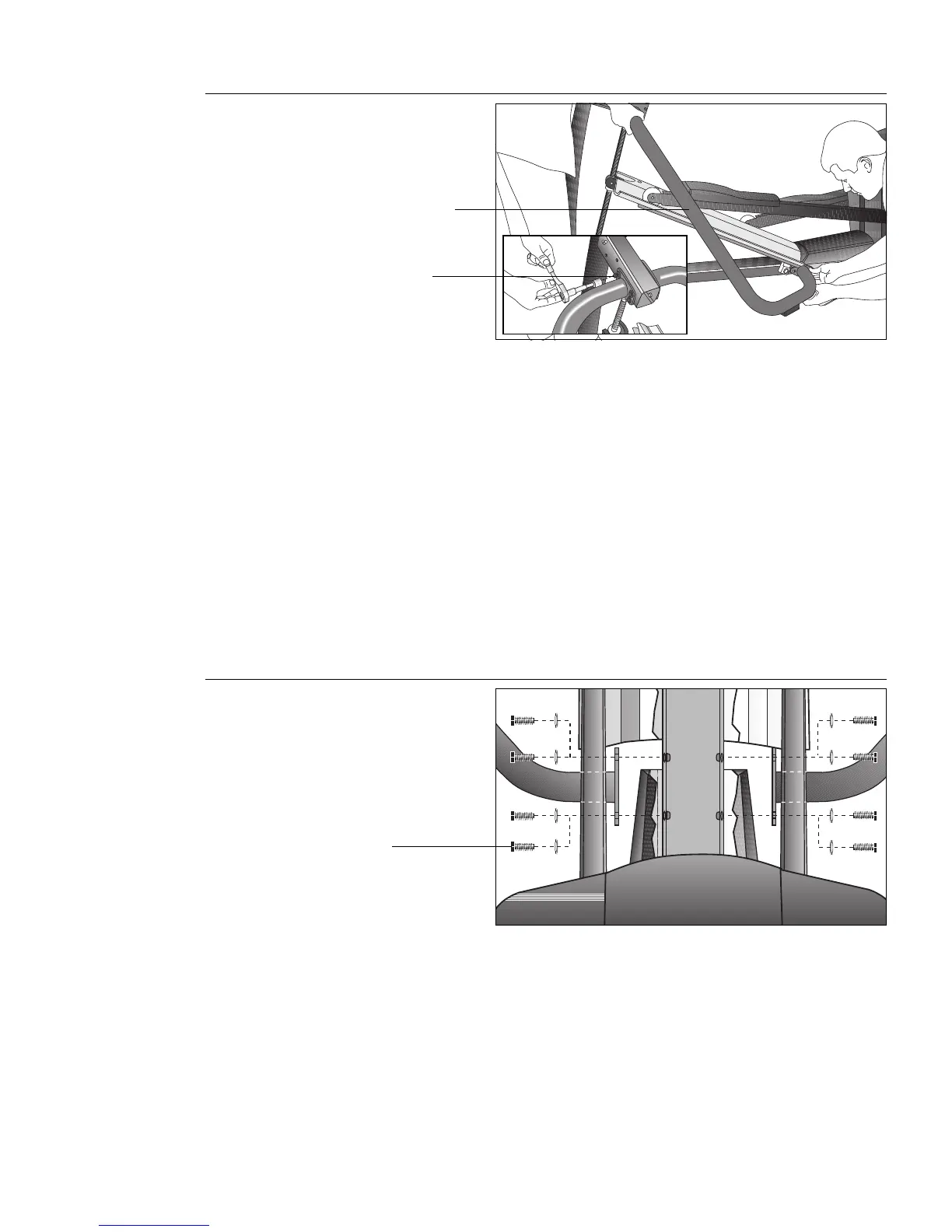

Diagram 10
Attach the frame
stabilizers to the
upright support
bracket and base
tube.
19. Attach the left and right frame stabilizers. Diagram 10. Take the following
steps to install the frame stabilizers onto the base assembly.
Note: Proceed with one side at a time. When you have installed the first stabi-
lizer, perform the same steps on the opposite stabilizer.
a. Remove four bolts (F) and four washers (G) from the Hardware kit. Place a
washer on each bolt and set the fasteners within easy reach of the unit.
b. Grasp one of the frame stabilizers and align it with the upright support
bracket. Have your assistant hold it in place.
c. Insert the four bolts (F) with washers (G) through the frame stabilizer and
upright support bracket. See Diagram 10.
d. Thread all four bolts and washers until the frame stabilizer is secure. Do not
fully tighten the bolts until after the lower section is attached to the base
assembly.
e. Perform steps a through d on the opposite side.
Diagram 11
Attach the lower
frame stabilizers
to the base
assembly.
Bolts
f. Carefully align the mounting holes on the right and left frame stabilizer with
the base frame holes. Insert four bolts (F) and washers (G) on both sides.
Thread the bolts through the unit. See Diagram 11.
g. Tighten the bolts so that the unit is stable, but leave room for final adjustments.
Do not securely tighten the bolts until the unit has been fully assembled.
Frame stabilizer
Bolts (F) and
washers (G)
