4. Remove the wood brace. Diagram 4. Remove and discard the wood brace from
the front base tube.
5. Thread the height adjustor to its lowest position. Diagram 4, #2 and #3. Ask
an assistant to lift the front base tube while you turn the height adjustor in a
direction that would lower the front of the assembly. Tighten the nut when the
height adjustor is fully threaded into the front base tube.
6. Cut the tie wrap holding the plastic grommet. Diagram 4, #4. Use a wire cutter
(or scissors) to remove the plastic grommet from the RJ45 cable.

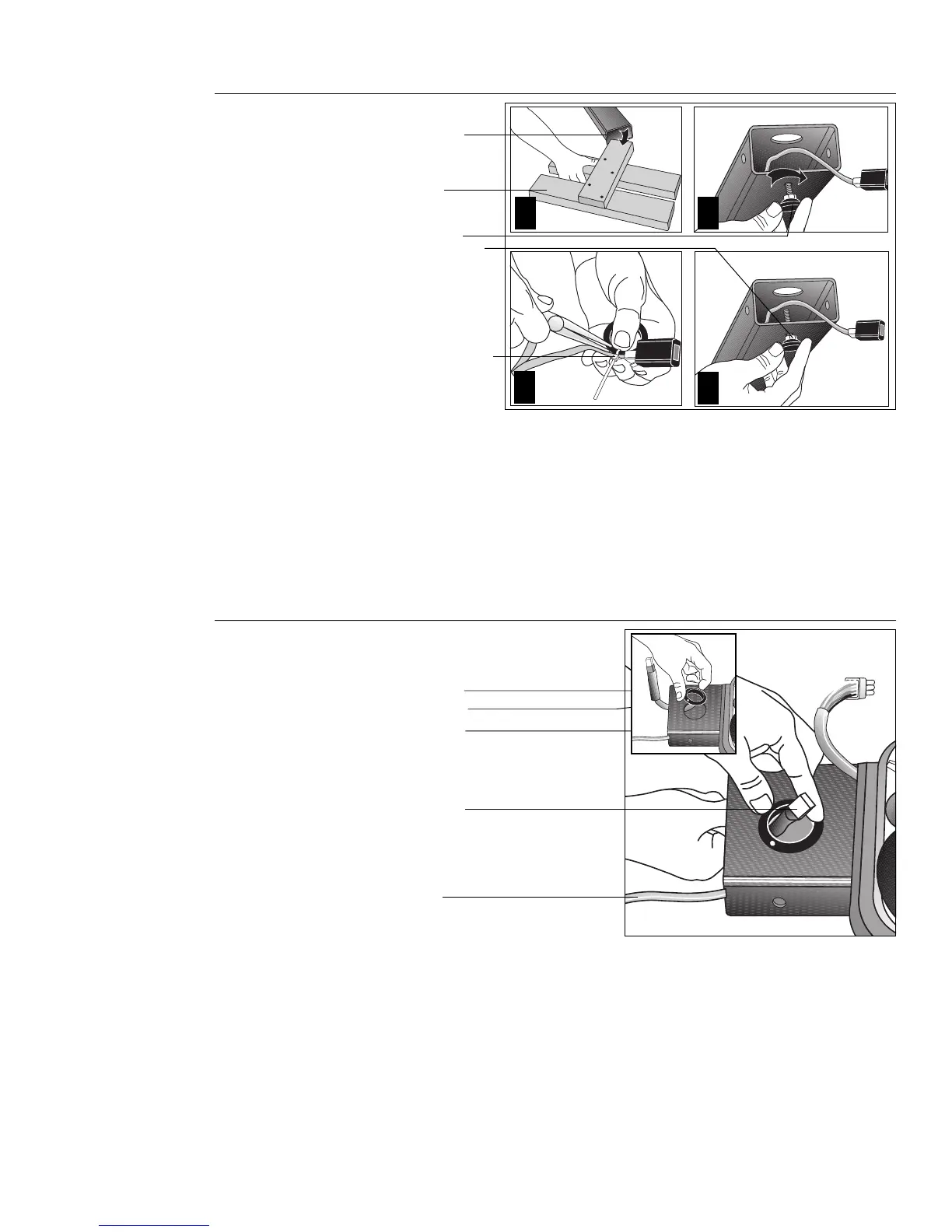

Diagram 4
Front base assembly.
Wood brace
Cut the tie wrap that
secures the grommet
to the cable.
Height adjustor
2
1
3
4
Tighten the height
adjustor so that the
nut is secure against
the front tube.
Diagram 5
Insert grommet and route
lift motor cable.
Plastic grommet
Lift motor cable
7. Insert the plastic grommet. Diagram 5. Press down on the grommet so that it
snaps into place. Thread the lift motor cable through the grommet.
RJ45 Cable
CAUTION: Grease on the lift screw can
stain clothing.
Note: The lift motor
and screw are not
shown in these
illustrations.
Front base tube
Front base tube
Lift motor cable

Precor EFX5.23 Specifications

Power

voltage	120 V
frequency	50/60Hz
current	4.0 Amps

Incline and Programs

incline range	13 to 35 degrees
manual course	Included
cross training interval course	Included

Weight and Dimensions

length	79 inches (201 cm)
width	32 inches (81 cm)
height	63 inches (160 cm)
weight	183 lbs. (82 kg)
