Begin assembly, continued
1. Rewire the treadmill (see Figure 4) using the following console cables:
— Ethernet
— TV (coaxial)
— Power
Fig
ure 4
2. Partially tighten the fairing to the upright supports on both sides using six screws
and six washers for each side (see Figure 5). Make sure the fairing is no
t
e
xternally supported.
Important DO NOT wrench tighten the fasteners in the above step until the unit has
been fully assembled. Make sure the cables are not pinched between any fasteners and the
body of the unit, or between the arm covers and the upright supports. The Precor Limited
Warranty does not cover cables damaged by improper installation.

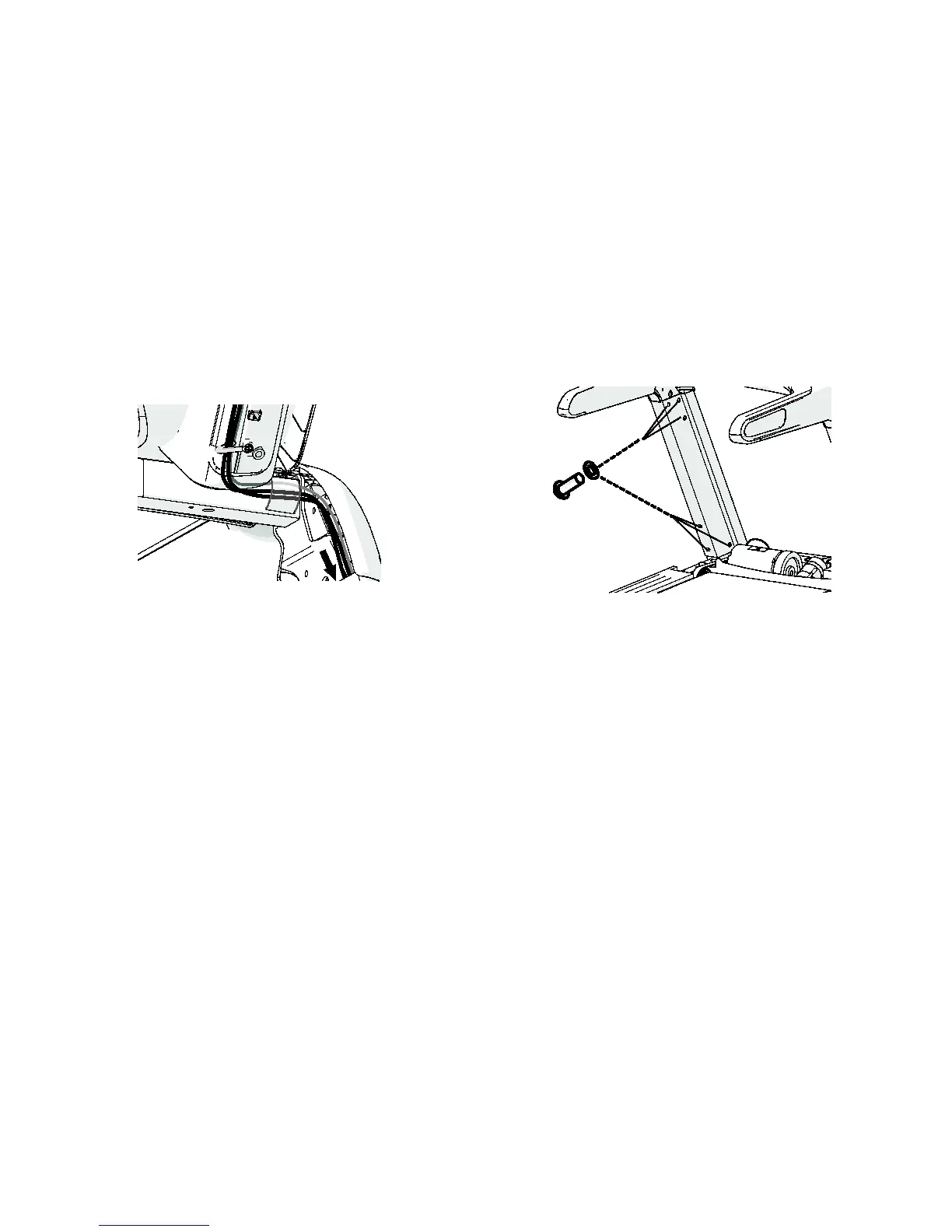

Figure 5
(one side shown)
4
