Begin assembly
1. After unpacking, follow the ramp assembly instructions (included) on how to
build and use a ramp to safely and securely roll the treadmill base off the
shipping pallet.
Important Make sure the treadmill is sitting on the ground.
2. Remove the hood off the treadmill base and set aside.

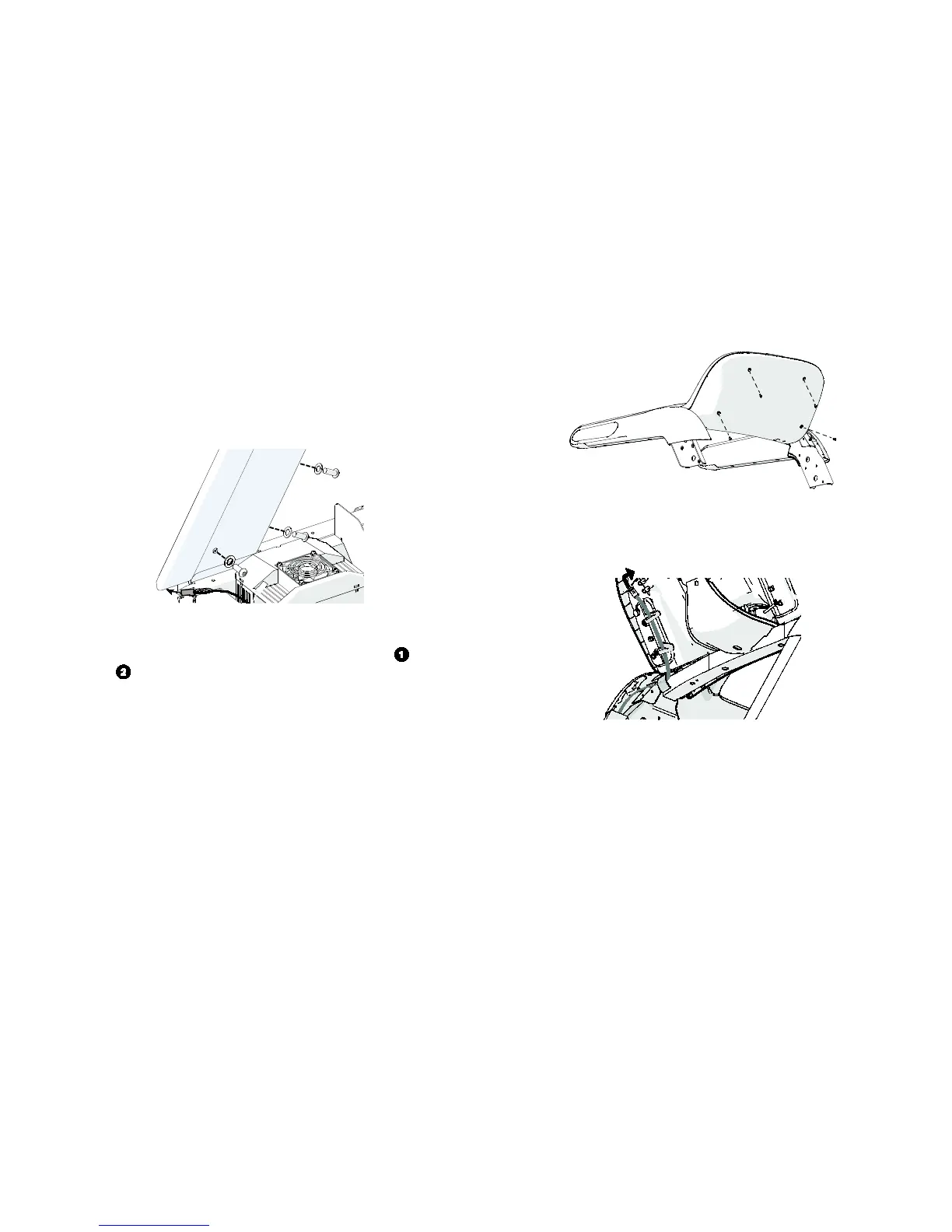

3. Place the upright support (right side) onto its base frame side bracket. Route the
data cable from the treadmill drive unit through the smaller channel opening i
n
the
upright support, from bottom to top (see Figure 1).
Fig
ure 1
4. Secure the upright support to its side bracket using three screws and three
washers . Partially tighten the fasteners using a 7/32-inch hex wrench.
5. Repeat Step 4 to attach the other upright support on the right.
6. L
ower the treadmill back (dash assembly) over the upright supports, the
n
r
emove the dash cover (see Figure 2).
Fig
ure 2
7. Route the data cable, as shown, securing it behind each cable clip (see Figure 3).
Ensure there is enough cable to reach the top right of the console.
Fig
ure 3
