Install the accessory jack panel

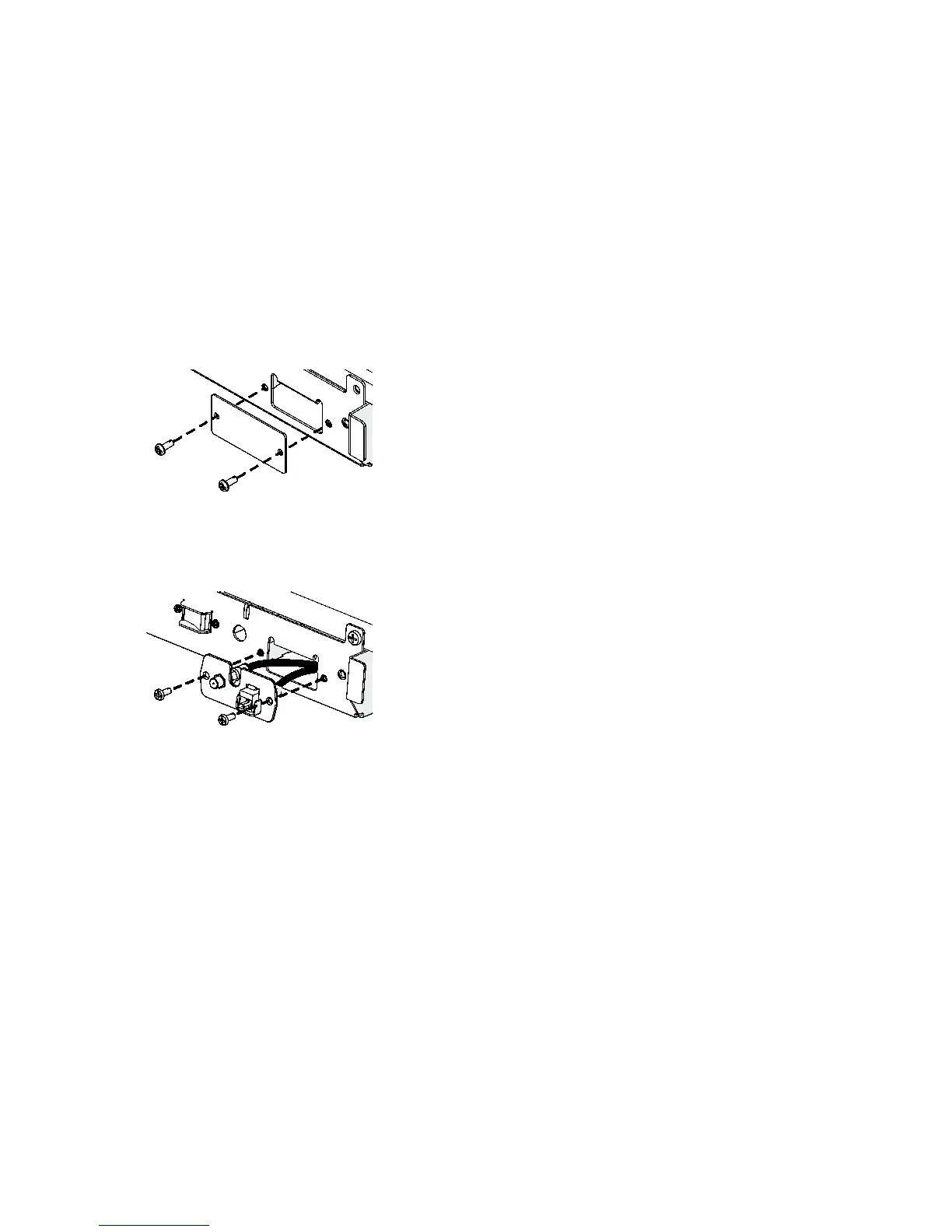

1. Remove the screws securing the blank plate at the right-front corner of the
treadmill (see Figure 8). Discard the blank plate.
Fig
ure 8
2. Thread the cable assembly down through the channel in the upright support
on
y
our right (see Figure 9). Drape excess cable over the inside edge of the support
and tape into place, if necessary.
Fig
ure 9
3. P
ass the lower end of the TV cable through the right-hand grommet, and insert
it
in
to the connector inside the jack panel. Use a 7/16-inch torque wrench t
o
tig
hten the connectors to 30 in-lb.
4. Pass the lower end of the Ethernet cable through the right-hand grommet and
snap it into the eight-pin coupler in the jack panel.
5. Fit the lower ends of any optional console cables into the notch in the upper edge
of the jack panel.
6. Replace the panel and fully tighten the corresponding screws.
