Diagnostics menu access
Steps
1. Make sure the console is set to the Welcome banner.

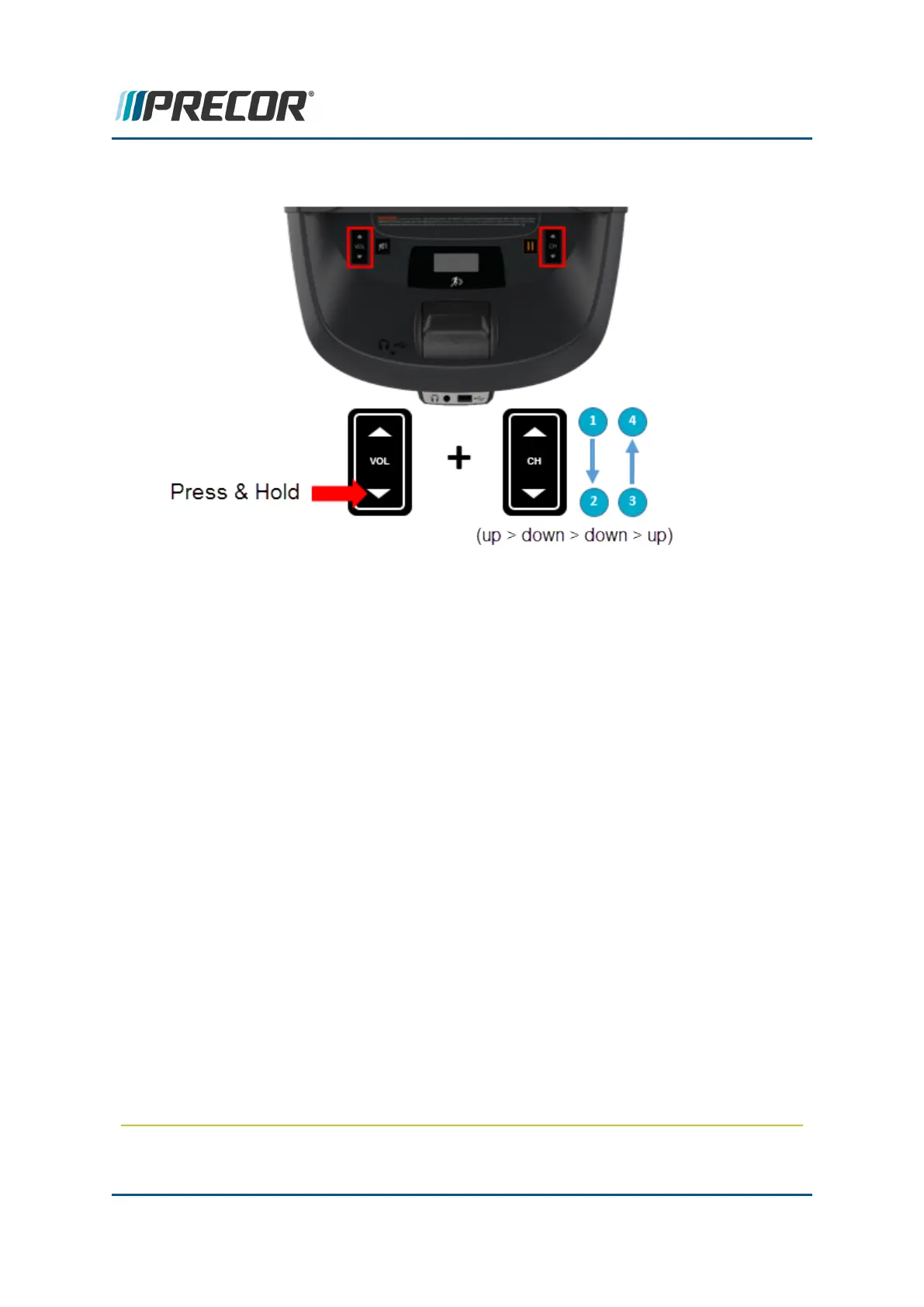

2. Press and hold the VOL down key while pressing CH up >CH down > CH down > CH
up:
3. At the Sign-In screen, type in the service access code.
Touchscreen Calibration shortcut
Console shortcut to access the Touchscreen Calibration test.
Steps
1. Make sure the console is set to the Welcome banner.
2. Press and hold the VOL down hardkey while pressing CH up > Pause > Pause > CH
up:
3. Touch the designated display positions and follow prompts to complete the touchscreen
calibration.
Debug Information Report shortcut
Console shortcut to download an event log debug information report.
Steps
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 16
4 Standard Service Menus
How to Access the Service Menus
