Power Control Module Replacement
About
This procedure provides instruction to remove and replace the Power Control Module (IFT
1
Drive).
Procedure
Review entire procedure before starting
1. Switch the input power OFF and remove power cord.
2. Remove the front hood.

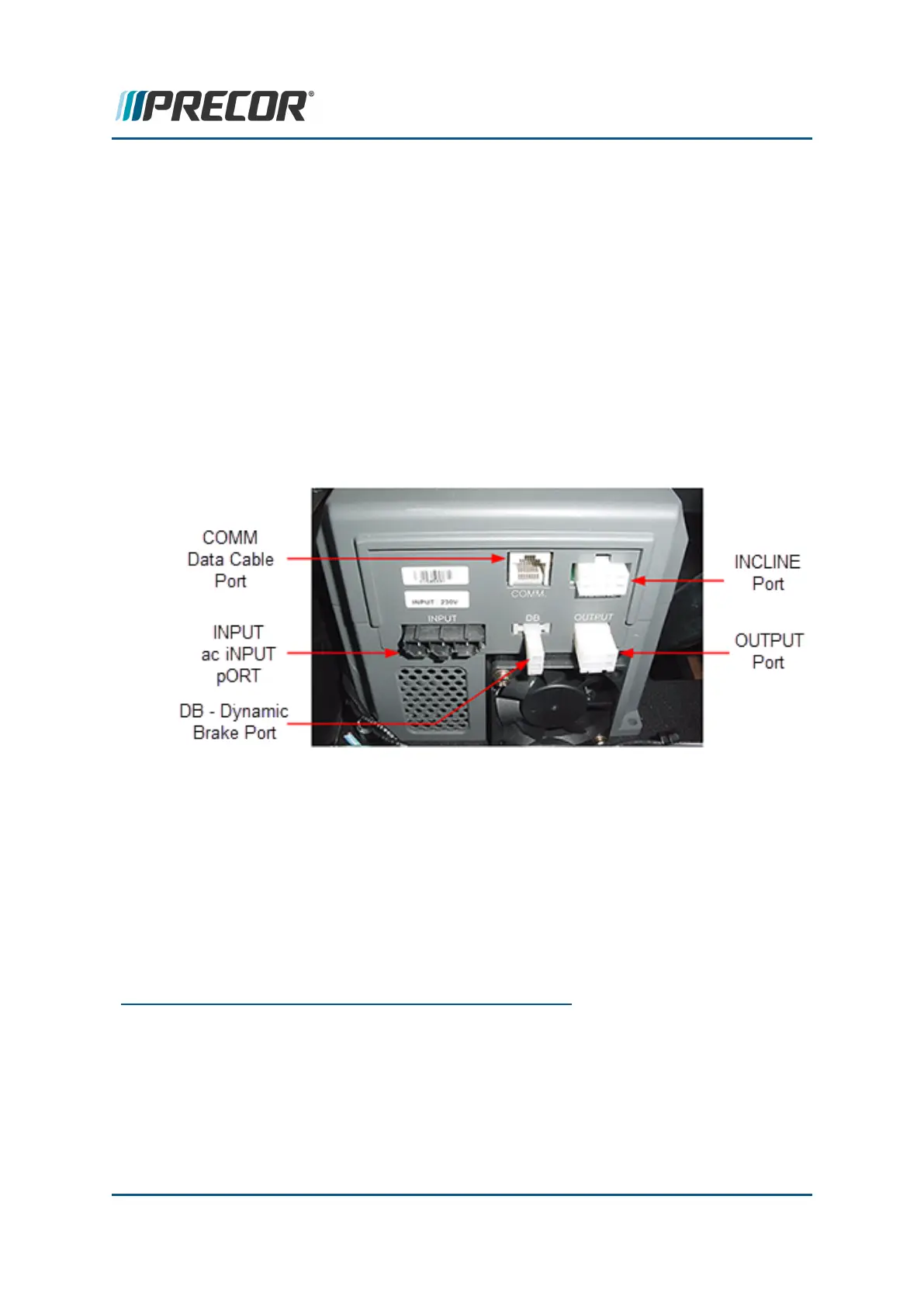

3. Disconnect the COMM, INCLINE, INPUT, DB
2
and OUTPUT connectors from the
power control module.
4. Remove the four screws that mount the power control module. Keep fasteners for
installation.
1
Integrated Footplant Technology: IFT recognize this change in speed when your foot strikes
the belt and adjust to match every stride, resulting in a smooth, fluid feel that enhances the
workout experience.
2
1) DB or DBR: treadmill dynamic break resistor 2) Decibel (dB): In electronic systems, the
decibel (dB) is a logarithmic unit of measurement used to express the system power gain
(+dB) or loss (-dB) in decibels (dB). dB (power) = 10Log Pout/Pin) or, in terms of voltage, dB
(power) = 20Log (Vout/Vin).
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
