Circuit Breaker Replacement
About
This procedure provides instruction to remove and replace the ON/OFF Circuit Breaker.
Procedure
Review entire procedure before starting.
1. Set the treadmill circuit breaker to OFF and unplug
1
the treadmill’s power cord from the
AC
2
outlet.
2. Remove the treadmill’s hood.

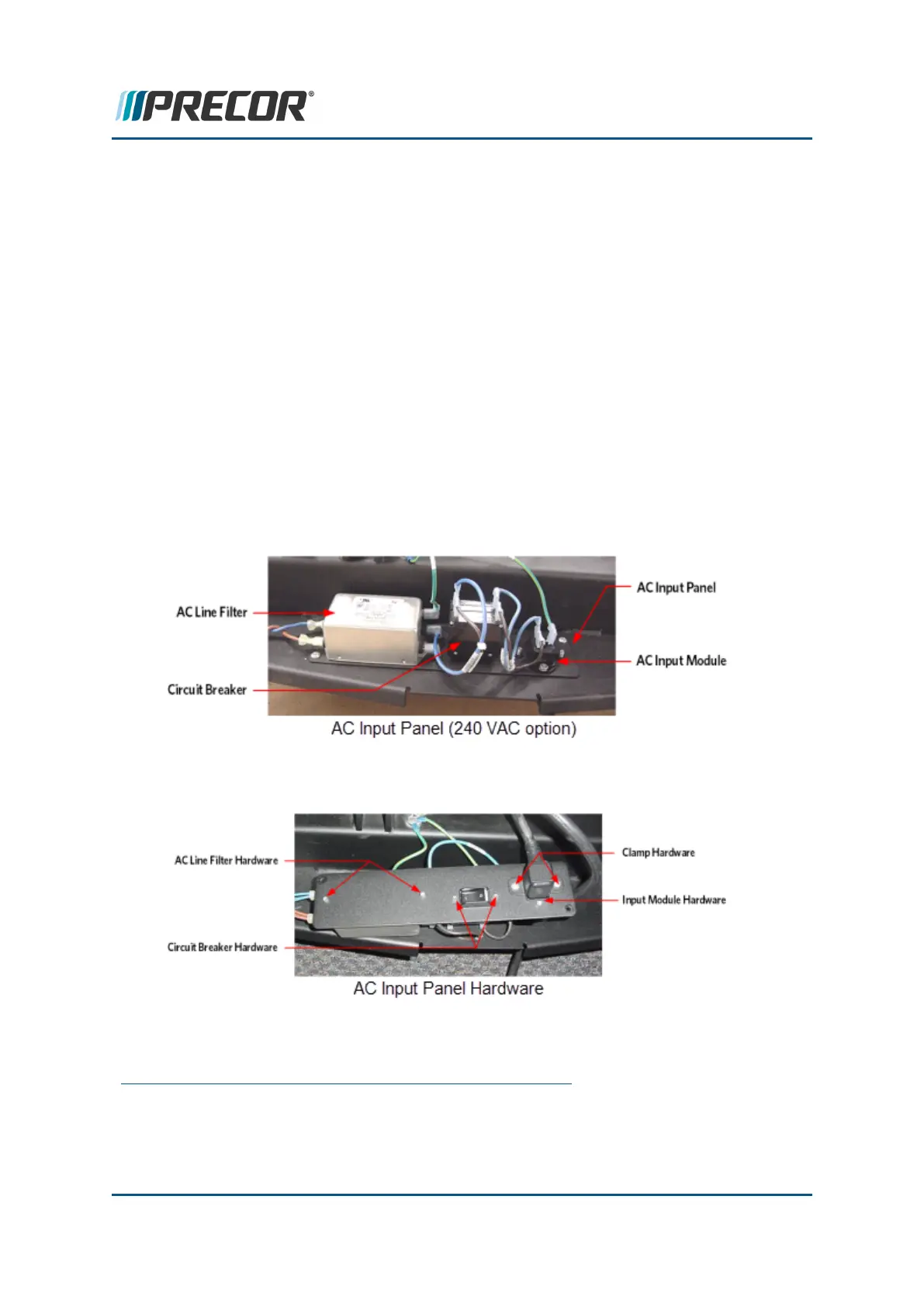

3. Remove the two screws that fasten the AC input panel to the frame. Keep fasteners for
replacement installation.
4. Disconnect the wiring from the circuit breaker (2 blue wires on 120 Vac treadmills or 2
blue and 2 brown wires on 240 Vac treadmills) Note: The figure below is showing a 240
volt configuration.
5. Incline the AC input panel from the frame and rotate it to expose the AC input circuit
breaker screws.
1
Disconnect a device power cord plug or cable connector from the power receptacle or outlet.
2
Alternating Current: electric current which periodically reverses direction between positive
and negative polarity.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 53
6 Replacement Procedures
Circuit Breaker Replacement
