End Cap & Belt Guard Cover Replacement
About
This procedure provides instruction to remove and replace the End Cap and belt guard cov-
ers.
Procedure
Review entire procedure before starting.
1. Switch the input power OFF and unplug
1
power cord.

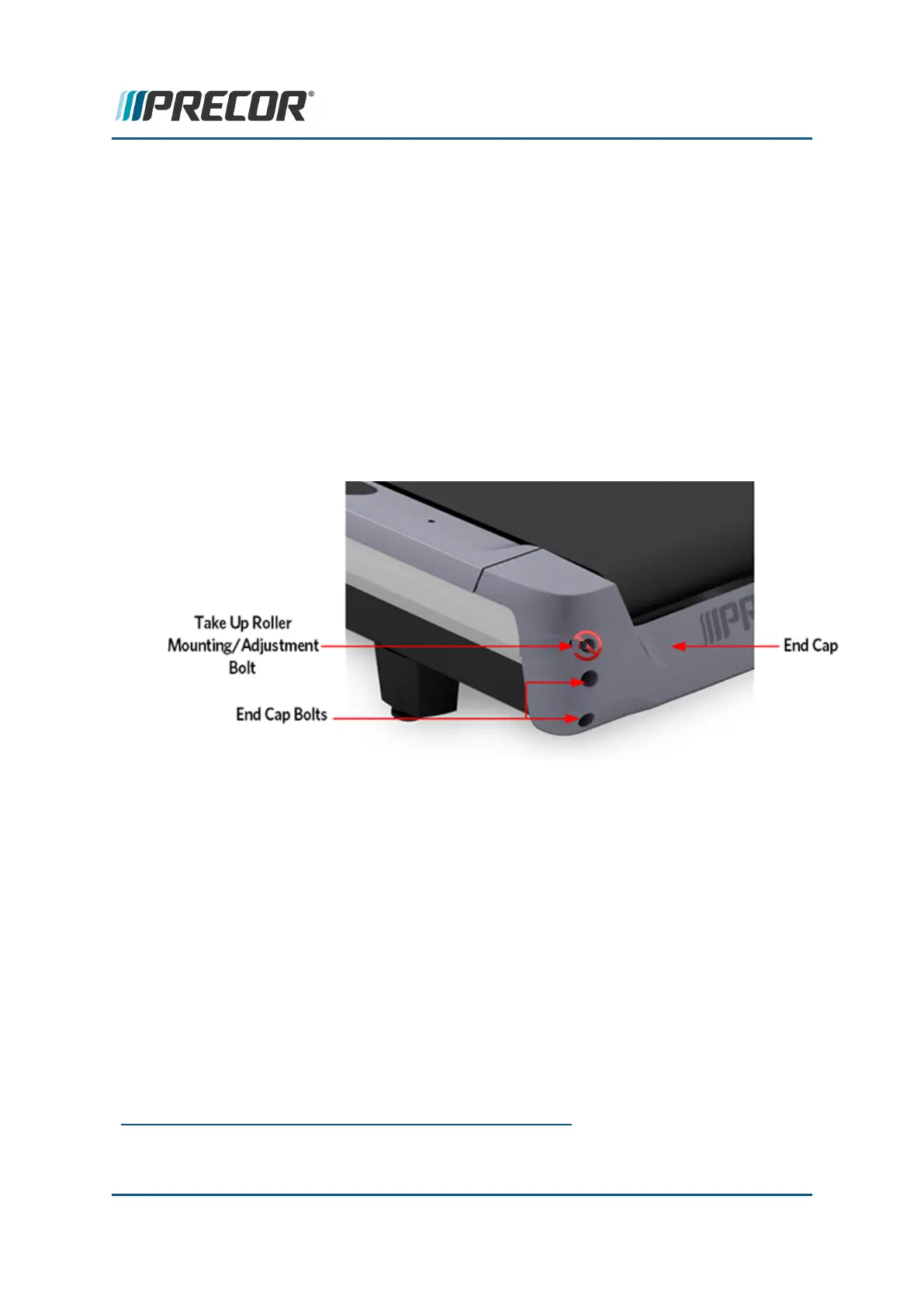

2. Remove the four screws (2 lower screws, each side) that retain the end cap. Keep
fasteners for installation. DO NOT loosen or move the Take-Up roller mount-
ing/adjustment bolts. Doing so will change the running belt’s tension and alignment.
3. To remove the end cap, slide the end cap off of the treadmill.
1
Disconnect a device power cord plug or cable connector from the power receptacle or outlet.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 66
6 Replacement Procedures
End Cap & Belt Guard Cover Replacement
