4. To remove the belt guard, press inwards on the belt guard to remove the belt guard tabs
from the Take-Up roller mounts. Slide the belt guard off of the treadmill.

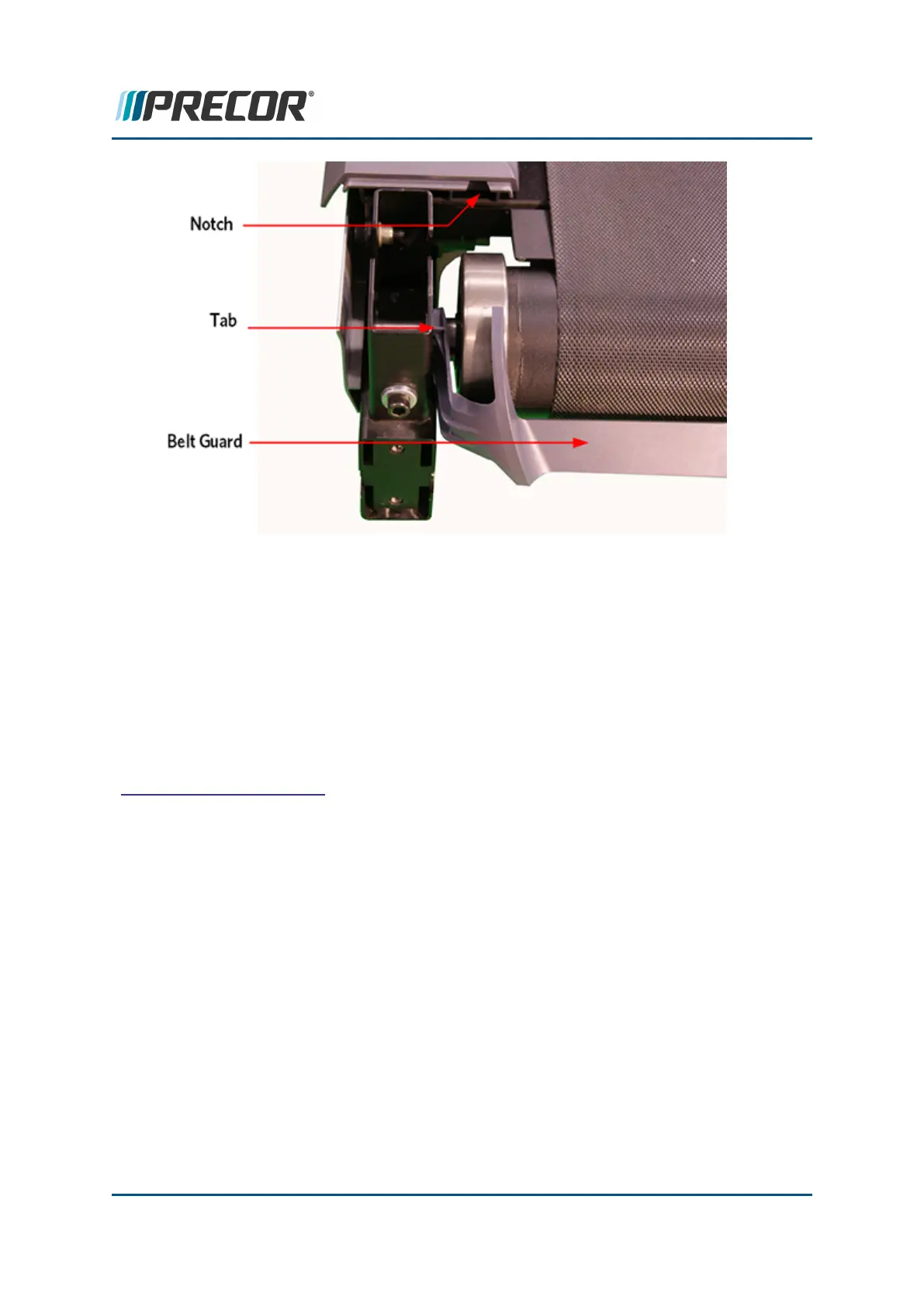

5. To install the belt guard, slide the replacement belt guard into place so that the tabs on
the belt guard engage in both Take-Up roller mounts.
6. To install the rear guard, slide the end cap into place so that the tabs on the end cap
engage in the notches in the running belt trim strips.
7. Secure end cap with fasteners.
See Also
"Replacement Procedures" on page 48
"Running Belt and Deck Replacement" on page 81
"Take-Up roller Replacement" on page 86
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 67
6 Replacement Procedures
End Cap & Belt Guard Cover Replacement
