Drive Belt Tension & Alignment Adjustment
About
This procedure provides instruction to verify and make adjustments to the Drive Belt tension.
The Drive Belt tension should be verified anytime the drive belt is removed or replaced.
NOTE: This procedure assumes that the drive belt has been installed and seated
onto the drive roller and drive motor pulleys.
Procedure
Review entire procedure before starting.
Drive Belt Tension Verification
2. Switch the input power OFF and unplug
1
the power cord.
3. Remove the front hood.
Drive Belt Alignment

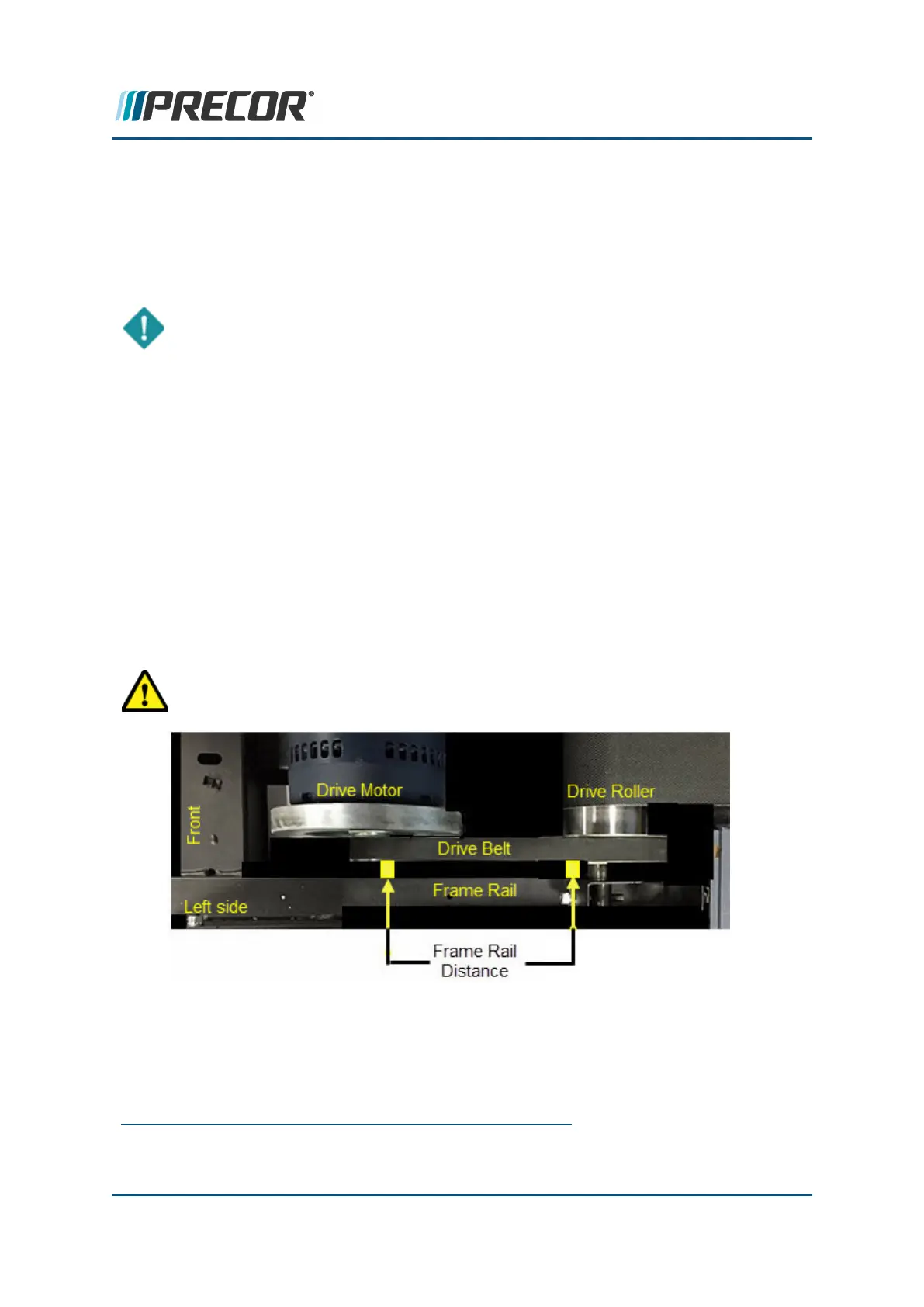

4. Verify the drive belt alignment. Make sure that the drive belt is aligned parallel to the
frame rail. Measure the belt to frame rail distance at the drive roller pulley and at the
drive motor pulley. If the measurements are not the same, adjust the belt position on the
drive motor pulley to match the drive roller belt distance.
CAUTION: Improper drive belt alignment will cause damage and/or break the drive
belt.
2. Place the belt tension gauge onto the drive belt.
1
Disconnect a device power cord plug or cable connector from the power receptacle or outlet.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 40
5 Adjustment Procedures
Drive Belt Tension & Alignment Adjustment
