SX™ Operator Manual
©
Original Printed in English

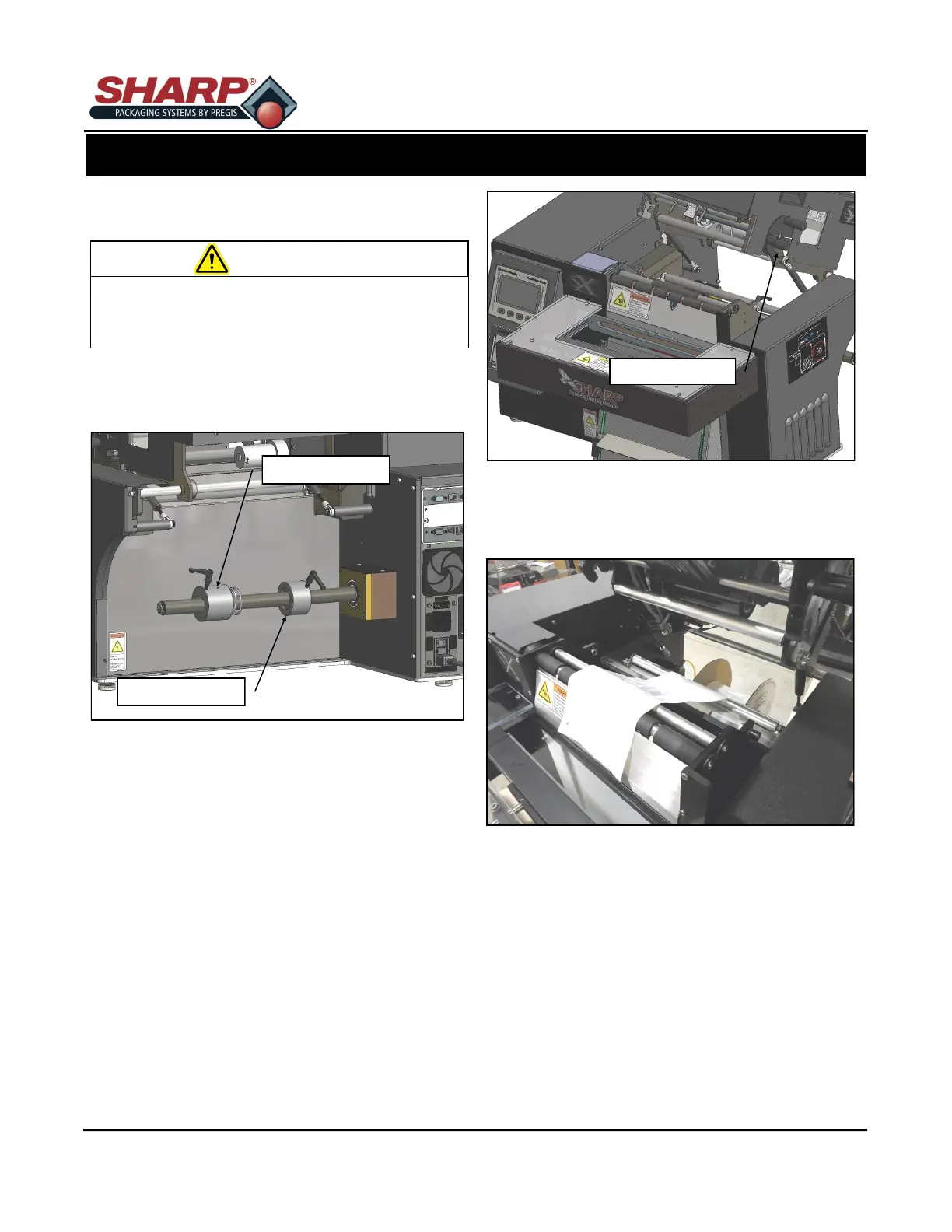

LOADING BAG FILM
SET-UP & OPERATION
A decal showing the film threading path through the
machine is located on the Frame Cover.
1. Remove the Roll Tensioner from the Roll Unwind
Shaft by loosening the Adjustment Handle and
sliding off the Roll Tensioner.
2. Install the roll of bags.
Note: At this point, in most cases, you would cen-
ter the bags to the Printhead Cradle. However, there
may need to be an offset to prevent hang holes, vent
holes, etc. from passing over the electric eye. To cen-
ter the roll, loosen the Core Chuck Adjustment Handle
and slide the Core Chuck to the desired position.
3. Replace the Roll Tensioner onto the Roll Unwind
Shaft and secure while applying pressure to the
Roll Tensioner, compressing the Roll Tensioner
Spring approximately 3/8”.
4. Raise the Printhead Cradle by rotating the Cradle
Latch and lifting the Cradle.
5. While standing at the front of the machine, reach
through and pull the bags until they drape over the
drive rollers and extend to the bend in the Front
Finger Plate.
6. Lower and lock the Printhead Cradle into position
using the Cradle Latch.
2-2
Use extreme caution when feeding bags into
machine; electrical voltage and possible pinch
points are present.
WARNING!
ROLL TENSIONER
CORE CHUCK
CRADLE LATCH
