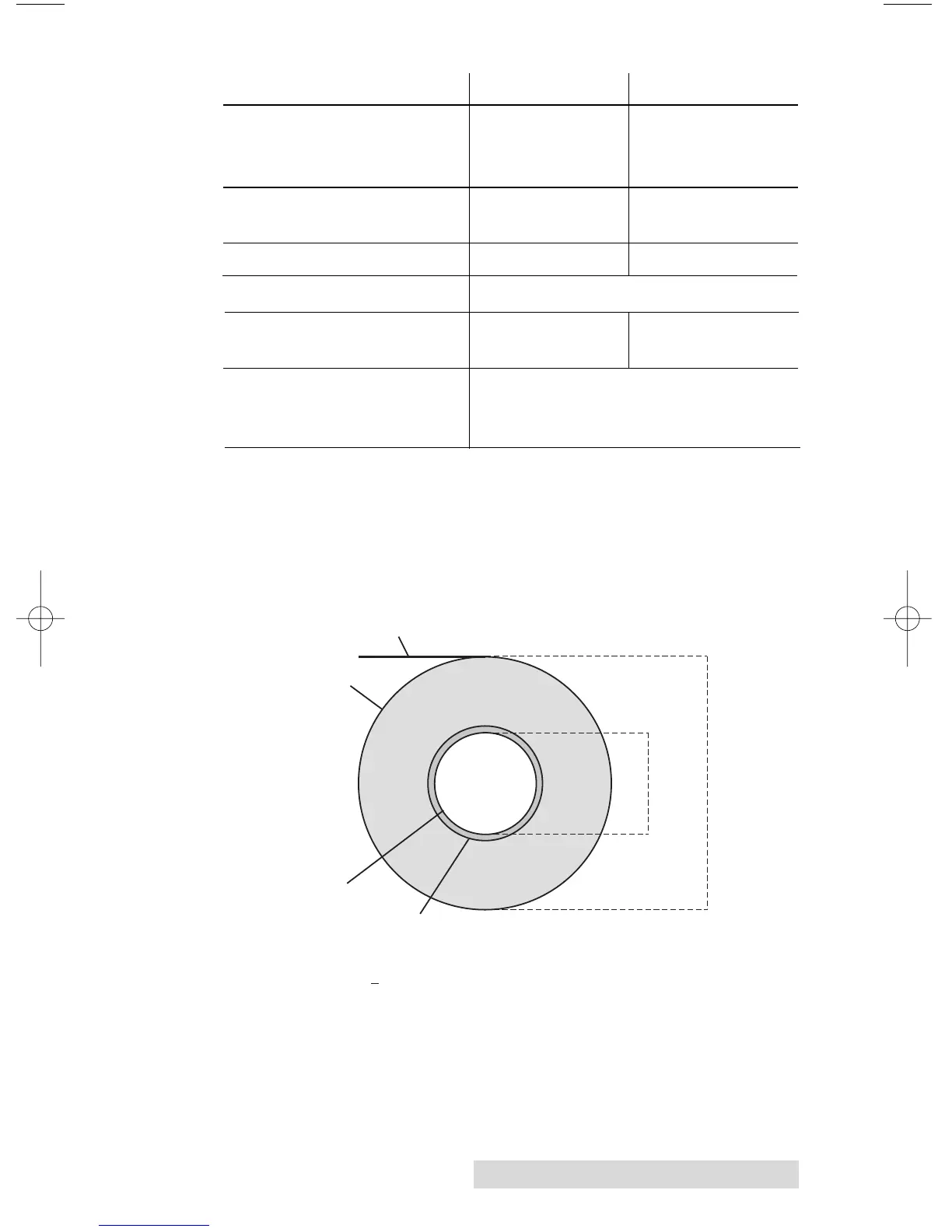

Label and Roll Specifications 51
Max Min
Distance from edge of 1.90" (48.3mm) 0.20" (5.1mm)
media to edge of
thru-hole
Reflective/Black Equal to distance 0.10" (2.5mm)
Mark Width* between labels
Max Outer Diameter (OD) 5.0"(127mm) N/A
Inner Core Diameter (ID)
see roll specifications below
Stock Thickness .006” N/A
(152 micron)
Distance from edge of Printer driver assumes 2 mm gap.
media to edge of label However, this is adjustable via the
left margin offset.
* The Reflective/Black Mark should be opaque to infared light.
The mark should be between the labels. The end of the mark
should correspond with the beginning of the label.
Roll Specifications
Label Side Out
Core I.D.
Core O.D.
Roll O.D.
Notes:
1. Label height <1.5” requires a 2.00” I.D. x 3.00” O.D. core.
Label height >1.5” requires a 2.00” I.D. x 2.25” O.D. core.
2. Turret glue or 1/2”-wide 3M 928 double-sided removable tape must be
used to attach stock to core. Removable tape must be positioned across
full width of core. Other types of tape are not allowed.
3. End face of liner must align with end of core on both sides within 0.030”.
(Core width should be the same as liner width.)
4. Masking tape or equivalent may be used to secure label stock to outside of roll.
2” 5”
Label Stock
