50 Label and Roll Specifications
Section 6: Label and Roll
Specifications
Max Min
Label/Print width 4.00" (101.6mm) 0.75" (19mm)
Liner width 4.25" (108mm) 1" (25.4mm)
Label height/length 24" (609.6mm) 0.75" (19mm)
Gap between labels 0.75" (19mm) 0.10 (2.5mm)
Width of thru-hole 0.5" (12.7mm) 0.25" (6.4mm)
opening

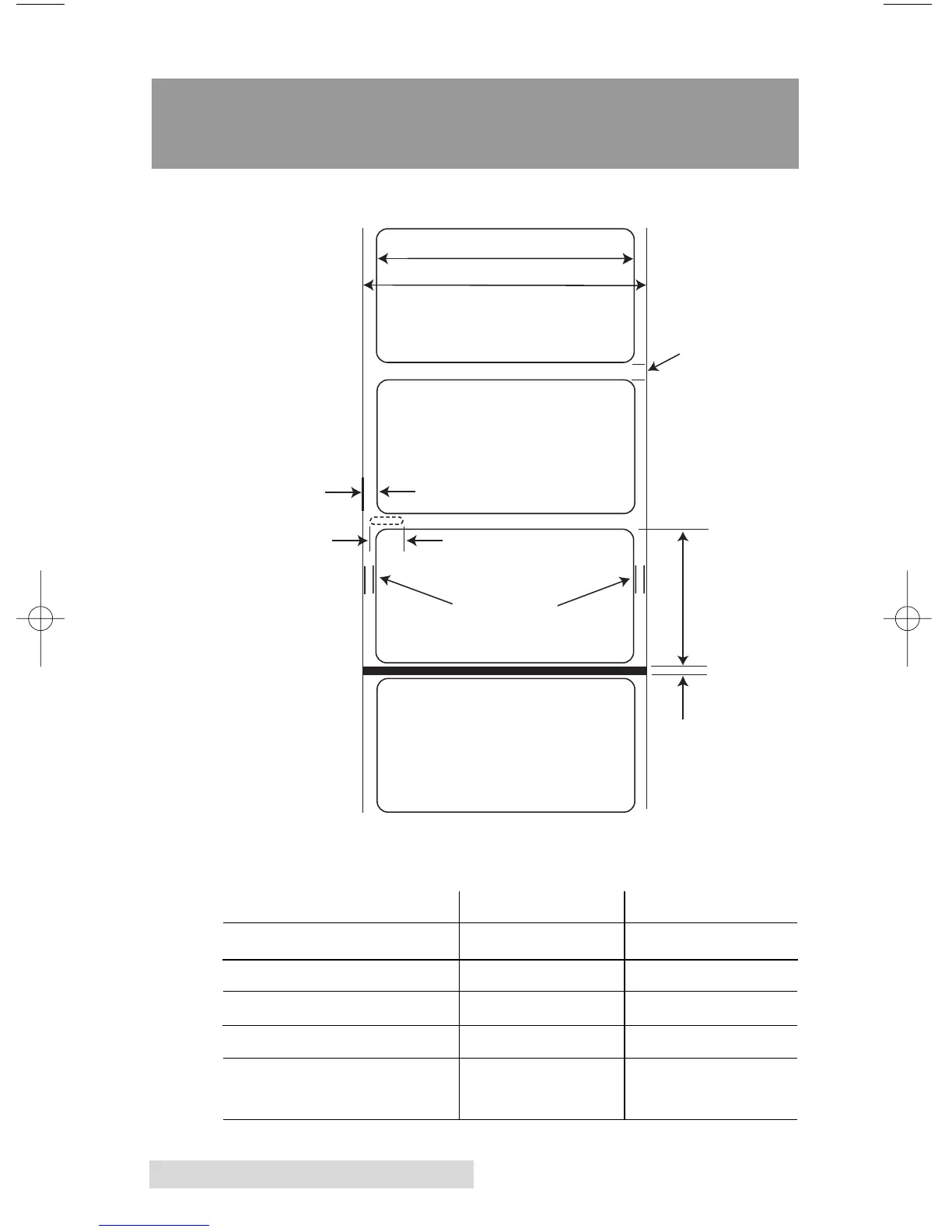

Label Width
Liner Width
Distance from
edge of Media
to edge of Label
Width of Opening
Black Mark
Width
Gap Between
Labels
Label Height
Distance from
edge of Media
Label Sensing Methods
Method 1: Label
Gap Sensing
Method 2: Thru-Hole
Sensing
Method 3: Reflective/Black
Mark Sensing
(Black Mark must be printed
on back side of label stock)
Note: See table below for Max and Min values in inches and mm..
