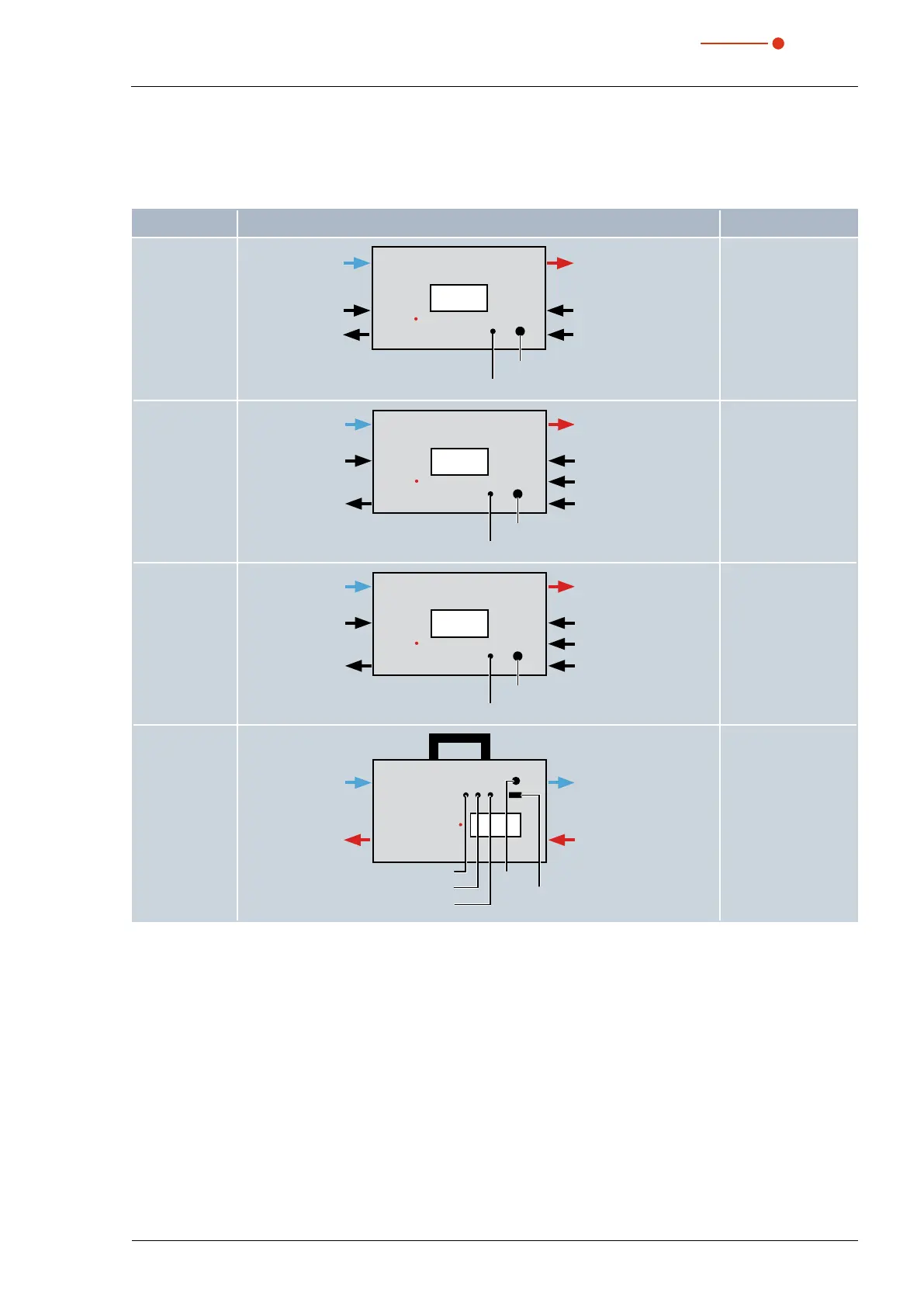

4.3 Configurations
Depending on the purpose of use and power, the devices are available with different configurations and con-
nections:
Designation Connections Power in kW
PLM 2
PRIMES bus
PRIMES bus
Water In
from Chiller
Water Out
to Absorber
T-Sensor external
Safety Interlock
USB
Analog Out
2
PLM 10
T-Sensor external
PRIMES bus
PRIMES bus
Safety Interlock MSM
Safety Interlock
Water In
from Chiller
Water Out
to Absorber
USB
Analog Out
10
PLM 20
T-Sensor external
PRIMES bus
PRIMES bus
Safety Interlock MSM
Safety Interlock
Water In
from Chiller
Water Out
to Absorber
USB
Analog Out
20
PLM 40
PCW supply
(Inlet flow
from chiller)
PCW return
(Return flow
to chiller)
To Absorber
From Absorber
T-Sensor
PRIMES bus
Safety Interlock
USB
Analog Out
40
Tab. 4.1: PowerLossMonitor PLM configurations
