8.3 Electrical connections on the PLM 40
PRIMES bus
Analog output
Safety interlock
External temperature sensor
USB

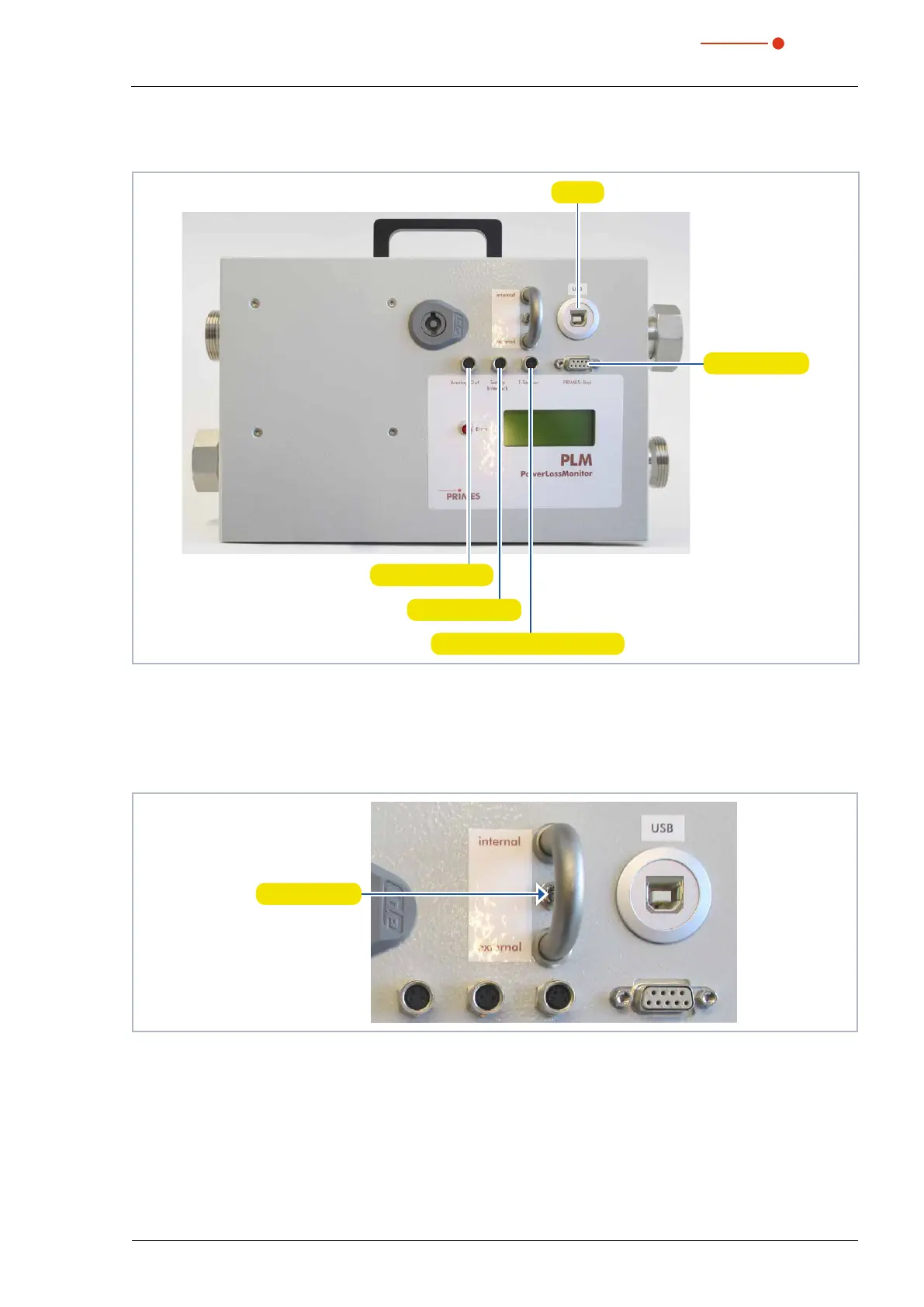

Fig. 8.5: Electrical connections PLM 40
8.3.1 Toggle switch to switch between external and internal temperature sensor
You can switch between the external and internal temperature sensor in the return flow of the cooling water
by means of the toggle switch extern/intern (see Fig. 8.6 on page19).
Toggle switch
Fig. 8.6: Switch for temperature measuring points
