Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumbler before servicing.
• Close gas shut-off valve to gas tumbler before servicing.
• Close steam valve to steam tumbler before servicing.
• Never start the tumbler with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the tumbler is properly grounded.
W002
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
16. FRONT PANEL
Refer to Figure 3.
a. Unlock and remove top access panel.
b. Unlock and remove lint panel.
c. Remove two screws at the loading door hinge
lug. Refer to Figure 1.
d. Remove eight screws holding front panel to
cabinet, leaving one screw on the top.
e. Support front panel and pull bottom of panel
away from the tumblers far enough to
disconnect door switch wires.
f. Remove remaining screw at top.
g. Remove front panel.
NOTE: Ensure front baffle gaskets are in place.
Refer to Figure 21.
NOTE: Refer to wiring diagram when rewiring
door switch.

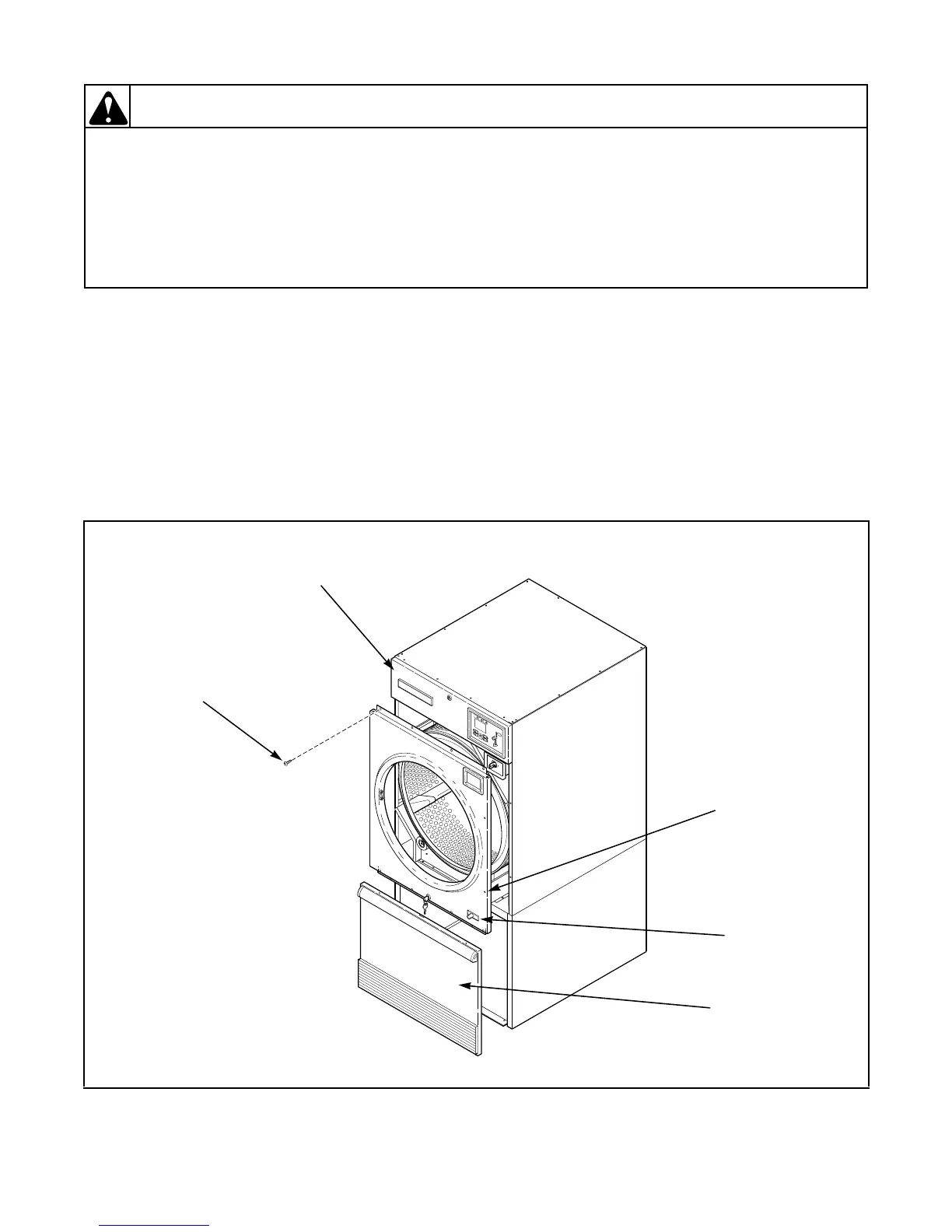

Figure 3
STA
RT
25
C
H
IG
H
TE
M
P
M
ED
T
E
M
P
L
O
W
TE
M
P
NO
H
E
A
T
1
2
3
S
E
L
E
C
T
TE
M
P
IN
S
E
R
T
C
O
IN
P
U
S
H
STA
RT
TMB1752S
FRONT
PANEL
PANEL
SCREW
DOOR
SWITCH
TOP
ACCESS
PANEL
LINT
PANEL
