Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumbler before servicing.
• Close gas shut-off valve to gas tumbler before servicing.
• Close steam valve to steam tumbler before servicing.
• Never start the tumbler with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the tumbler is properly grounded.
W002
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
25. CYLINDER ROLLERS
Refer to Figure 11.
a. Unlock and remove lint panel. Refer to
Figure 8.
b. Remove top access panel.
c. Remove front panel.
d. Remove nuts from end of roller shafts. Refer to
Figure 11.
e. Lift cylinder slightly and remove rollers from
shafts. Refer to Figure 11.
26. ROLLER SHAFT
Refer to Figure 11.
a. Unlock and remove lint panel. Refer to
Figure 8.
b. Remove front panel. Refer to Figure 3.
c. Remove cylinder rollers. Refer to
Paragraph 25.
d. Remove nuts from back of roller shaft.
e. Slide shaft back out of air duct roller support
assembly.

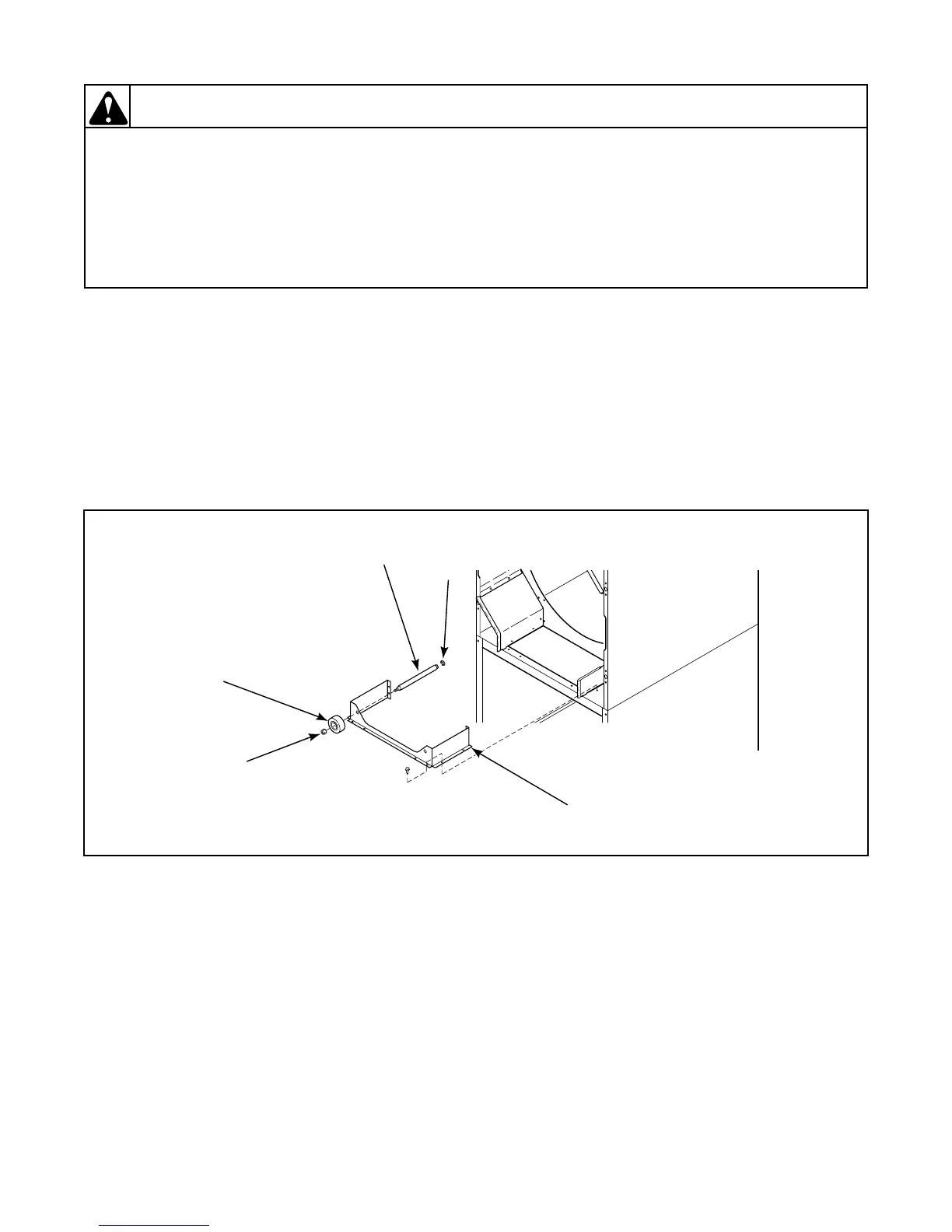

Figure 11
T262SE3A
CYLINDER
ROLLER
ROLLER
SHAFT
NUT
NUT
AIR DUCT
ROLLER SUPPORT
ASSEMBLY
