70284701 19
Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumbler before servicing.
• Close gas shut-off valve to gas tumbler before servicing.
• Close steam valve to steam tumbler before servicing.
• Never start the tumbler with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the tumbler is properly grounded.
W002
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

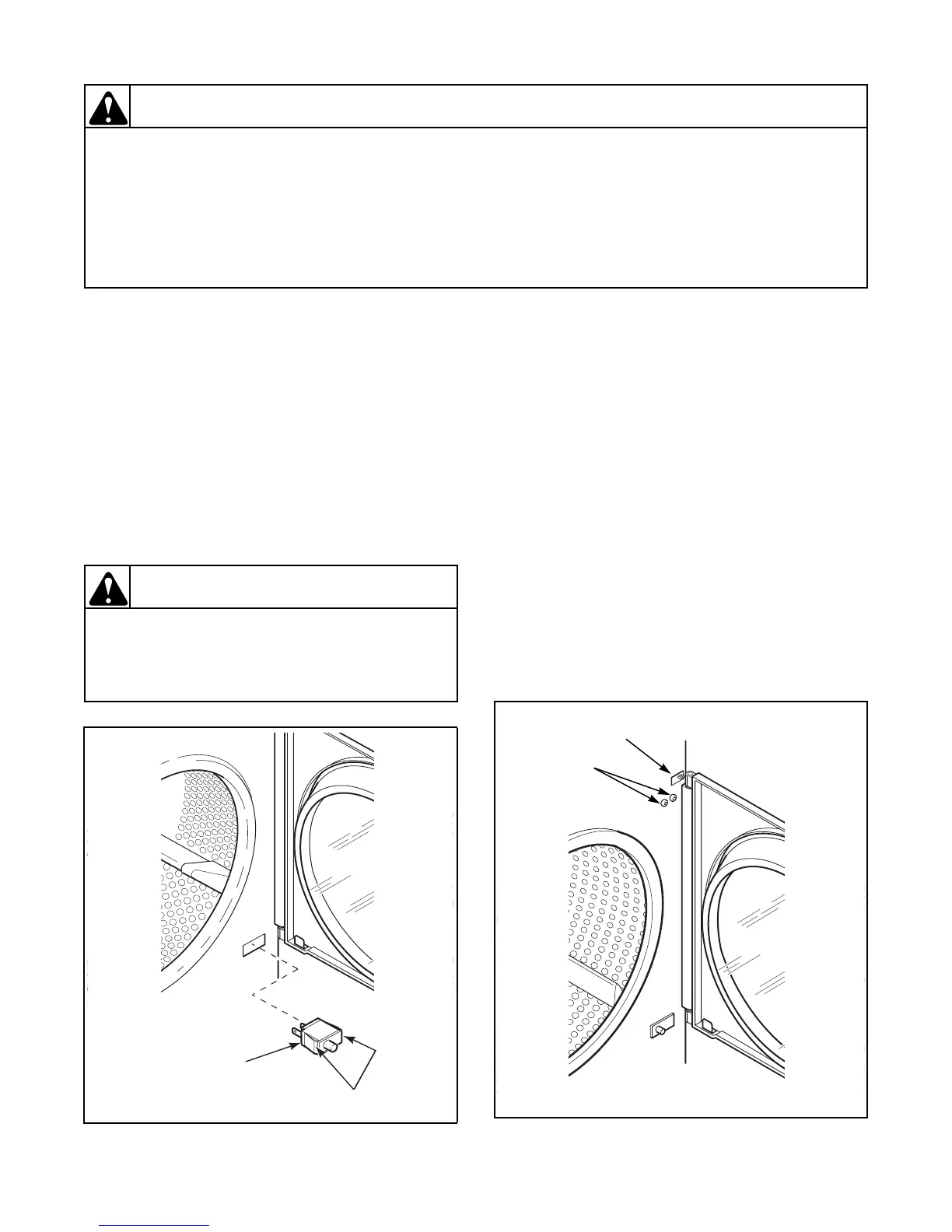

17. DOOR SWITCH
Refer to Figure 4.
a. Remove two screws from loading door hinge
lug. Refer to Figure 1.
b. Remove screws from bottom of front panel.
Refer to Figure 3.
c. Tilt front panel out and away from tumbler.
d. Disconnect wires to door switch.
NOTE: Refer to wiring diagram when rewiring
door switch.
e. Press switch tabs in and push switch out
through front panel.
18. EUROPEAN DOOR SWITCH
Refer to Figure 5.
NOTE: European Models prior to Serial Number
0208002174 are equipped with a second door
switch.
a. Remove two screws from the loading door
hinge lug. Refer to Figure 1.
b. Remove screws from top and sides of front
panel and loosen screws at bottom of front
panel. Refer to Figure 3.
c. Tilt front panel out and away from tumbler only
far enough to permit disconnecting wires from
door switch.
NOTE: Refer to wiring diagram when rewiring
door switch.
d. Remove two screws and nuts holding door
switch to bracket on inside of front panel.
Figure 4
To reduce the risk of serious injury the door
switch MUST be reinstalled after service is
complete.
W241
WARNING
DOOR
SWITCH
SWITCH
TABS
T258SE1A
Figure 5
T386I
EU DOOR
SWITCH
SCREWS
