Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumbler before servicing.
• Close gas shut-off valve to gas tumbler before servicing.
• Close steam valve to steam tumbler before servicing.
• Never start the tumbler with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the tumbler is properly grounded.
W002
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

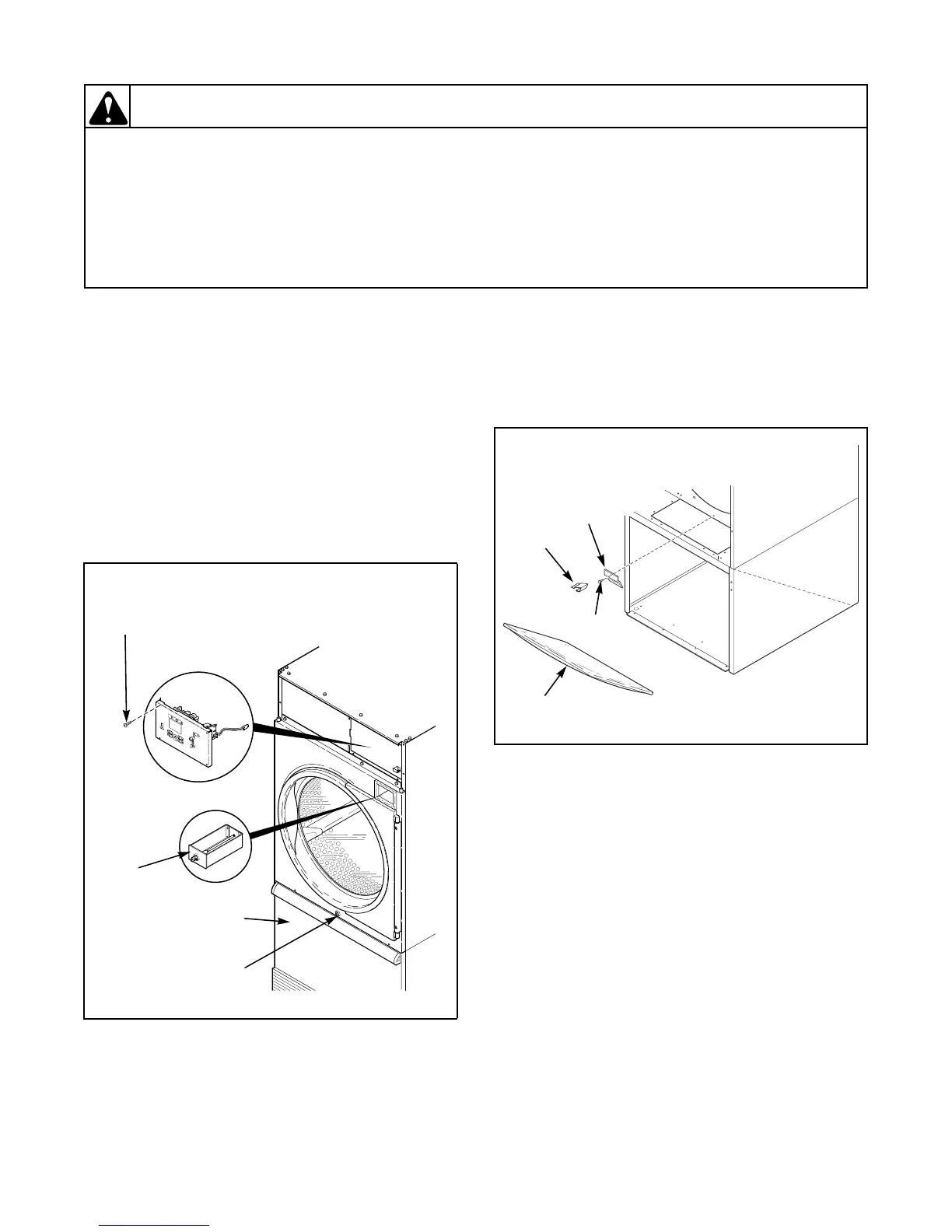

19. CONTROL AND COIN DROP ASSEMBLY
Refer to Figure 6.
a. Unlock top access panel over control and
remove. Refer to Figure 3.
b. Remove two screws from control door.
c. Swing out control.
d. Push up on control until top hinge clears slot.
e. Disconnect wire harness from cabinet harness.
f. Remove control and place in a clean dry
location where it cannot be damaged.
IMPORTANT: Refer to wiring diagram when
rewiring control.
20. LINT PANEL
Coin
Unlock panel and remove. Refer to Figure 6.
OPL
Pull panel down from top. Refer to Figure 6.
21. LINT SCREEN
Refer to Figure 7.
a. Unlock and remove lint panel. Refer to
Figure 6.
b. Apply pressure on top of screen to release
screen from clip.
c. Remove screen.
TO REPLACE SCREEN
a. Drop bottom of screen between lugs on bottom.
Refer to Figure 7.
b. Secure top of screen behind clip.
Figure 6
STA
RT
25
C
H
IG
H
TE
M
P
M
E
D
T
E
M
P
L
O
W
T
E
M
P
N
O
H
E
A
T
1
2
3
SELECT
TEMP
INSERT
COIN
PUSH
START
TMB1753S
CONTROL
DOOR
SCREWS
COIN
VAULT
(Obtain
Locally)
LINT
PANEL
LOCK
LINT
PANEL
Figure 7
TMB1819S
LINT
SCREEN
SCREW
CLIP
CLIP
