70284701 27
Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumbler before servicing.
• Close gas shut-off valve to gas tumbler before servicing.
• Close steam valve to steam tumbler before servicing.
• Never start the tumbler with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the tumbler is properly grounded.
W002
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
31. AIRFLOW SWITCH
Refer to Figure 16.
a. Remove two screws on airflow switch guard
and remove guard.
b. Disconnect wires from switch.
NOTE: Refer to wiring diagram when rewiring
switch.
c. Remove two screws and one speed nut holding
switch to mounting bracket.
32. STOVE HIGH LIMIT THERMOSTAT
Refer to Figure 17.
a. Remove cover screws holding gas valve cover
to stove and remove cover.
b. Disconnect wires from stove limit thermostat.
NOTE: Refer to wiring diagram when rewiring
thermostat.
c. Remove screws holding stove limit thermostat
to stove.

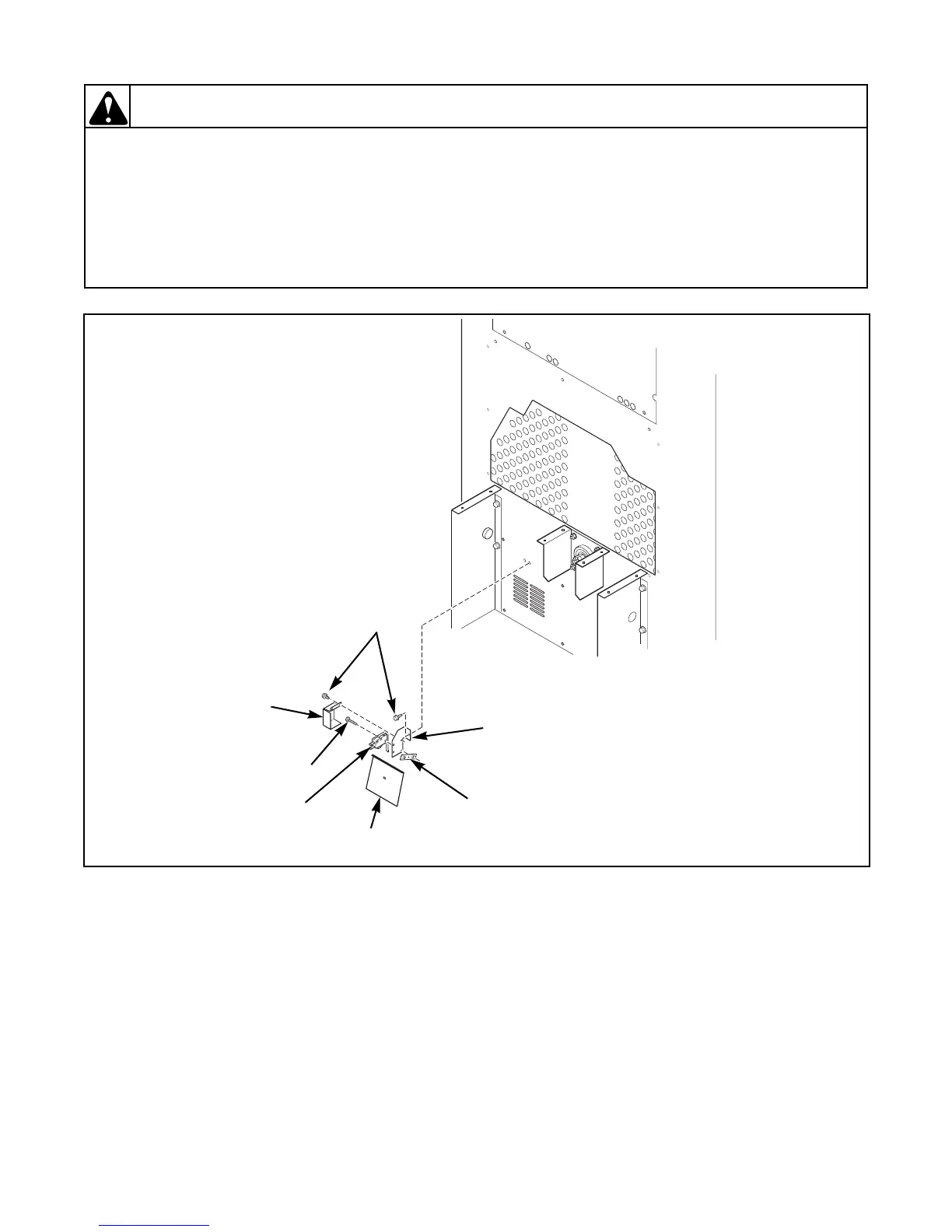

Figure 16
TMB1846S
TWIN
SPEED NUT
AIRFLOW
VANE
AIRFLOW
SWITCH
AIRFLOW
SWITCH PLATE
SCREW
SCREW
BRACKET
