IMPORTANT
Be sure to copy the FILENAME.exe file to your computer’s local drive
before
executing commands in the Windows Command Prompt.
Web Page Download
This download method requires firmware with the .fls extension FILENAME.fls.
1. Make sure the printer is powered up, in ONLINE mode, and that the
Ethernet cable is connected.
2. Get the IP address from the front panel ONLINE screen (or under Network in Settings ).
3. Enter the printer’s IP address in your browser (e.g.,
http://10.224.5.21).
4. When prompted for a user name and password, enter “root” for user
name and click OK.
5. Click “System” in the Configuration box.

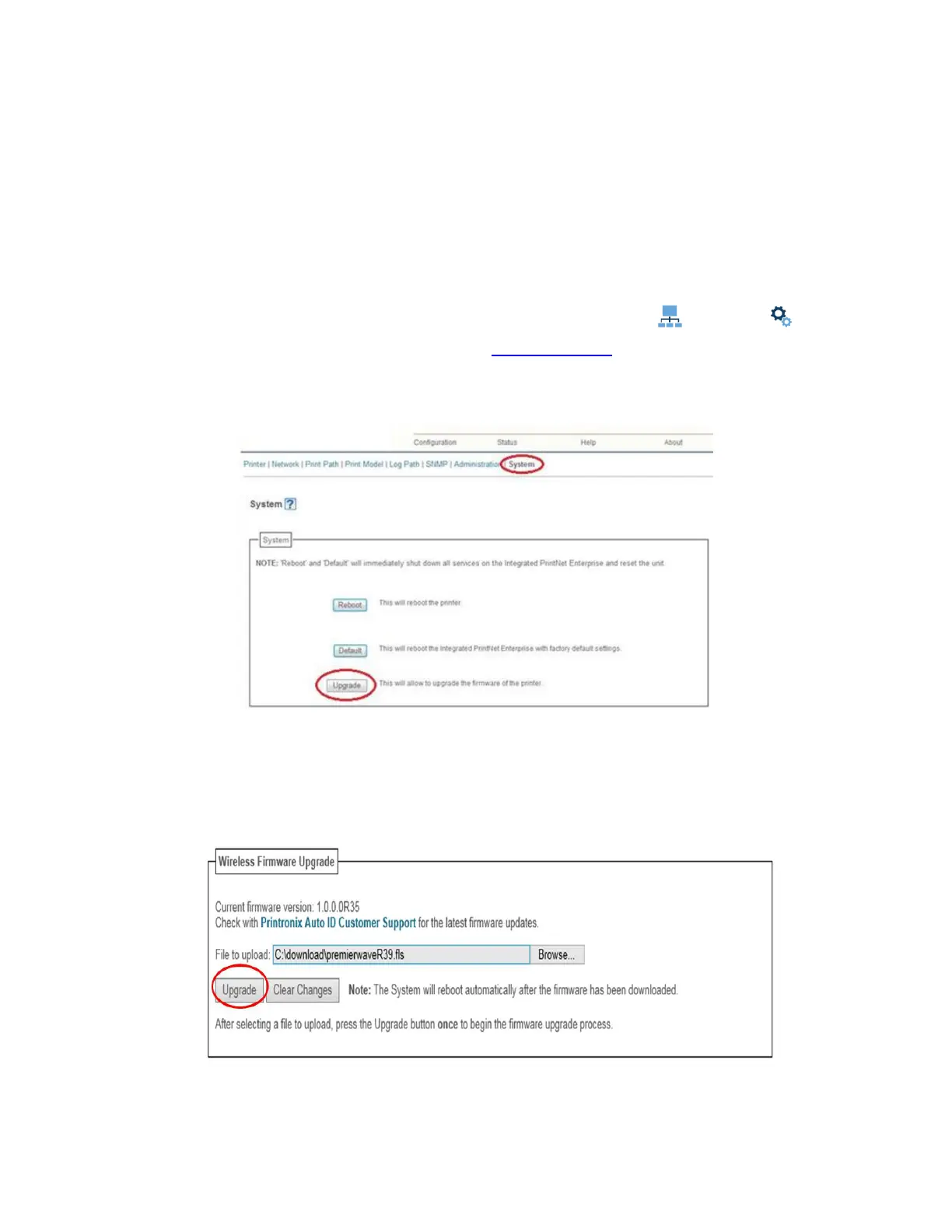

Figure 14 System Configuration Upgrade
6. Click the “Upgrade” button.
7. Browse to the directory or enter FILENAME.fls in the “File to upload”
field of the Wireless Firmware
Upgrade box and click “Upgrade”. A Warning message opens.
Figure 15 Uploading Firmware File for Upgrade
8. Click “Ok” to continue.
