Printronix Auto ID T820 - Loading Media

30

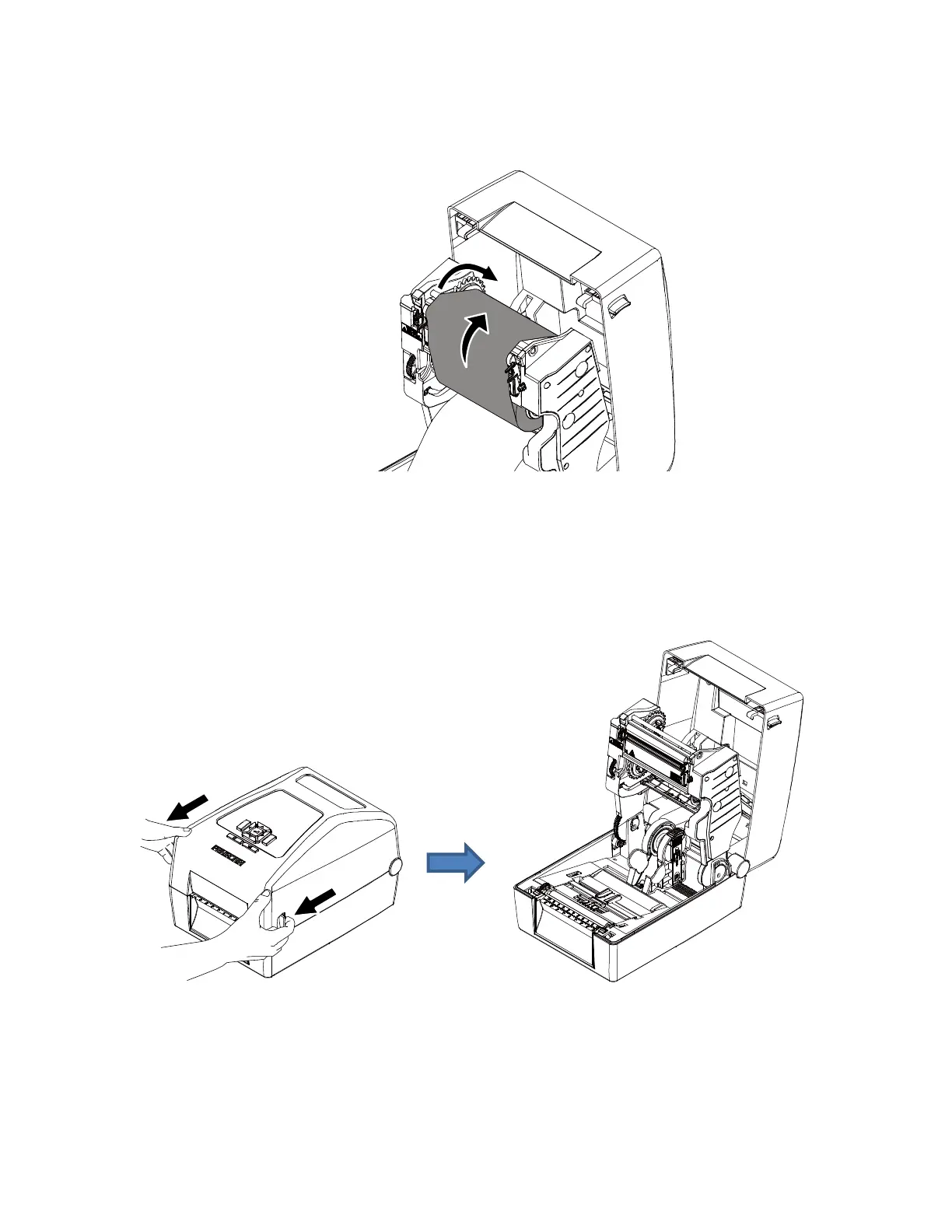

5. Turn the blue ribbon rewind hub until the ribbon plastic leader is thoroughly wound and the black
section of the ribbon covers the print head.
Loading Media
1. Open the printer top cover by pulling the blue levers , located on each side, toward the front of the
printer, then lift the top cover.
