Unpacking The Printer
25

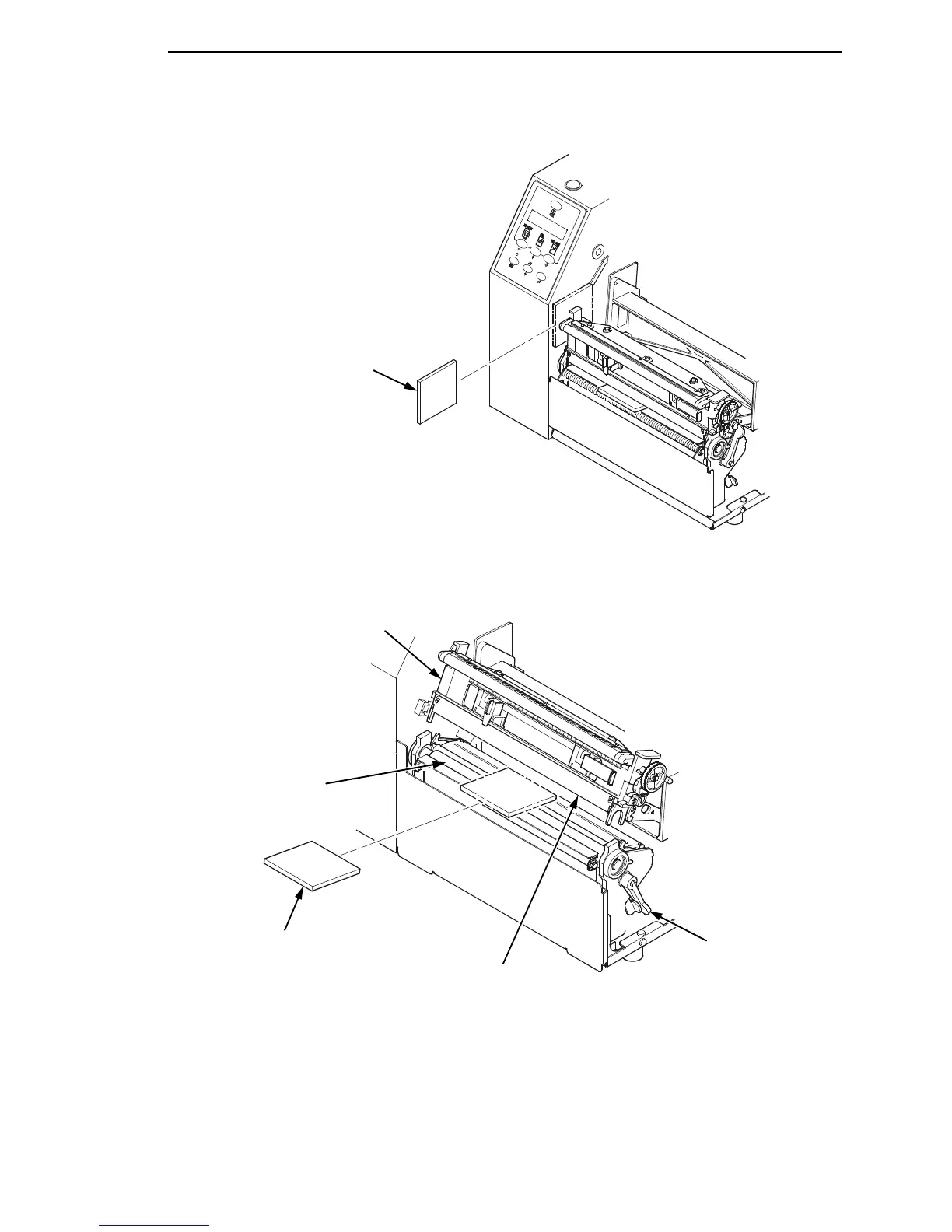

4. Remove the foam pad between the pivoting deck and the frame.
5. Open the pivoting deck by rotating the blue deck lock lever fully
clockwise.
6. Remove the foam pad from between the printhead and the platen (rubber
roller).
7. Close the pivoting deck and media cover.
Foam
Foam
Pad
Deck Lock
Lever
Pivoting
Deck
Platen
Printhead
