Prinzen PSPC7 - 30 Cell Tray Denester Unit

MACHINE DESCRIPTION
Page 32 of 99 USER MANUAL PSPC UM-PSPC-06-E/10-2012

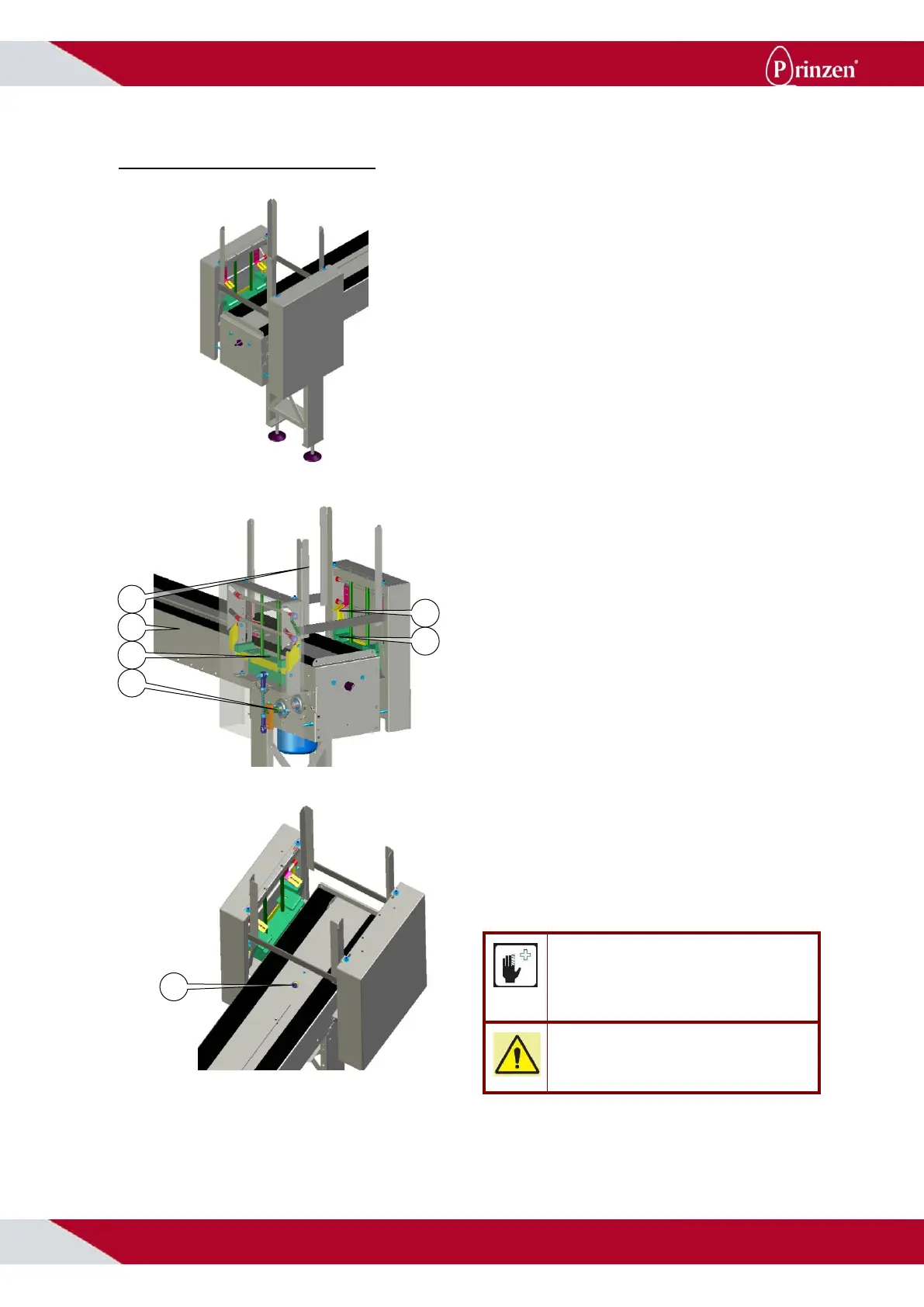

30 CELL TRAY DENESTER
Use:
The 30-cell tray denester separates a single 30
cell plastic or cardboard tray from a stack of
trays and drops this tray on the output
conveyor.
Construction:
The 30-cell tray denester consists of:
1 Bunker
2 Top grippers
3 Lower grippers
4 Denester blocks
5 Drive mechanism
The 30- cell tray denester is placed on top of
the output conveyor (6).
Process:
Plastic or cardboard trays are manually
supplied into the bunker and rest on the top
grippers.
When the start denester sensor (10, positioned
in the output conveyor underneath the tray
denester) is OFF, the lower grippers remove 1
tray from the bottom of the stack of trays and
drop this tray onto the output conveyor.
Safety:
The denester is not completely secured with
protective covers. Therefore be cautious with
loosely hanging clothes and long hair, do not
come too close to the denester and do not
touch it when it is running production.
The lower grippers make unexpected fast and
powerful movements. Never touch or come
near this part when the packer is running
production.
CAUTION!
Do not enter objects or body parts into the
denester when it is running production.
Keep distant to the lower grippers! These make
unexpected fast and powerful movements!
ATTENTION!
Do not enter objects or body parts into the
denester when it is running production.
2
3
1
10
4
5
6
