3310F Series Operation Manual 35
lower 5 digit LCD display 「CONTI」, the unit is "ms".

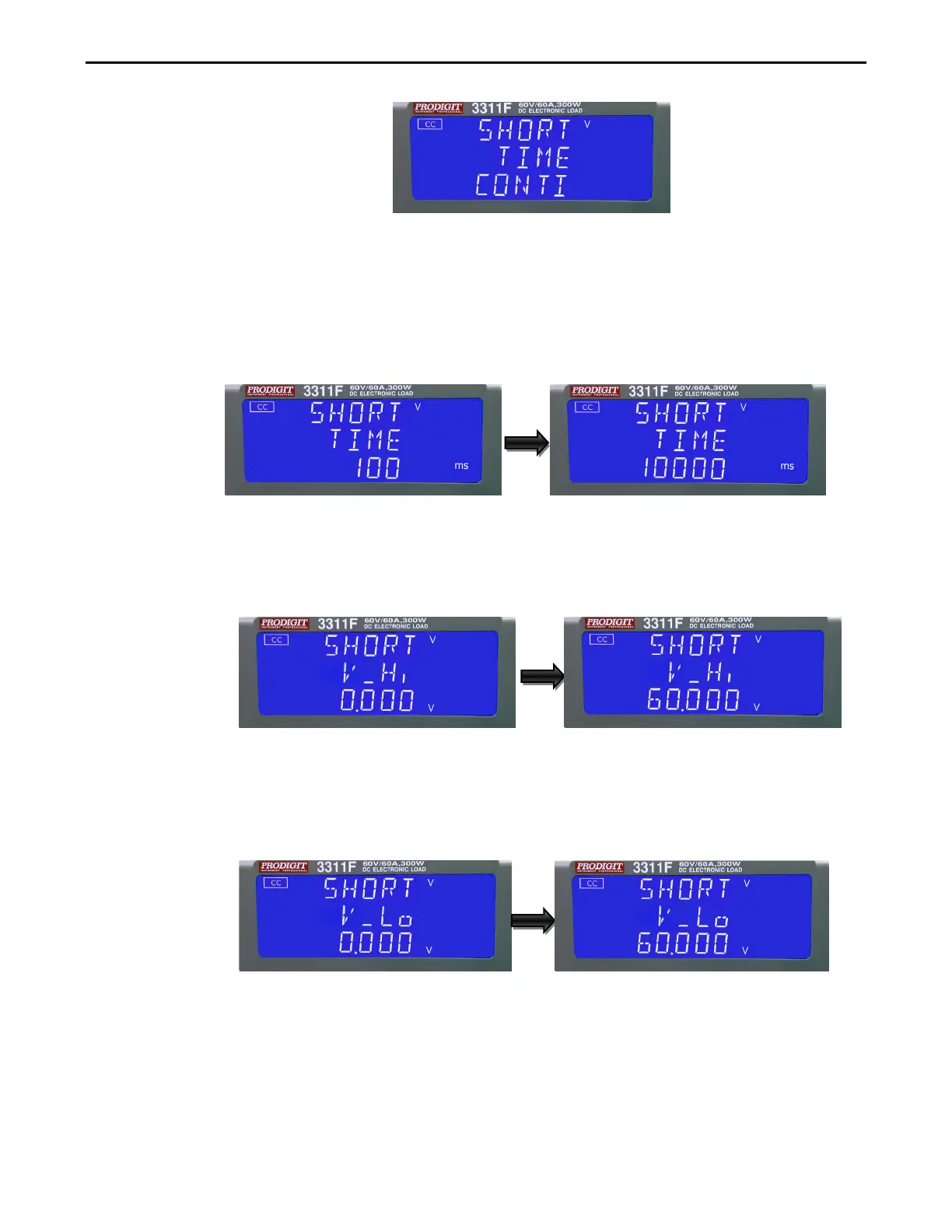

TIME: setting the short test time, The LCD display show 「SHORT」 on
upper 5 digits LCD display, shows 「TIME」on middle 5 digits LCD display
the unit is “ms” ,and shows 「CONTI」 on lower 5 digits LCD display, the
Setting range is “CONTI” means continue, 100mS to 10000mS step 100mS
by clockwise rotate the setting knob.
The short test will be no time limitation when setting to CONTI until press
“START/STOP” key to stop the short test.
V-Hi : Short test voltage check upper limitation setting, The LCD display
shows 「SHORT 」on upper 5 digit LCD display, Middle 5 digit LCD
display「V-Hi」,lower 5 digit LCD display setting value, the unit is "V", The
V-Hi setting range from 0.000V to 60.000V step 0.001V by rotating the
setting knob.
V-Lo : Short test voltage check lower limitation setting, The LCD display
shows 「SHORT 」on upper 5 digit LCD display, Middle 5 digit LCD
display「V-Lo」,lower 5 digit LCD display setting
value, the unit is "V", the
V-Hi setting range from 0.000V to 60.000V step 0.001V by rotating the
setting knob.
Once the test parameters have been entered the test is started by pressing
The red START/STOP button while the SHORT PRESS START text is
Displayed. During the test the bottom LCD will show run and the actual short
Current will be displayed on the middle LCD.
Note 1: The message PASS END will be displayed if the measured voltage levels
stays within the V_Hi and V_Lo threshold levels during the test
Note 2: The message FAIL END will be displayed if the measured voltage levels
