Available views are:
SPECTRUM 1/3: SPECTRUM + MEASUREMENT

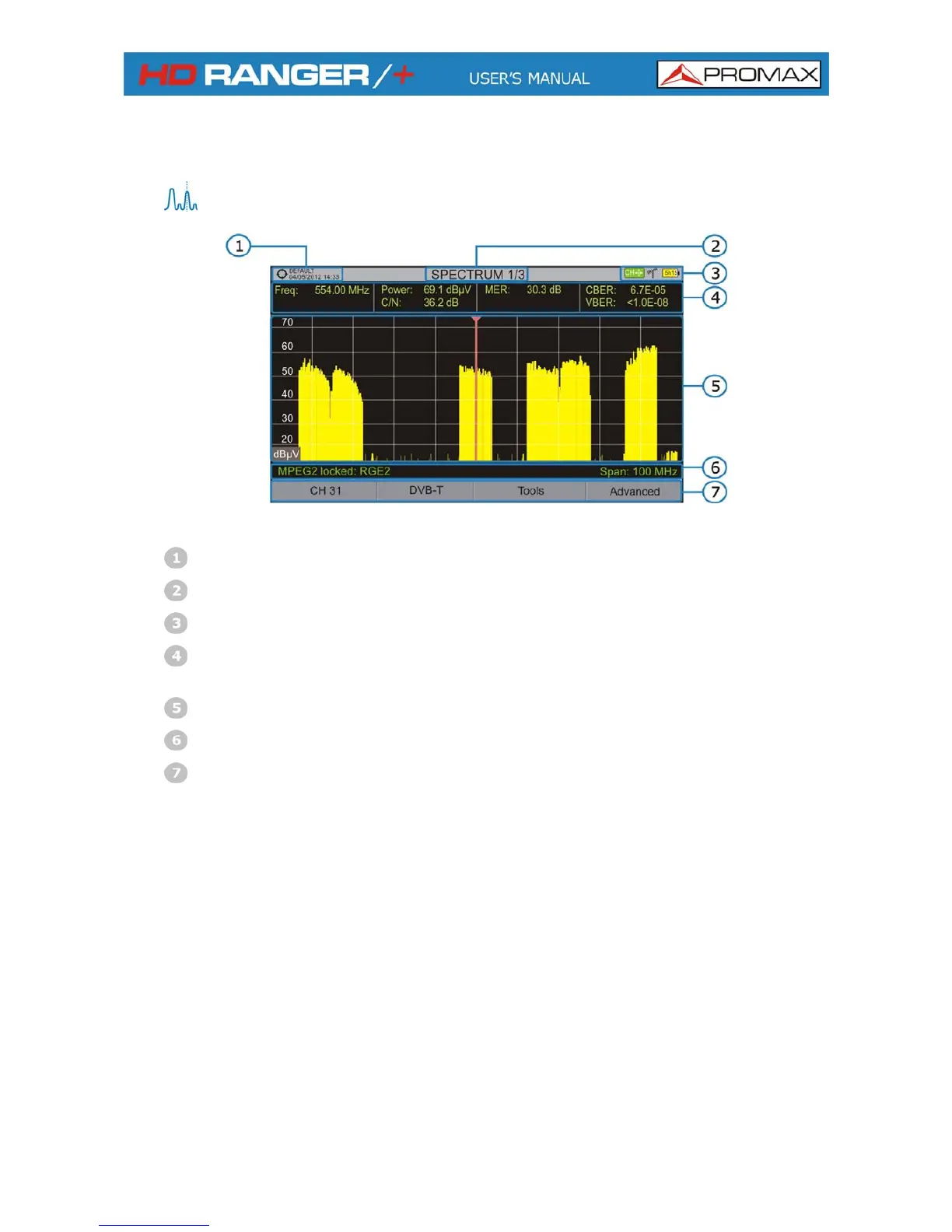

Figure 27.
Selected installation, date and time.
Number of view/total views.
Joystick active mode, selected band, battery level.
Measured values of the signal at the frequency/channel where is pointing
the cursor.
Spectrum in the band with the selected span.
Signal status (searching/locked multiplex name/selected span).
Softkeys menus.
► Joystick up/down: It changes the reference level.
► Joystick left/right (depending on the joystick active mode):
SP: SPAN change.
FR or CH: Frequency change or channel change.
MK: Marker change.
