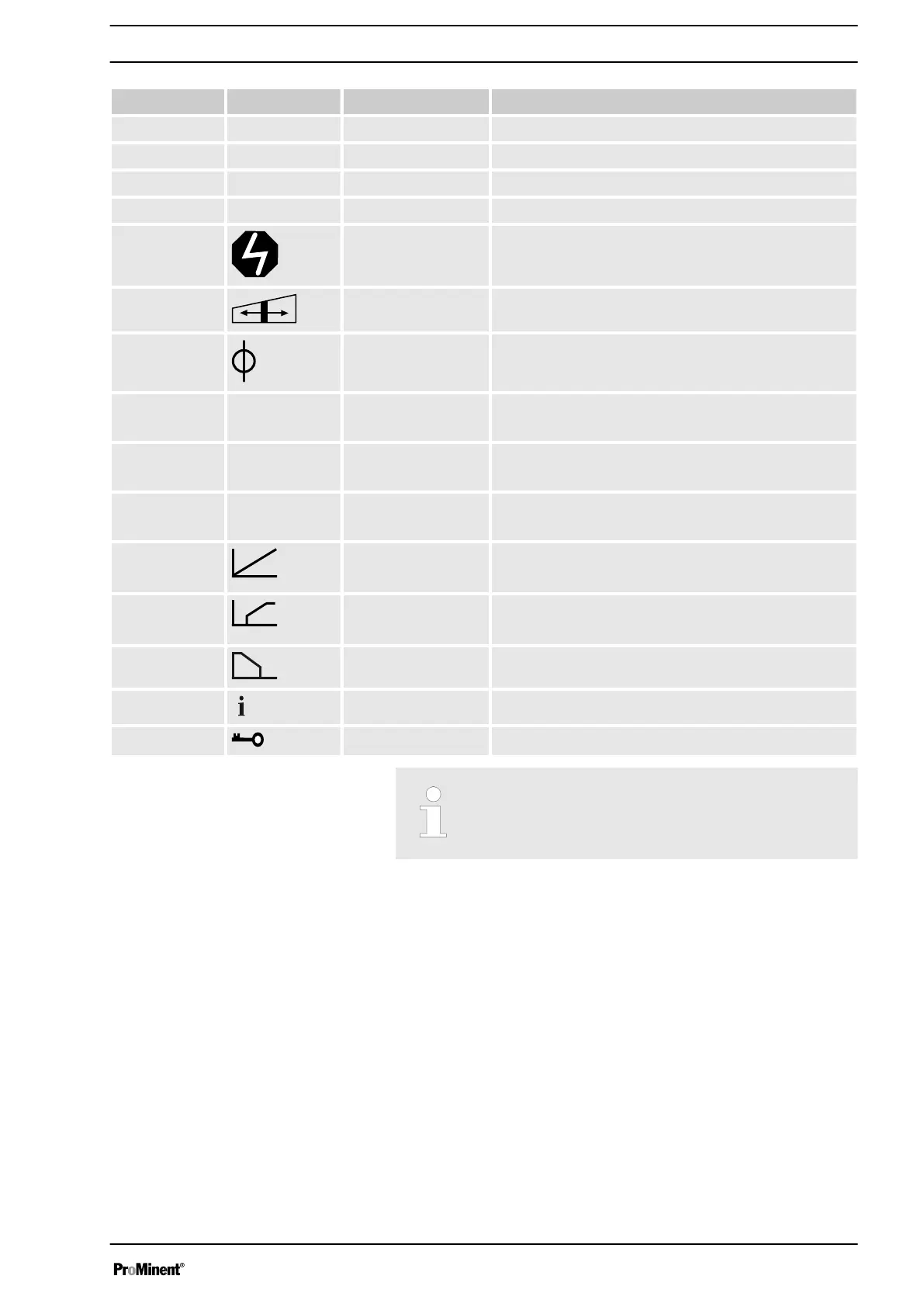

Field no. Icon Name Meaning
5 MANUAL
„Manual“ „Manual“ operating mode
5 CONTACT
„Contact“ „Contact“ operating mode
5 BATCH
„Batch“ „Batch“ operating mode
5 ANALOG
„Analog“ „Analog“ operating mode
9
Error A fault exists.
9 Stroke length adjust‐
ment
Deviation in the stroke length from the value set at the
time of the last locking of the setting menu.
9 Flow control A flow control is connected.
9
mm
Memory The pump is in operating mode
„Contact“ or „Batch“ and
the auxiliary function "Memory" is set.
9
0..200..20
0...20 mA The pump is in operating mode
„Analog“ . The pro‐
cessing type „0...20“ is set.
9
4..204..20
4...20 mA The pump is in operating mode
„Analog“ . The pro‐
cessing type „4...20“ is set.
9
Linear The pump is in operating mode „Analog“ .
The processing type „Curve“ - „Linear“ is set.
9 Upper sideband The pump is in operating mode
„Analog“ .
The processing type „Curve“ - „Upper sideband“ is set.
9
Lower sideband The pump is in operating mode
„Analog“ . The pro‐
cessing type „Curve“ - „Lower sideband“ is set.
10
Continuous display A continuous display appears on the LCD screen.
10 Security Security lock (if a code was set).
For identifiers which appear in response to errors, see
the "Troubleshooting" chapter.
