PROMISE Technology
TAsk 3: insTALLing Disk DRiVes
TheVessA2200s/A2200systemsupports:
• SATAharddisks
• 3.5-inchharddiskdrives
Foralistofsupportedphysicaldrives,downloadthelatestcompatibilitylistfromthe
PROMISEsupportwebsite.
Remove DRive SecuRity coveR
Toremovethesecuritycoverinfrontofthedrivebays:
1. Usethetubularkeytounlockthecover.Turncounterclockwisetounlock.
2. Slidethecovertotherightabout4mm.
3. Pullthecoverstraightbacktoremove.Becarefulnottodropthecover

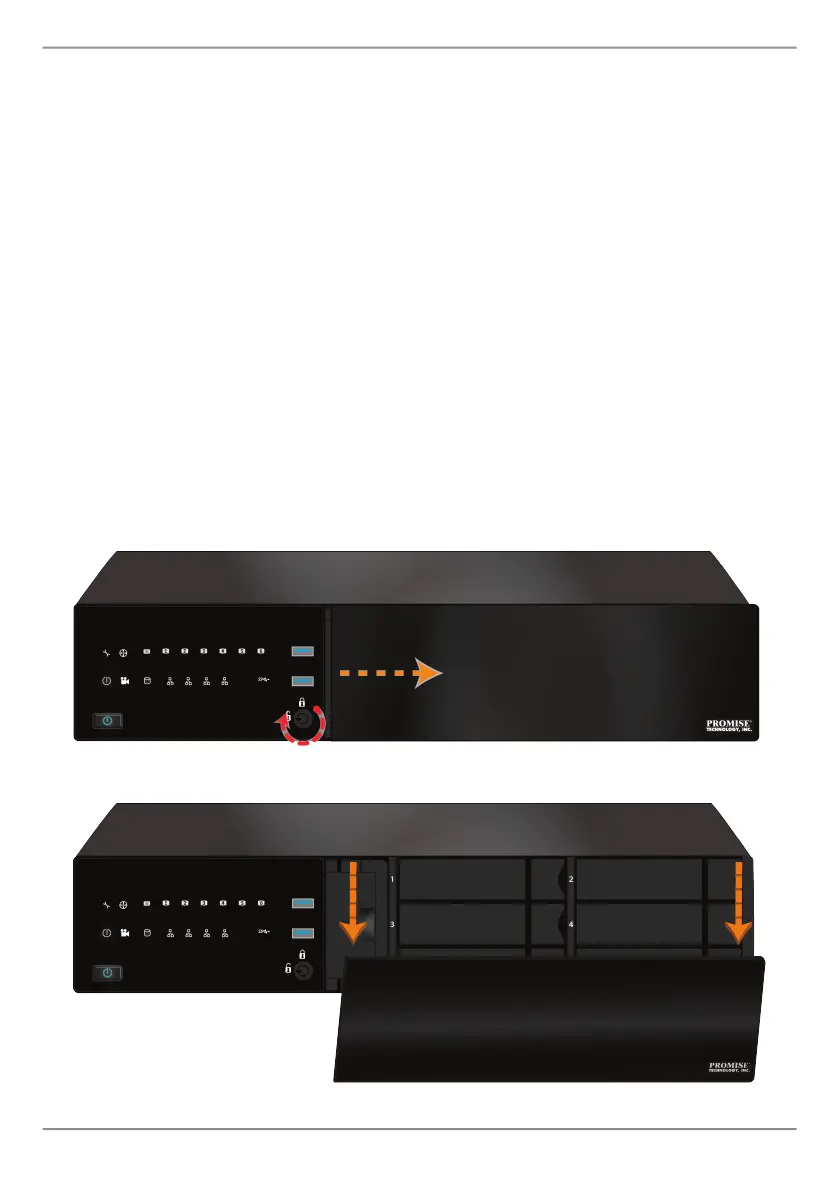

Figure 9: Open security cover
Figure 10: Pull back cover to remove
1. Unlock
2. Slide
3. Pull back
