Chapter 2: Inst
allation
15

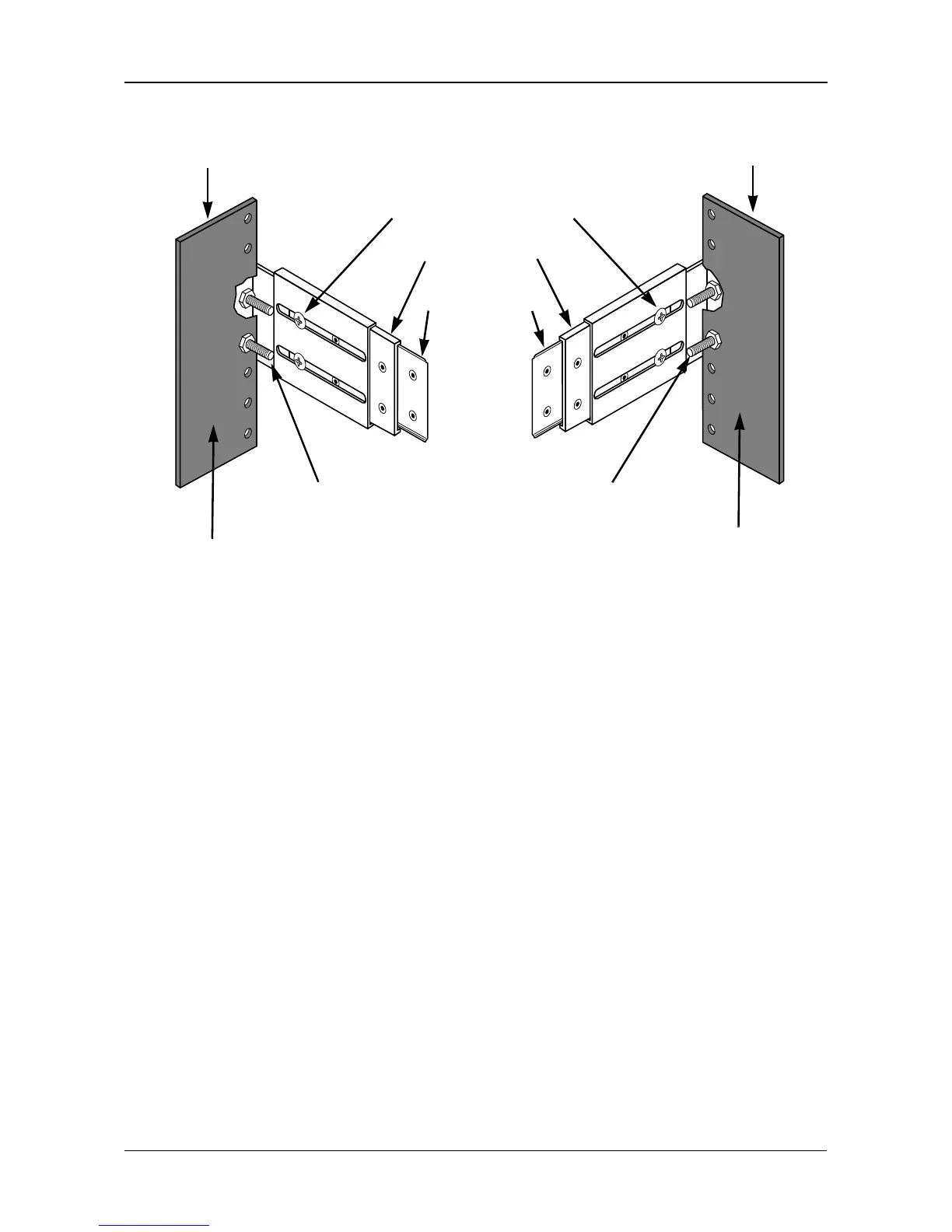

Figure
7.
Mounting ra
il instal
lation
In
side of
pos
t
Rack
front po
st
Rail att
a
ching
screw
(not i
ncluded
)
Rail adj
ustme
nt sc
rew
Moun
ting Rai
l
Rail at
t
achi
ng scr
ew
(not in
clude
d)
Ins
ide of
post
Rack
back
Sliding
plate
18
20
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1: Introduction
5
About this Manual
5
Overview
6
Architectural Description
8
Features and Benefits
9
Specifications
10
Warranty and Support
11
CE Statement
11
FCC Statement
11
GOST-R Statement
11
IRAM Statement
12
MIC Statement
12
Chapter 2: Installation
13
Unpacking the Vtrak
13
Mounting Vtrak J610S in a Rack
15
Mounting Vtrak J310S in a Rack
17
Installing Disk Drives
20
Drive Numbering
23
Setting up Data Cable Connections
24
Basic das Connection
26
Cascading das Connection
27
Redundant das Connection
29
Setting up Serial Cable Connections
31
Connecting the Power
32
Setting up the CLI Connection
33
Chapter 3: Management
35
Front Status Indicators
35
Drive Status Indicators
36
I/O Module Status Indicators
37
CLI Command Set
39
Cable Command
39
Enclosure Command
40
Information List
40
Viewing Information
40
Settings List
42
Making Settings
43
Help Command
43
Link Command
44
Viewing Link Status
44
Clearing the Error Count
46
Route Command
46
Route Troubleshooting
47
Uptime Command
47
VPDR Command
48
Command
48
Chapter 4: Support
49
Frequently Asked Questions
49
Contacting Technical Support
50
Limited Warranty
53
Returning Product for Repair
54
Appendix A: Second I/O Module
57
Index
59
