Reference MVI56E-GSC/GSCXT ♦ CompactLogix or MicroLogix Platform
User Manual Enhanced Generic ASCII Serial Communication Module
Page 116 of 140 ProSoft Technology, Inc.
April 24, 2017

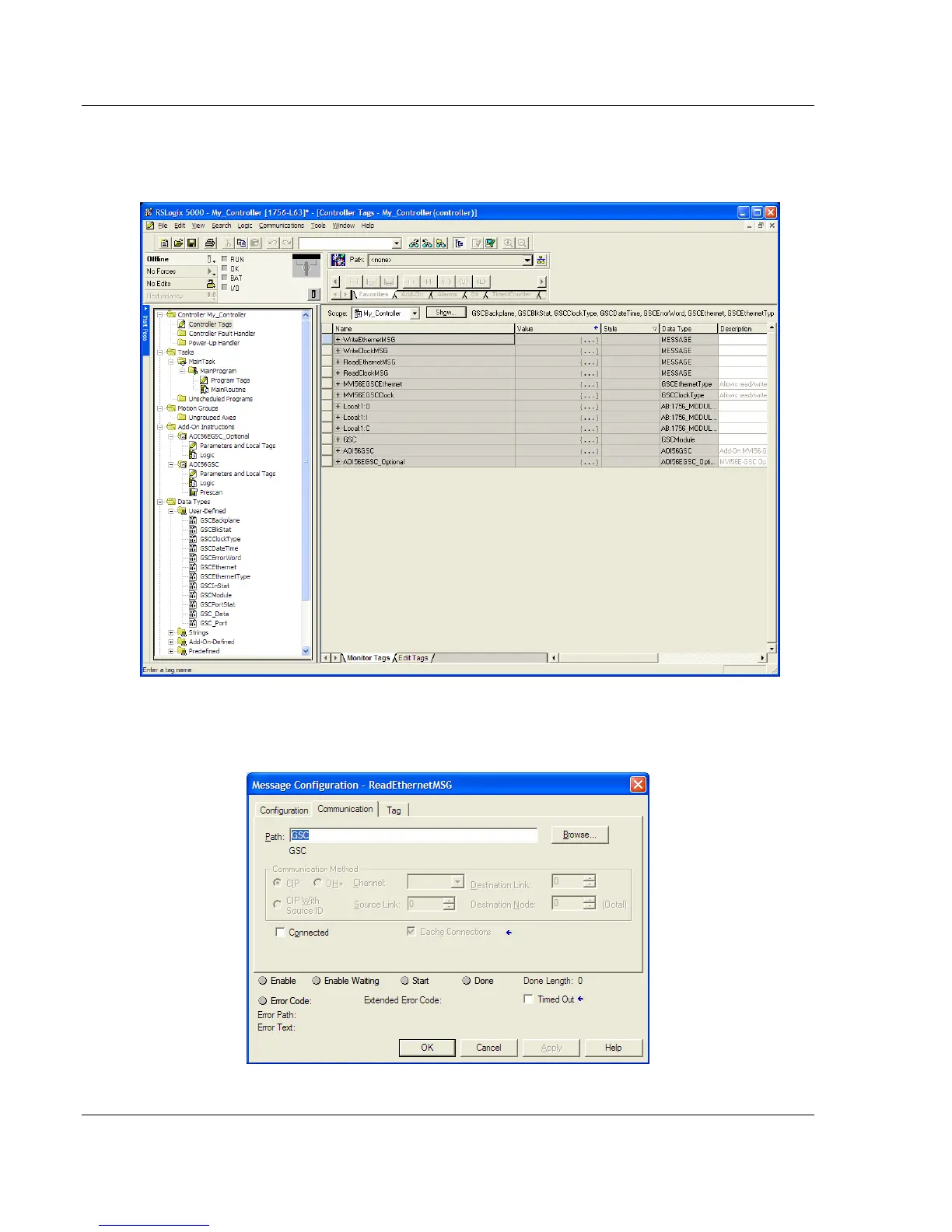

You will notice that new tags have been imported: four MESSAGE tags:
WRITEETHERNETMSG, WRITECLOCK.MSG, READCLOCKMSG, and
READETHERNETMSG tags.
4 In the Optional Add-On Instruction, click the [...] button next to each MSG tag
to open the MESSAGE CONFIGURATION TAG.
5 Click the COMMUNICATION tab and click the BROWSE button as follows.
