4.6.5 Writing the Ethernet Settings to the Module

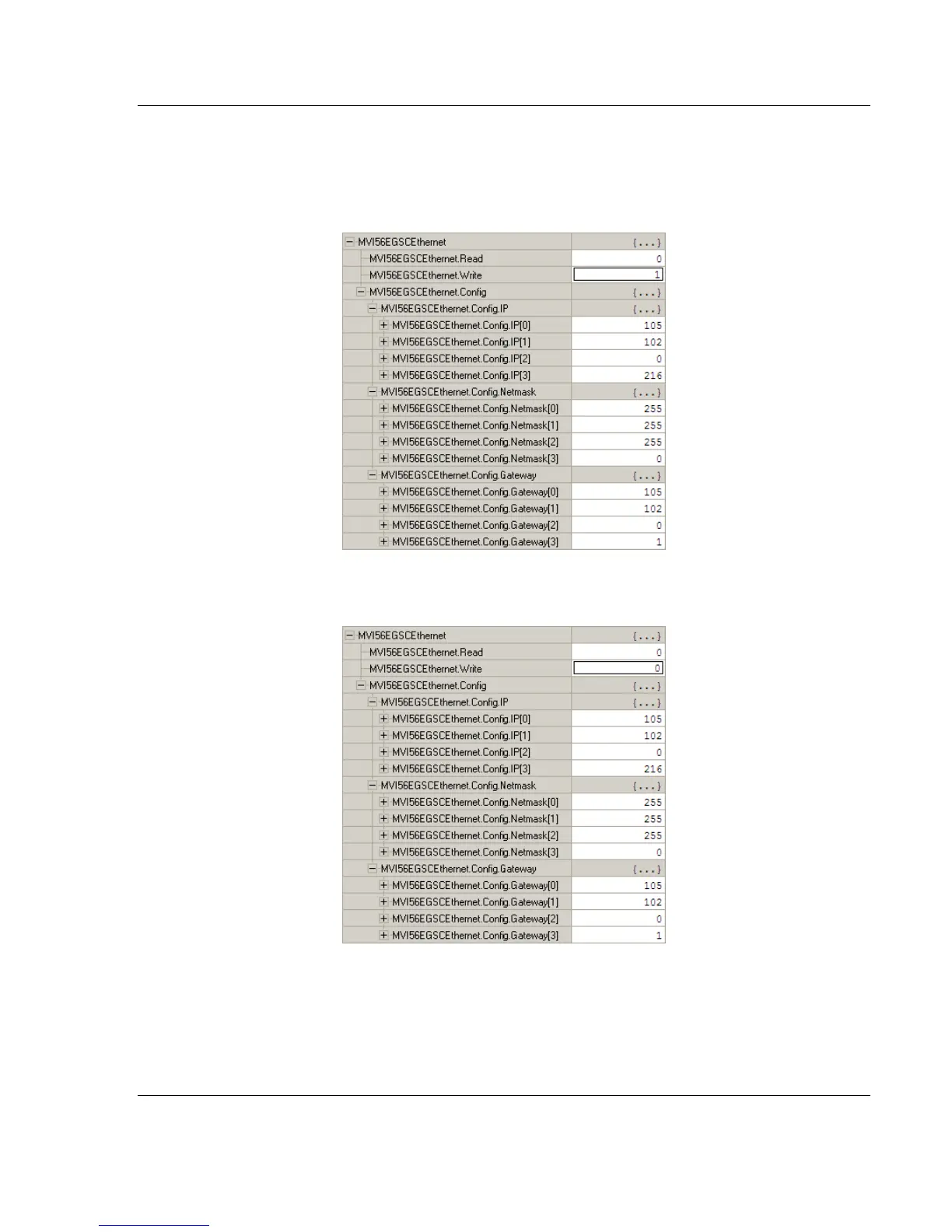

1 Expand the MVI56GSCETHERNET controller tag.
2 Set the new Ethernet configuration in MVI56GSCETHERNET.CONFIG
3 Move a value of 1 to MVI56GSCETHERNET.WRITE
4 After the message is executed, the MVI56GSCETHERNET.WRITE bit resets to
0.
