5 Click OK to save the updated Ethernet configuration.

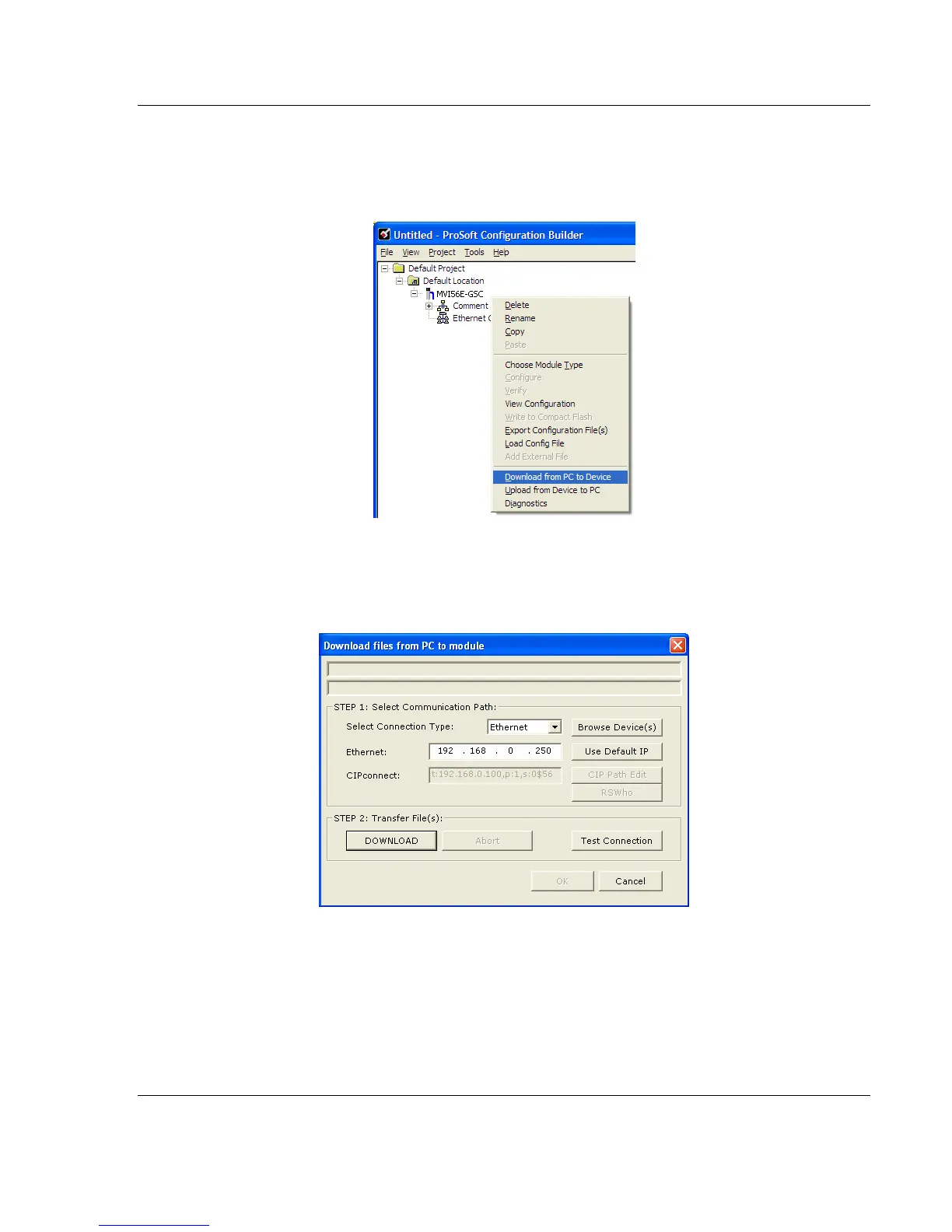

6 Next, select the MVI56E-GSC icon, and then click the right mouse button to
open a shortcut menu. On the shortcut menu, choose DOWNLOAD FROM PC
TO DEVICE.
This action opens the DOWNLOAD dialog box. Notice that the Ethernet
address field contains the temporary IP address you assigned previously.
ProSoft Configuration Builder will use this temporary IP address to connect to
the module.
Click TEST CONNECTION to verify that the temporary IP address is correct.
7 If the connection succeeds, click DOWNLOAD to transfer the Ethernet
configuration to the module.
