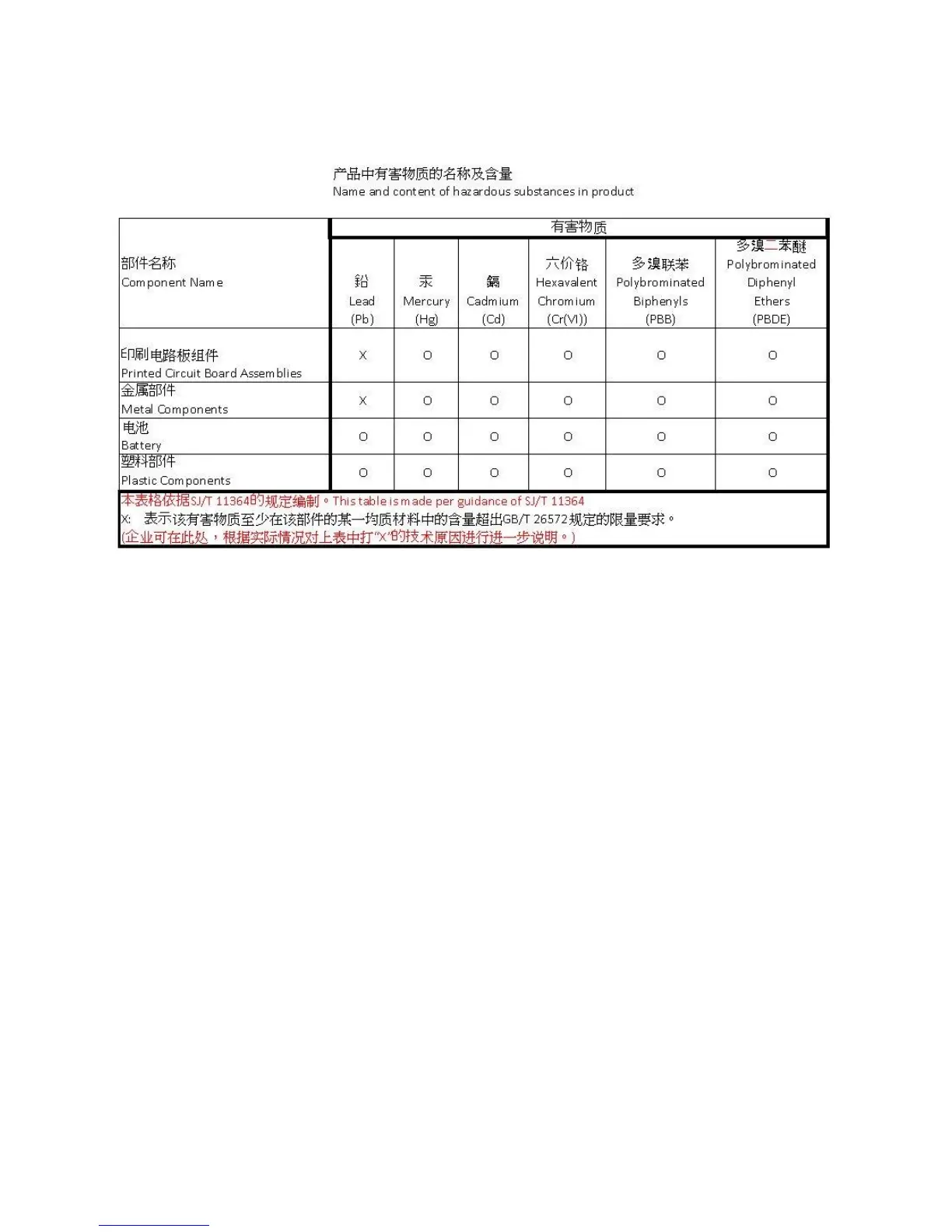

China RoHS Hazardous Material Declaration Table
Electrical Ratings
 Backplane Current Load: 800 mA @ 5 VDC; 3 mA @ 24 VDC
 Operating Temperature:
0°C to 60°C (32°F to 140°F) - MVI56E-GSC
-25°C to 70°C (-13°F to 158°F) - MVI56E-GSCXT
 Storage Temperature: -40°C to 85°C (-40°F to 185°F)
 Shock: 30 g operational; 50 g non-operational; Vibration: 5 g from 10 to 150 Hz
 Relative Humidity 5% to 95% (without condensation)
 All phase conductor sizes must be at least 1.3 mm (squared) and all earth ground conductors must be at least
4mm (squared).
Label Markings
<Ex>
II 3 G
Ex nA IIC T4 Gc
0°C <= Ta <= 60°C
-25°C <= Ta <= 70°C (XT models only)
II – Equipment intended for above ground use (not for use in mines).
3 – Category 3 equipment, investigated for normal operation only.
G – Equipment protected against explosive gasses. <cULus>
E183151
Class I, DIV 2, groups A,B,C,D
T5 for all models
0°C to +60°C
-25°C to +70°C (XT models only)
