MVI56E-GSC/GSCXT ♦ CompactLogix or MicroLogix Platform Start Here
Enhanced Generic ASCII Serial Communication Module User Manual
ProSoft Technology, Inc. Page 31 of 140
April 24, 2017

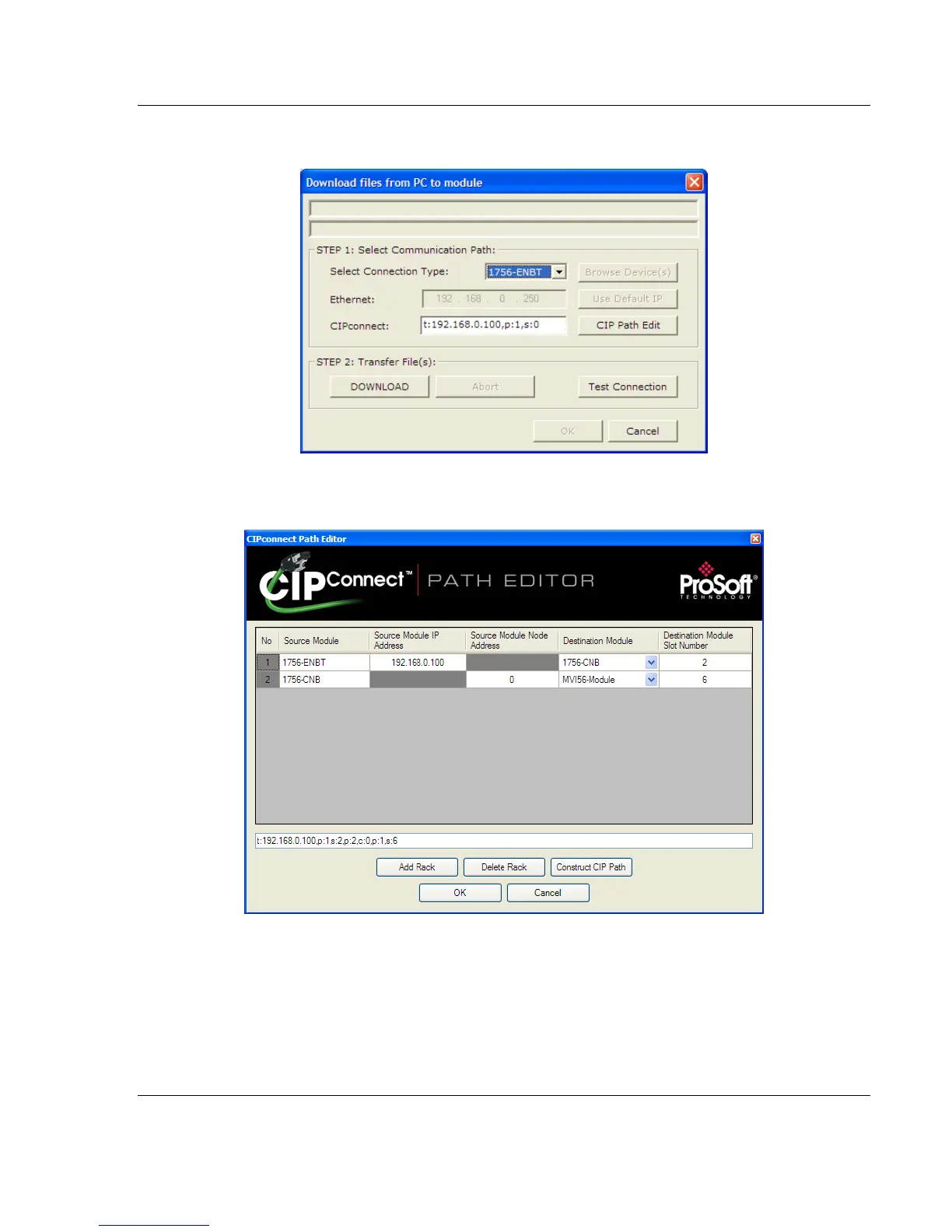

1 In the Download window, click CIP PATH EDIT.
2 Configure the path as shown in the following illustration for this example and
click CONSTRUCT CIP PATH to build the path in text format.
Click OK to close the CIP PATH EDITOR and return to the DOWNLOAD dialog
box.
