ProSun V3 - T-Max Timer Wiring; Speaker Cable Connection Details

47
MARK76V3002 Rev 3
Pin 1
neutral
J3 Contact
Power 9-12 V
Daisy Chain
Wireless
adaption
connection
Pin 3
live

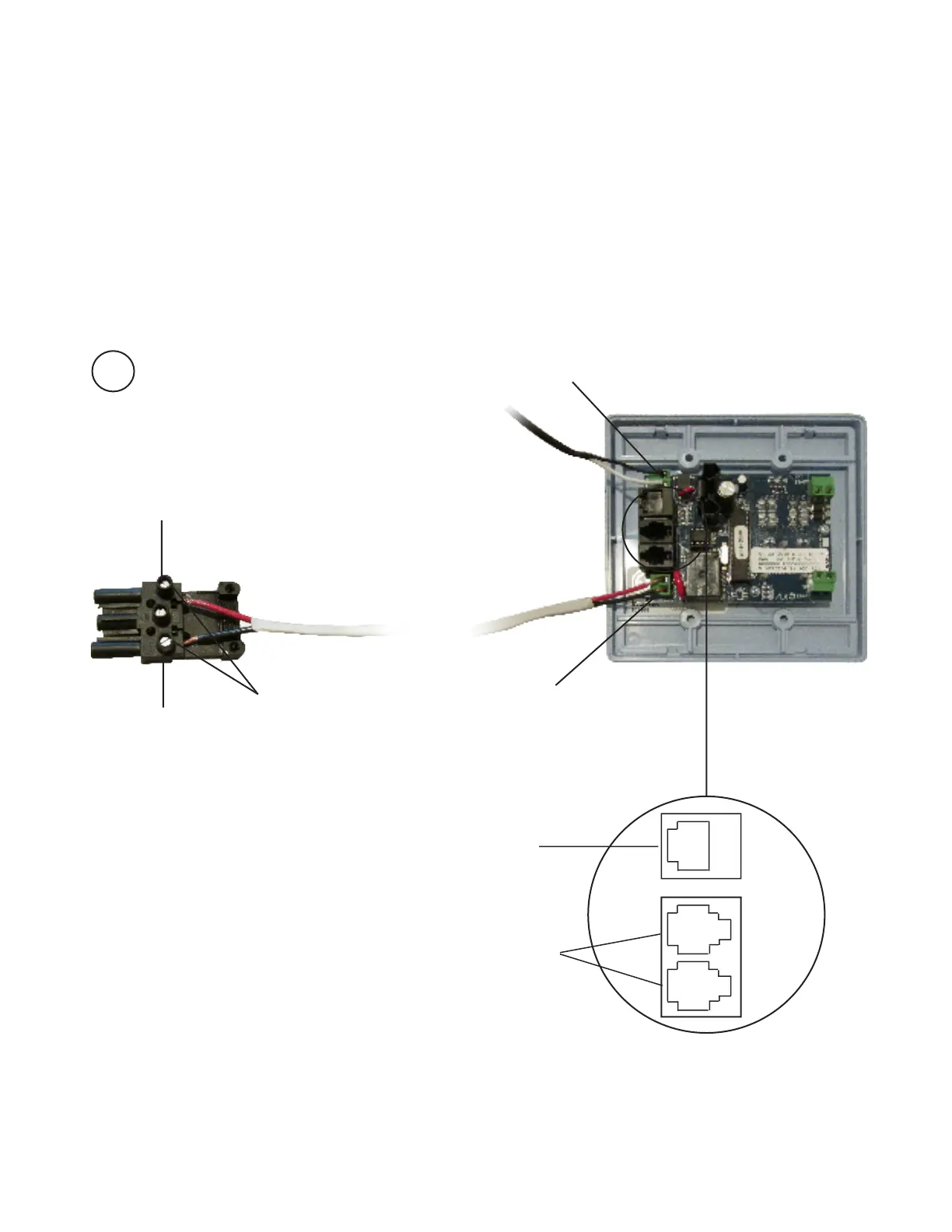

You will need an 18/2 speaker cable.
Insert one end of the 18/2 cable into the J3 Contact on the back of the T-Max. Insert the other
end into Pins 1 and 3 on the male part. Tighten screws to hold cables in place.
**Make sure that the 18-2 cable is long enough to reach from bottom of the tanning bed to the
location of the T-Max timing display.
3
Tighten screws once
cables are inserted
