10.2 Connecting The Batteries
Next, connect two new and fully charged 12V 2.2Ah Valve Regulated Sealed Lead Acid Batteries
(SLA) in series as shown in figure 12.1

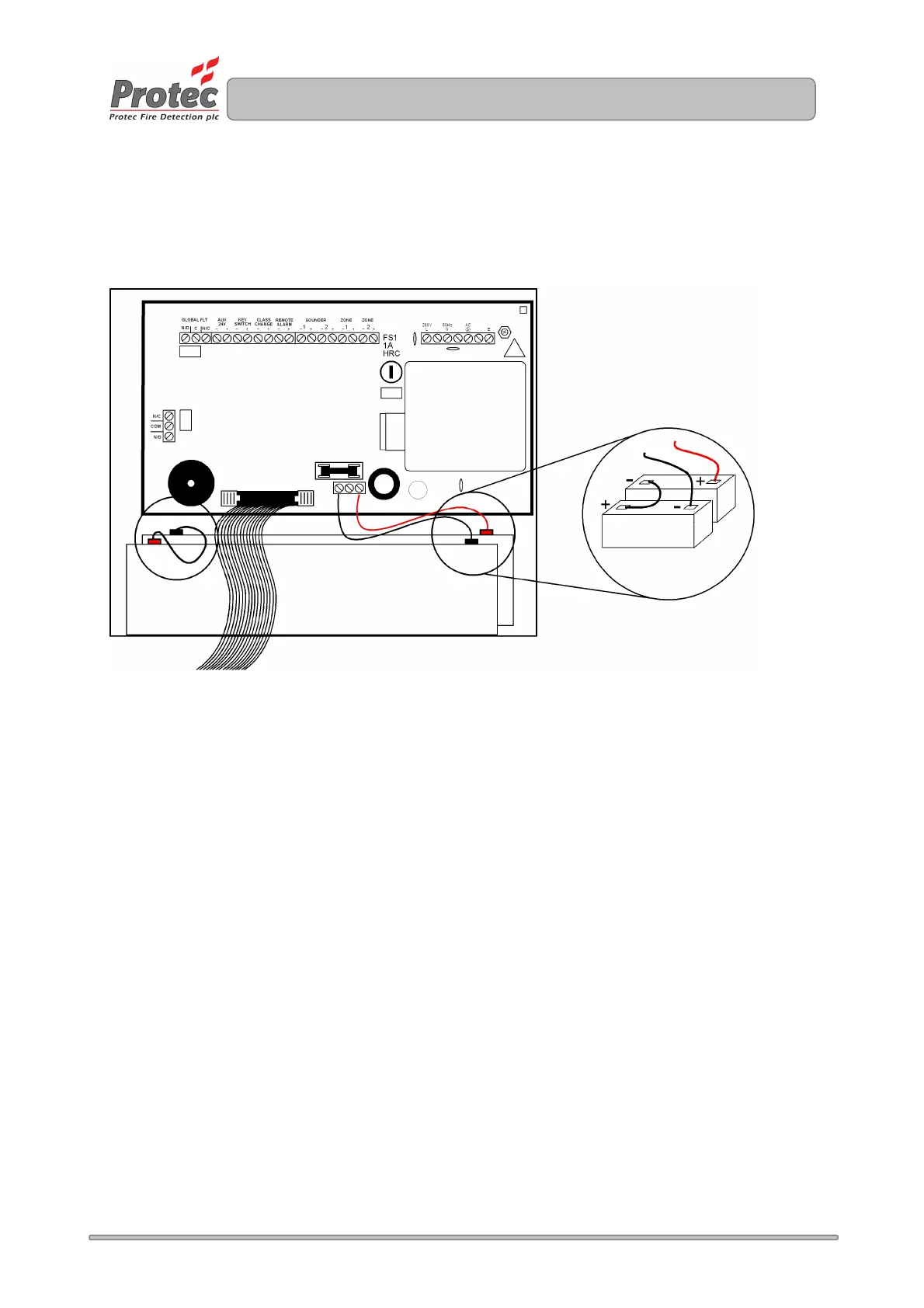

Figure 12.1 Installation of Standby batteries
10.3 Switching On
Switch the fused isolator ‘ON’. The ‘Supply Present’ indicator will illuminate on the front of the panel.
Assuming all other connections are correct and the end of line units are present (and correct), no other
faults should be displayed.
The 3200 is now ready to be programmed.
