93-331-73 Issue 2 Page 29 of 32 © Protec Fire Detection PLC 2013
Appendix 3 - 3200 Main PCB. Details

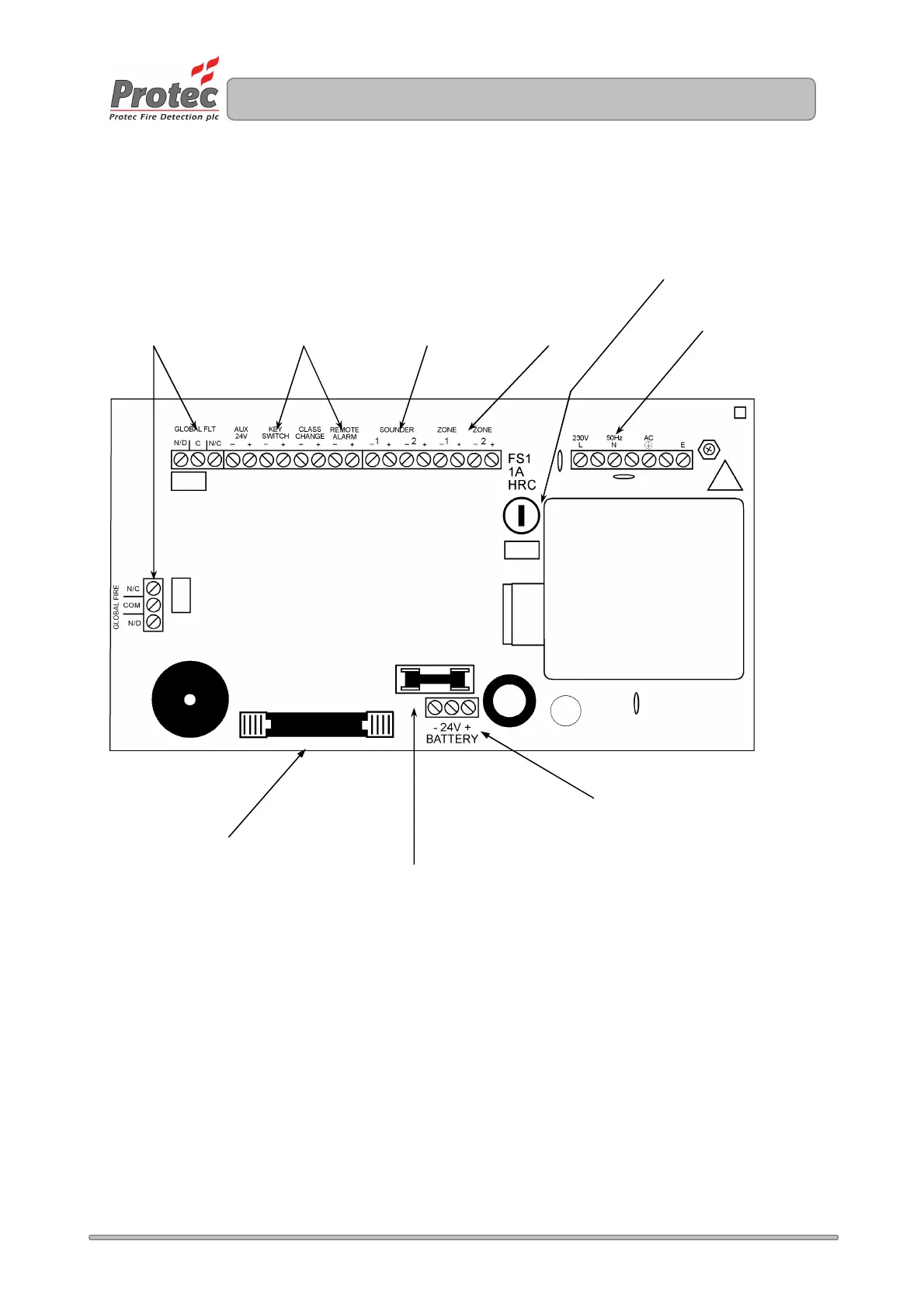

The diagram below shows the 3200 main PCB. highlighting the main connections.
Mains power input
Detector
connections
Sounder
connections
Auxiliary input
connections
Mains Fuse (1Amp. HRC.)
Battery fuse (1 Amp. F)
Standby Battery Input
(24V dc.)
Display board connector
Clean contact
connections
