12.1 Programming Zone Disablements
One or both of its detector zones can be disabled. When a zone is disabled both faults and activations
are inhibited.
1. From access level 1 enter the 5 digit user code 1 3 4 4 2. The ‘Level 2 Accessed’ indicator
will illuminate.
2. Press button 2 once – The ‘General Disablement’ indicator will illuminate to show the zone
disablement option is selected (the normal front panel display is temporarily replaced with the
programming display). Any current disablements will be displayed on the zone fire indicators.
3. Press button 1 (zone 1) or button 2 (zone 2) to toggle - disabled / not disabled.
4. Press button 4 to accept and program the disablement set-up and return to access level 2.
5. Press button 4 to return back to access level 1.
The yellow ‘General Disablement’ indicator will be illuminated steady, together with the yellow
disablement indicator for the relevant zone(s).

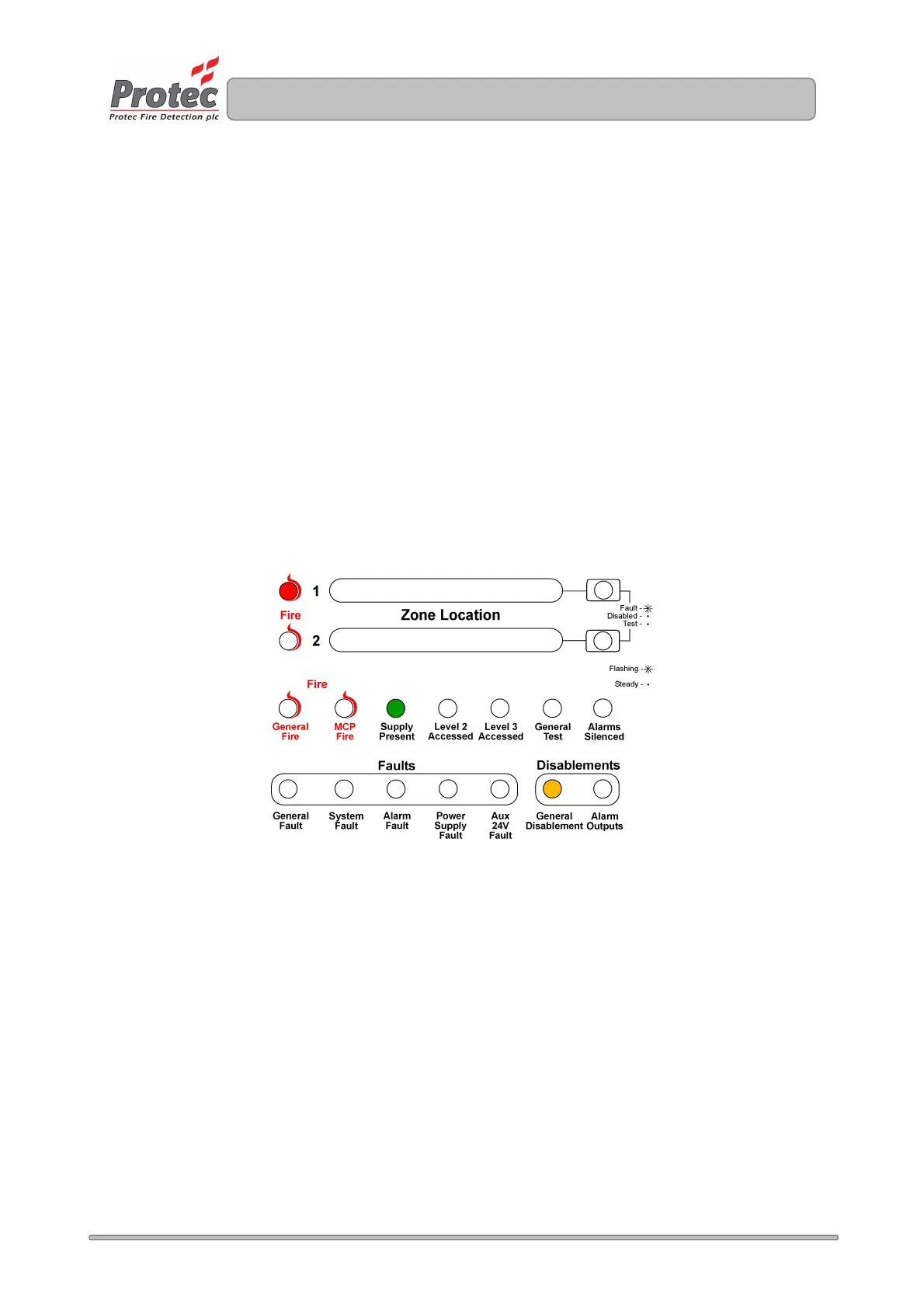

Figure 14.0. Example of the display when disabling zone 1.
