PS Engineering
PMA8000G IntelliAudio Audio Selector Panel With flightmate®
Installation and Operator’s Manual
200-890-0912 Page 2-11 Rev. 7, July 2017

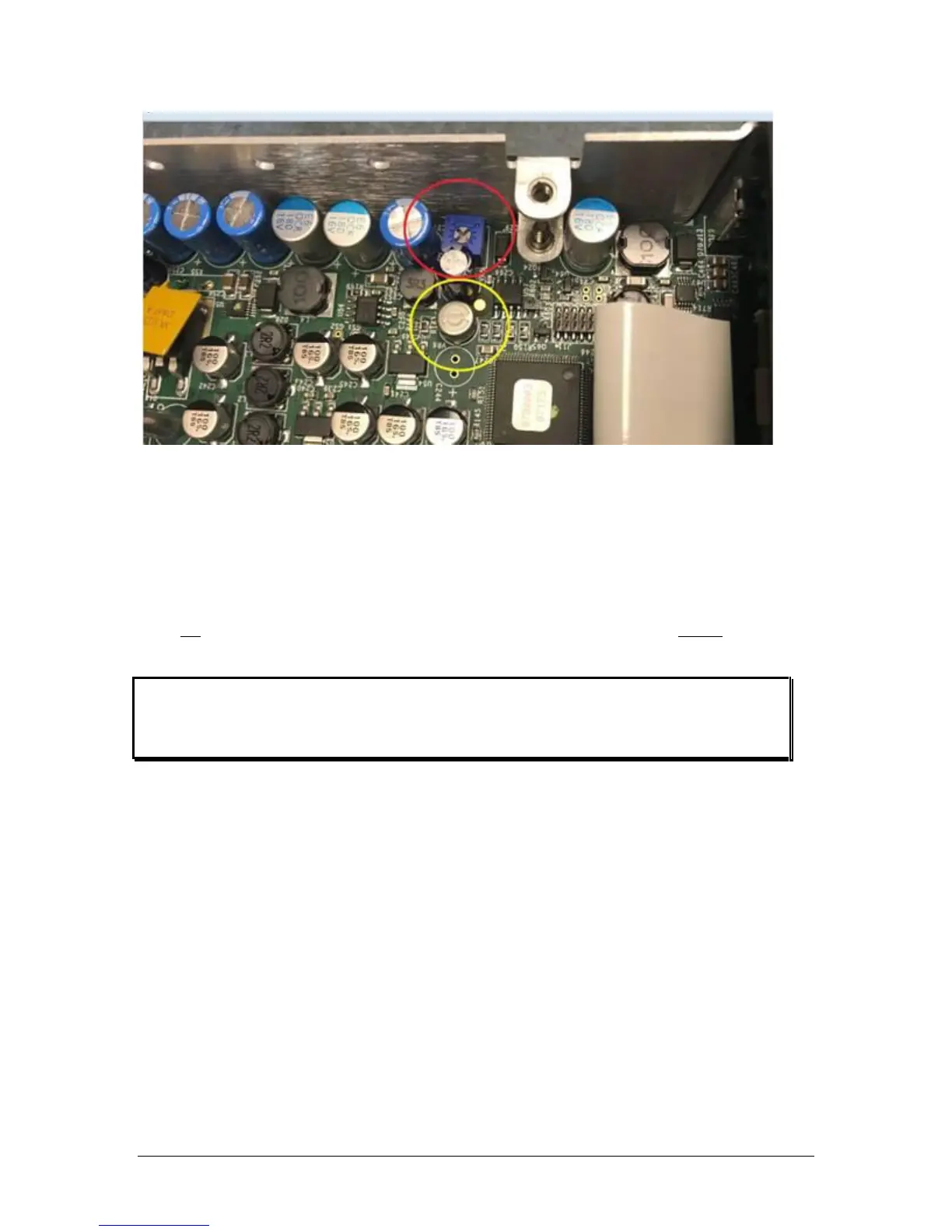

Blue color pot is VR5 and will adjust the white brightness if you turn the pot “counter clockwise”
White color pot is VR6 and will adjust the green brightness if you turn the pot “clockwise”
Both pots are set from factory at midscale.
2.9 Communications Antenna Installation Notes
For best results while in Split Mode, it is recommended that the one VHF communications antenna is locat-
ed on top of the aircraft while the other communications antenna is installed on the bottom. Any antenna
relocation must be accomplished in accordance with AC 43.13-2B, aircraft manufacturers’ recommenda-
tions and FAA-approved technical data.
WARNING
It is probable that radio interference will occur in the split mode when the frequencies of the two air-
craft radios are adjacent, and/or the antennas are physically close together. PS Engineering makes no
expressed or implied warranties regarding the suitability of the PMA8000G in Split Mode.
