PS Engineering PMA8000G User Manual

PS Engineering
PMA8000G IntelliAudio Audio Selector Panel With flightmate®
Installation and Operator’s Manual
200-890-0912 Rev. 7, July 2017

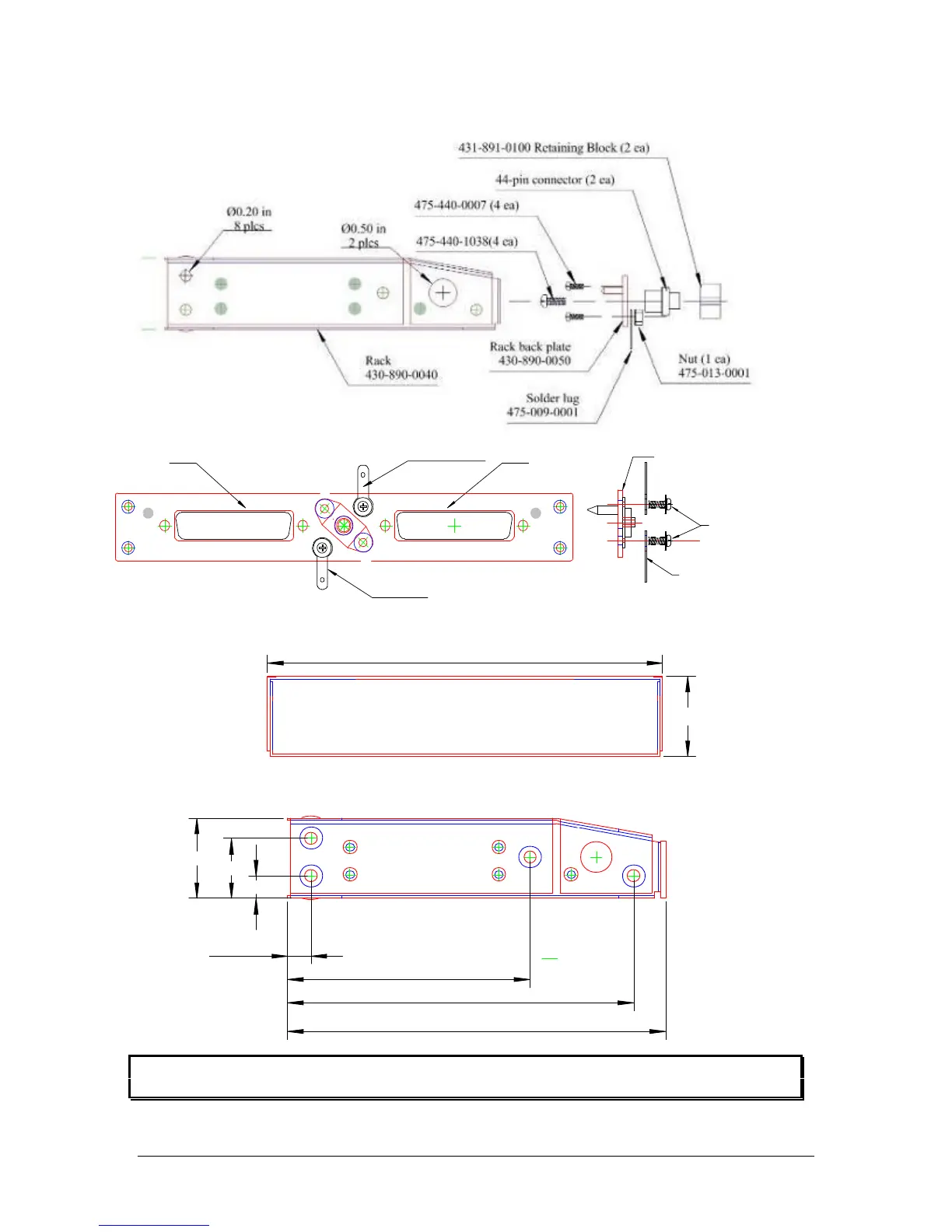

Appendix B – PMA8000G Installation Drawings
J2 J1
Viewed from Back
15
30
44
1
16
31
15
30
44
1
16
31
Ground Lug
Ground Lug
475-440-0001 (x2)
Back plate assy
475-009-0001
ground lug (x2)
475-440-0001 (x2)
Screw w/washer
Ground lug detail
Rear plate detail (not to scale)
0.37in
3.87in
5.53in
6.04in
0.36in
0.96in
1.28in
6.31in
1.28in
Caution: Apply steady pressure to the bezel while screwing the unit into the tray to
ensure even seating of the unit and connectors.
