 CADDY WOOD/ELECTRIC
5

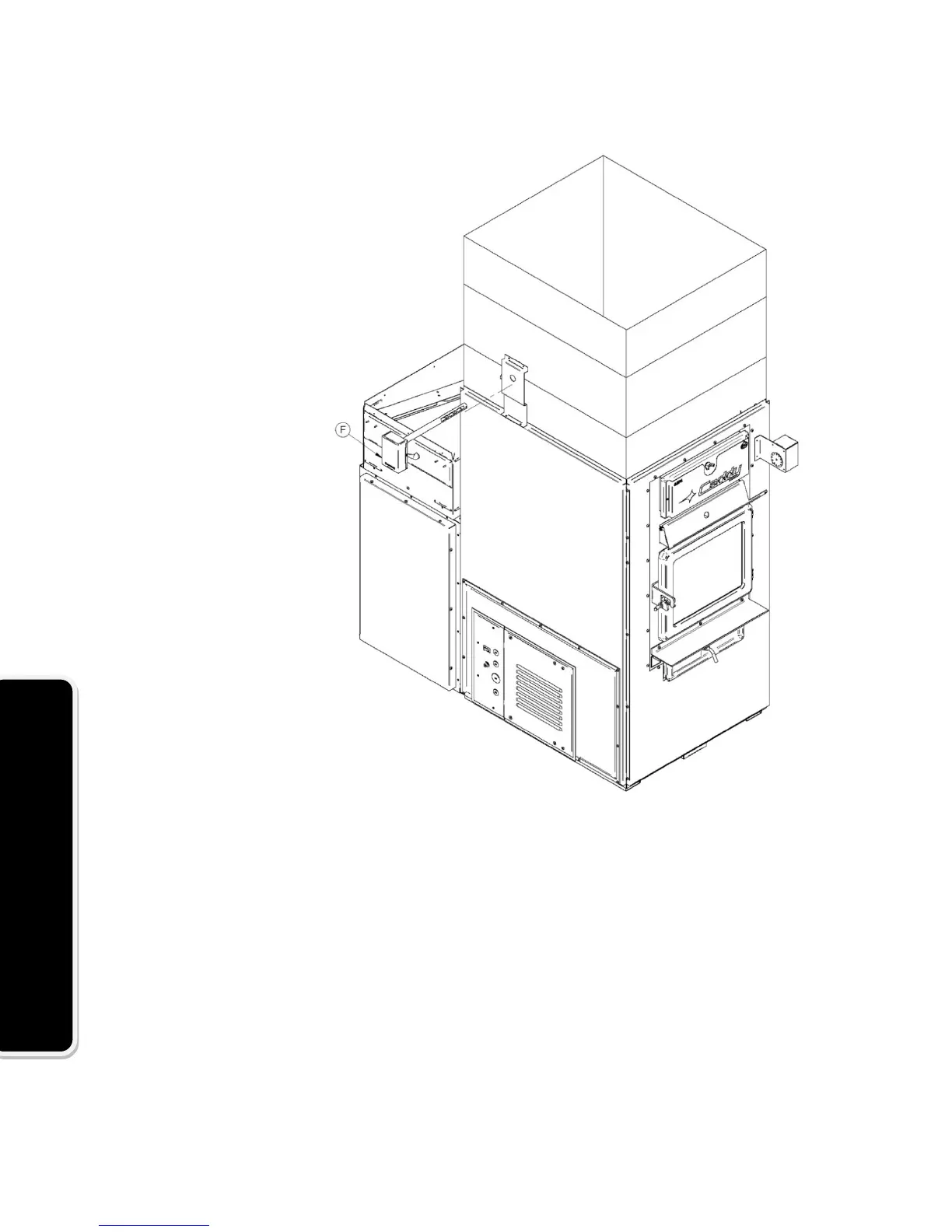

Remove the fan limit
control’s cover (F).
Secure the fan limit
control bracket
provided with your
furnace, on the top
edge of the left or
right side of the unit
(two holes on each
side have already
been drilled on the
edges of the
furnace). Drill a hole
in the plenum,
across from the hole
in the support
bracket. Slide the
fan limit control’s
probe in the opening
on the support
bracket and into the
plenum. Secure the
fan limit control (G)
on the support
bracket with self-
taping screws, not
provided.
