59
CADDY WOOD/ELECTRIC
6
Using a flat screwdriver, remove the three knockouts located on the left electric
element panel. Remove also the knockout on the right lower corner on the back
of the furnace.

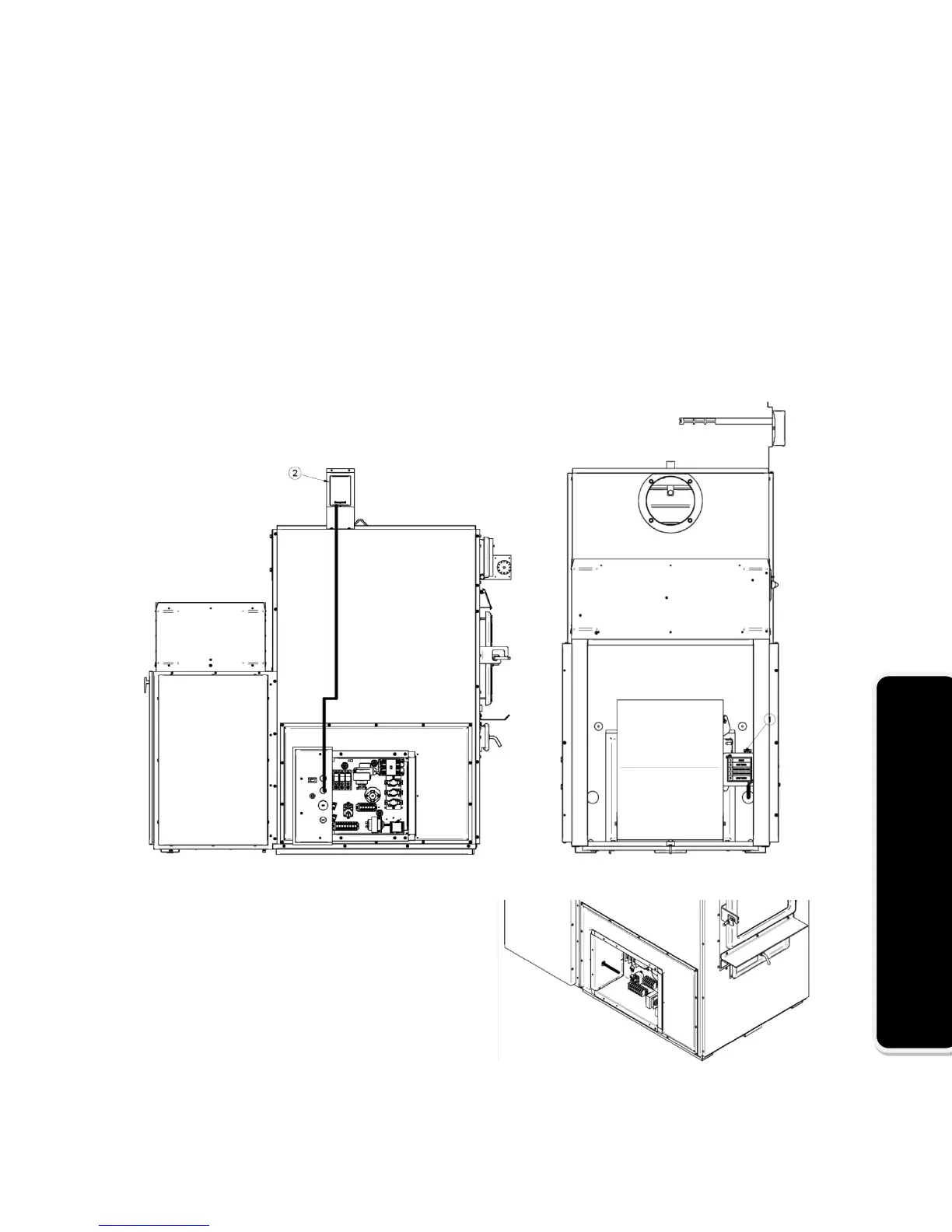

Run the long “BX” cable from the fan limit control (2) through the middle opening
made on the electric element panel.
Run the short “BX” cable from the blower (1) through the opening made on the
right lower corner on the back of the furnace to the electric element, as illustrated
below.
