CADDY WOOD/ELECTRIC
7
Run an 18-2 cable
(not supplied) from
the thermostat (3)
included with your
furnace through the
top opening made in
Step 6.
Run an 18-2 cable
(not supplied) from
the thermostat (4)
included with your
electric element
through the top
opening made in Step
6.
Run an 18-2 cable
(not supplied) from
the servomotor (5)
through the top
opening made in Step
6.

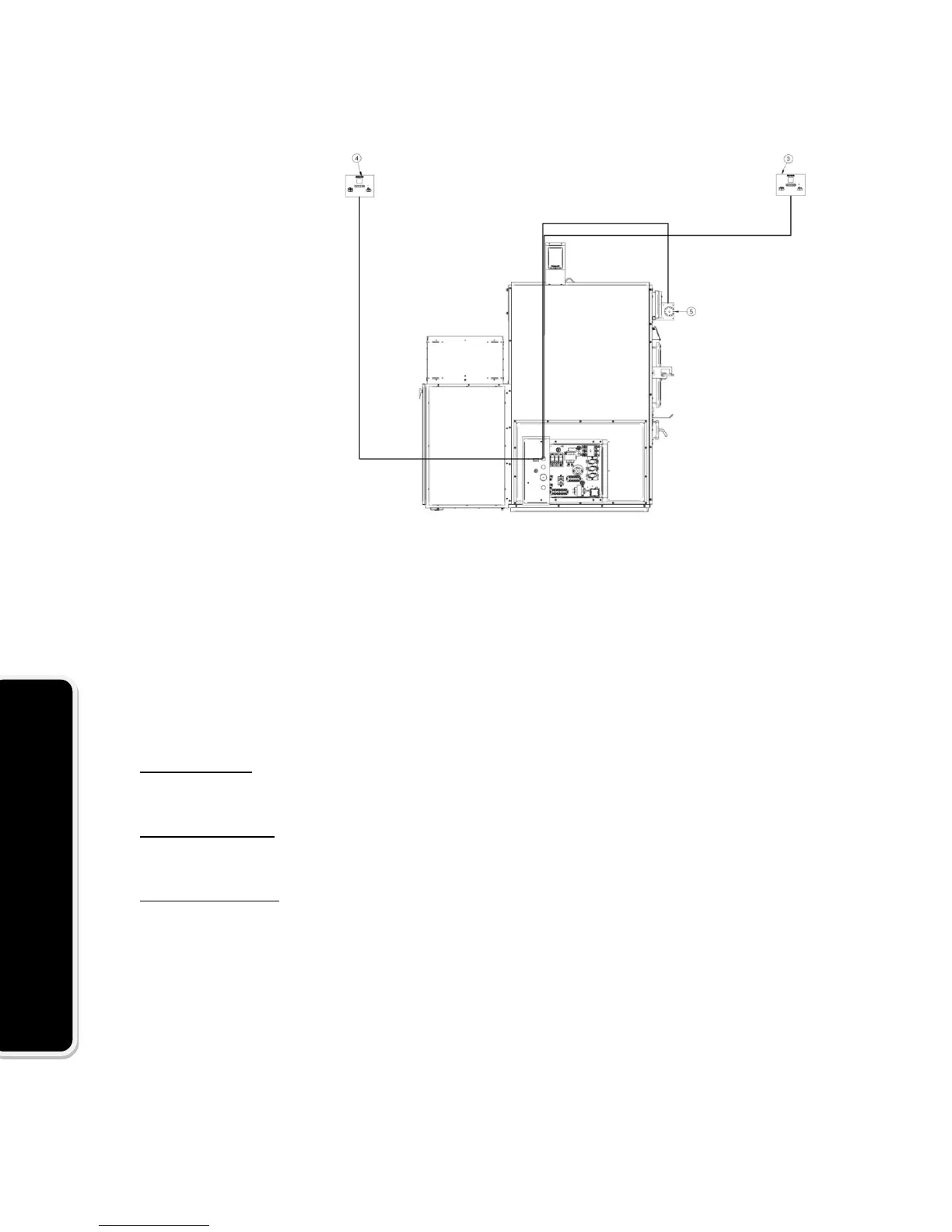

Here's where the cables from Steps 6 and 7 should go through the left electric
element access panel.
Top knockout
:
Cables coming from both thermostats and from the servomotor.
Middle knockout:
Cable coming from the fan limit control.
Bottom knockout
:
Cable coming from the blower.
The short “BX” cable from the blower will come from inside the blower box
through the opening made on the right lower corner on the back of the furnace to
the electric element (see Step 6).
