VLAN Port Setting

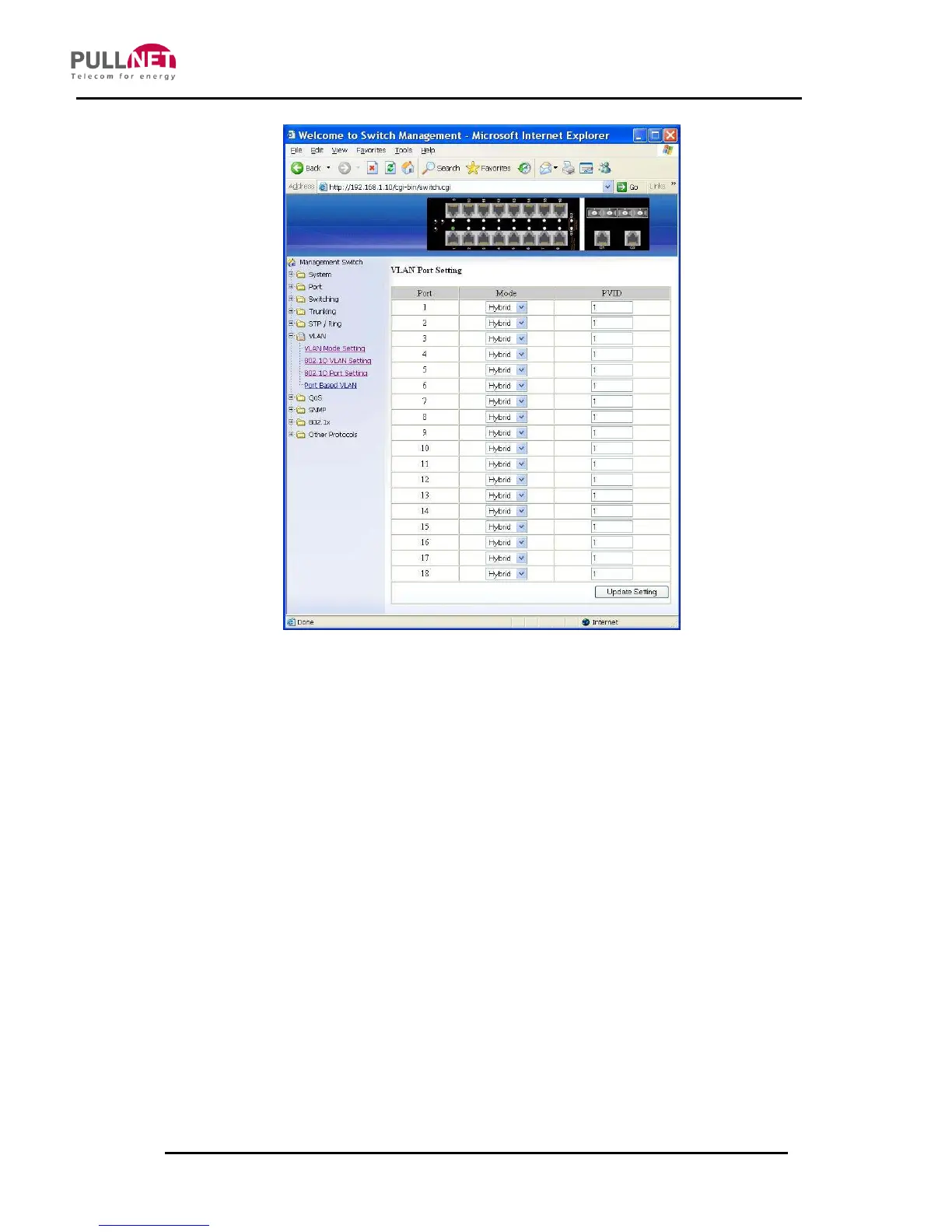

1. VLAN Port Setting: Click on the “VLAN Port Setting”. The “VLAN Port Setting”
window becomes then displayed.
2. Mode: Click on the “Mode” drop-down menu to select “Access”, “Trunk”, or
“Hybrid”, on port-basis. The port will be a Tag port if you choose “Trunk” Mode,
for a given port. And the port will be a Tag or Untagged port if you choose
“Hybrid” Mode for a given port.
3. PVID: Click on the “PVID” textbox and specify a new PVID number, on port-
basis.
4. Update Setting: Click on the “Update Setting” button after finishing the VLAN
Port Setting procedure.
