AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE
Ed. Jun-2012 Proprietary information 58 of 89

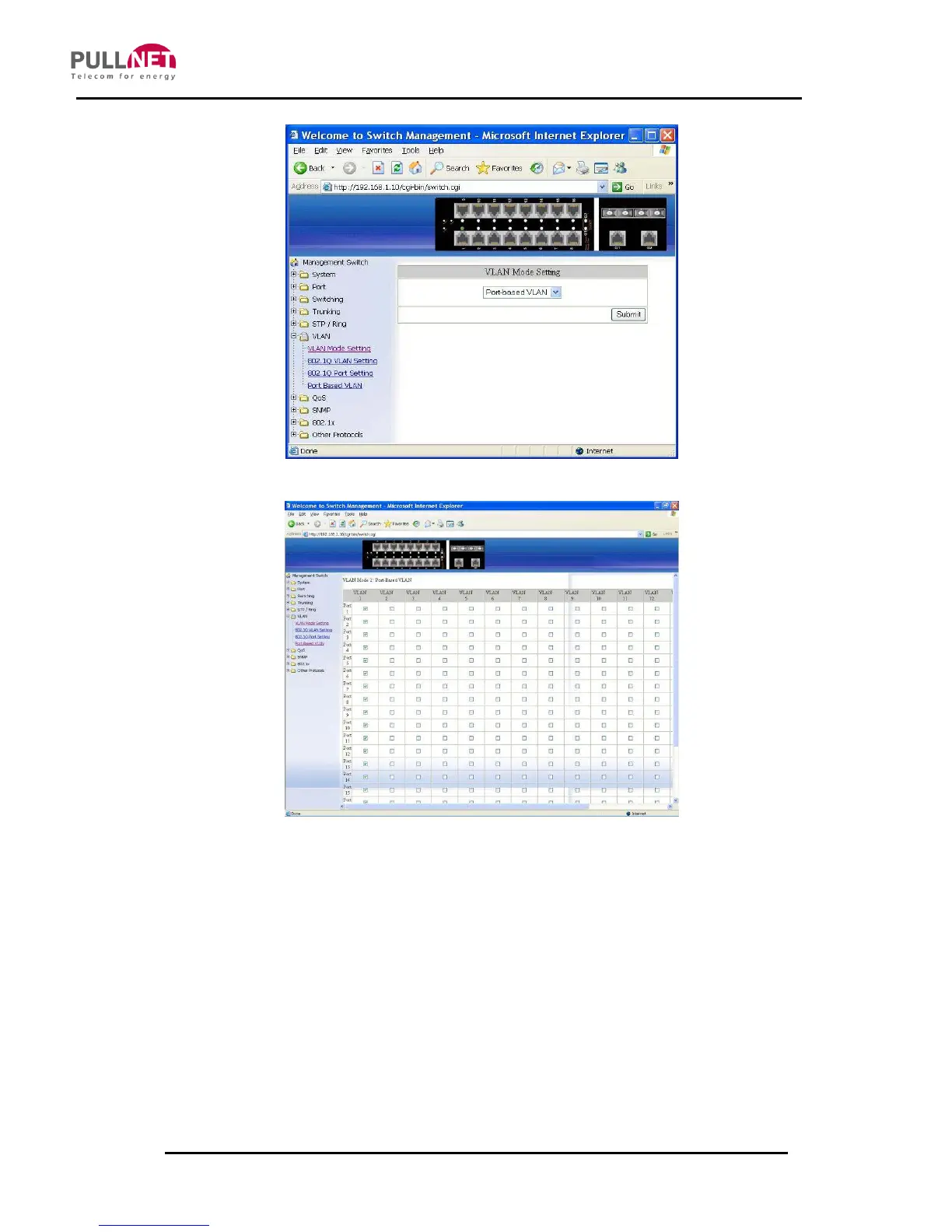

Port Based VLAN
1. VLAN: Select the ports to be added to or deleted from the VLAN.
2. Select all: Click on the “select all” button to choose all Port 1 ~ Port 18 to be
added to the VLAN.
3. Delete all: Click on the “delete all” button to choose all Port 1 ~ Port 18 to be
deleted from the VLAN.
4. Submit: Click on the “Submit” button after finishing the Port Based VLAN
settings.
