Page 6

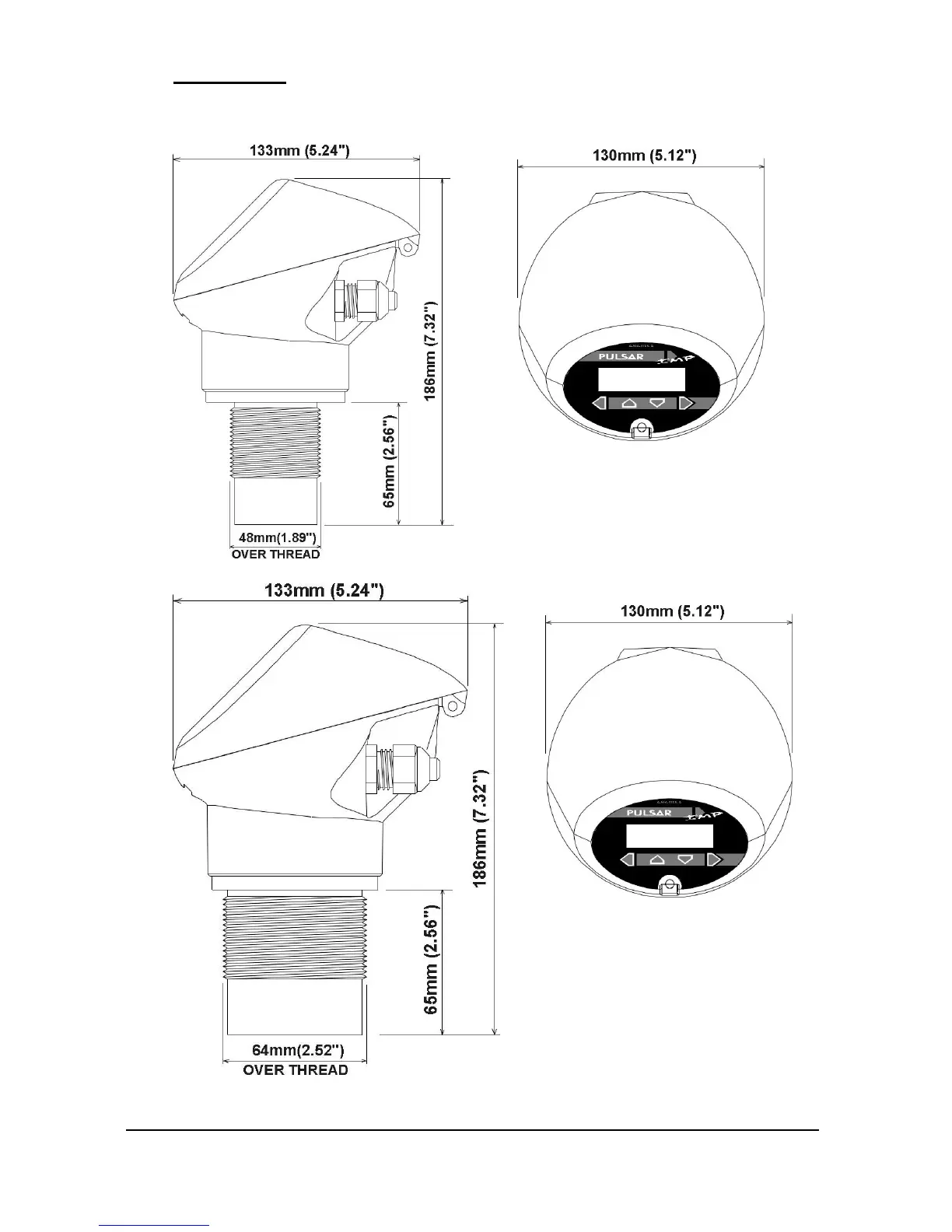

Dimensions
The dimensions of the IMP+
IMP+IMP+
IMP+ are as shown below.
1.5" BSP/NPT – IMP 3 & 6
2" BSP/NPT – IMP 10
