26. February 2024 © Copyright 2024, PROCEQ SA 55

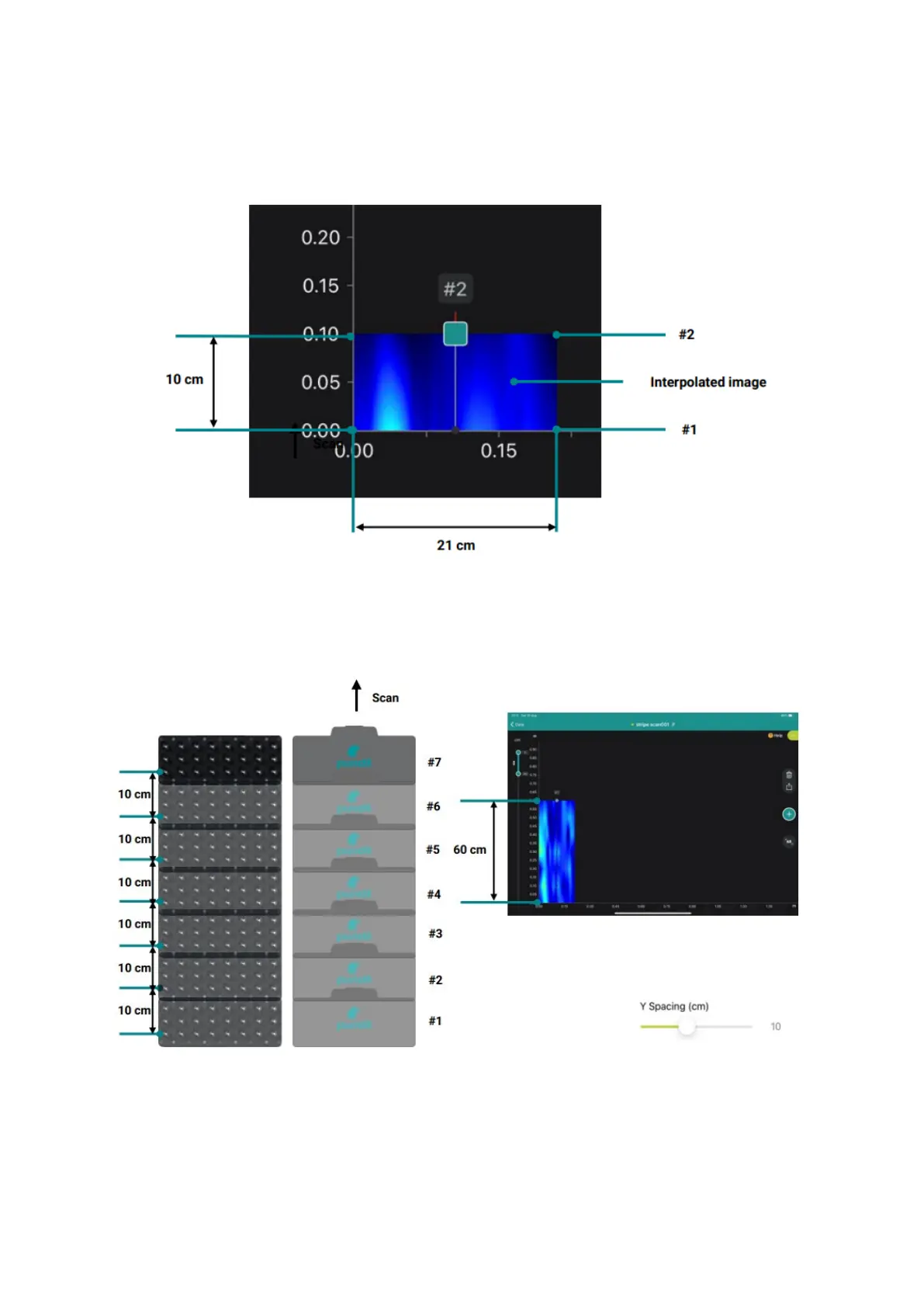

The image that is shown between two consecutive positions where the sensor was located is
calculated via interpolation.
Figure 62: Interpolation of images.
The maximum length of a full 3D matrix scan is equal to 1.5m.
Figure 63: Transversal spacing and C-scan.
